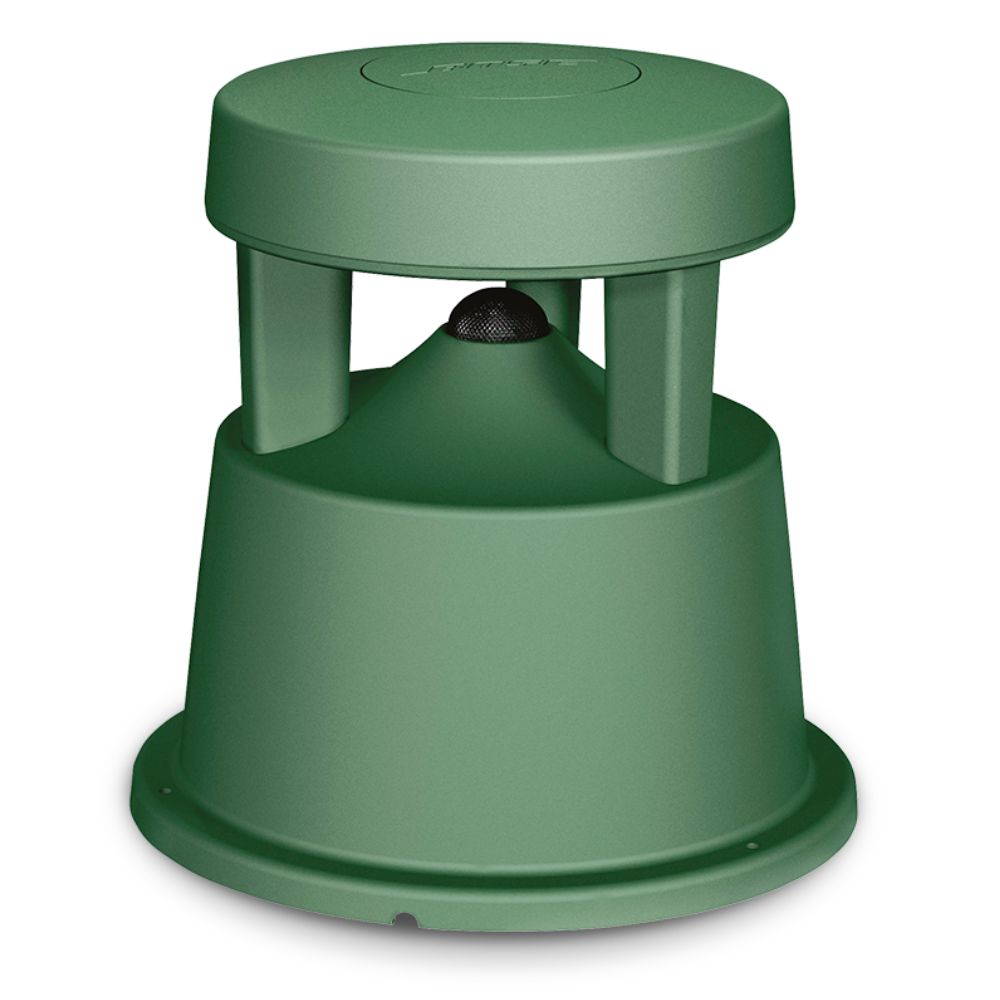

Key Specifications

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

Full-Range

Power Handling

At 70 V / At 100 V:
80 W RMS
320 W Peak
At Low-Z:
65 W RMS
260 W Peak

Constant Voltage / Transformer Taps

70 V / 100 V: 10 / 20 / 40 / 80 W or 8 Ohms Bypass

Impedance

8 Ohms

Full-Range Driver

1x 4.5" / 11.4 cm Cone

Frequency Range

60 Hz to 15 kHz (-10 dB)

Color

Green

Speaker

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

Full-Range

Power Handling

At 70 V / At 100 V:
80 W RMS
320 W Peak
At Low-Z:
65 W RMS
260 W Peak

Constant Voltage / Transformer Taps

70 V / 100 V: 10 / 20 / 40 / 80 W or 8 Ohms Bypass

Impedance

8 Ohms

Enclosure Type

Sealed

Drivers

Full-Range Driver

1x 4.5" / 11.4 cm Cone

Performance

Frequency Range

60 Hz to 15 kHz (-10 dB)

Maximum SPL

107 dB (Continuous)
113 dB (Peak)

Sensitivity

87 dB

Coverage Angle

360° H x 50° V

Recommended High-Pass Filter

60 Hz, 24 dB/Octave

Protections

Overload

Connectivity

Inputs/Outputs

2x Wire Lead Speaker Input

Physical

Color

Green

Construction Material

Polypropylene

Dimensions

14.9 x 14.5" / 37.8 x 36.8 cm

Weight

14.5 lb / 6.6 kg

Packaging Info

Package Weight

15.35 lb

Box Dimensions (LxWxH)

16.7 x 15.8 x 15.8"
