Key Specifications

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

64 W RMS

Constant Voltage / Transformer Taps

70 V: 1 / 2 / 4 / 8 / 16 W or 8 Ohms Bypass
100 V: 2 / 4 / 8 / 16 W or 8 Ohms Bypass

Impedance

16 Ohms (Nominal, Transformer Bypassed)

Full-Range Driver

1x 2.25" / 5.71 cm

Frequency Range

83 Hz to 19 kHz (-10 dB)

Color

Black

Speaker

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

64 W RMS

Constant Voltage / Transformer Taps

70 V: 1 / 2 / 4 / 8 / 16 W or 8 Ohms Bypass
100 V: 2 / 4 / 8 / 16 W or 8 Ohms Bypass

Impedance

16 Ohms (Nominal, Transformer Bypassed)

Enclosure Type

Bass-Reflex

Shielded

No

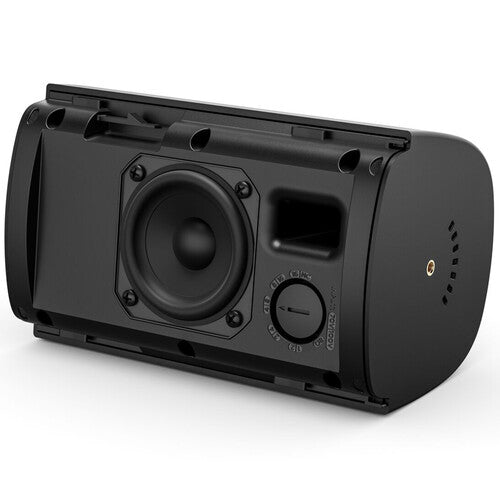

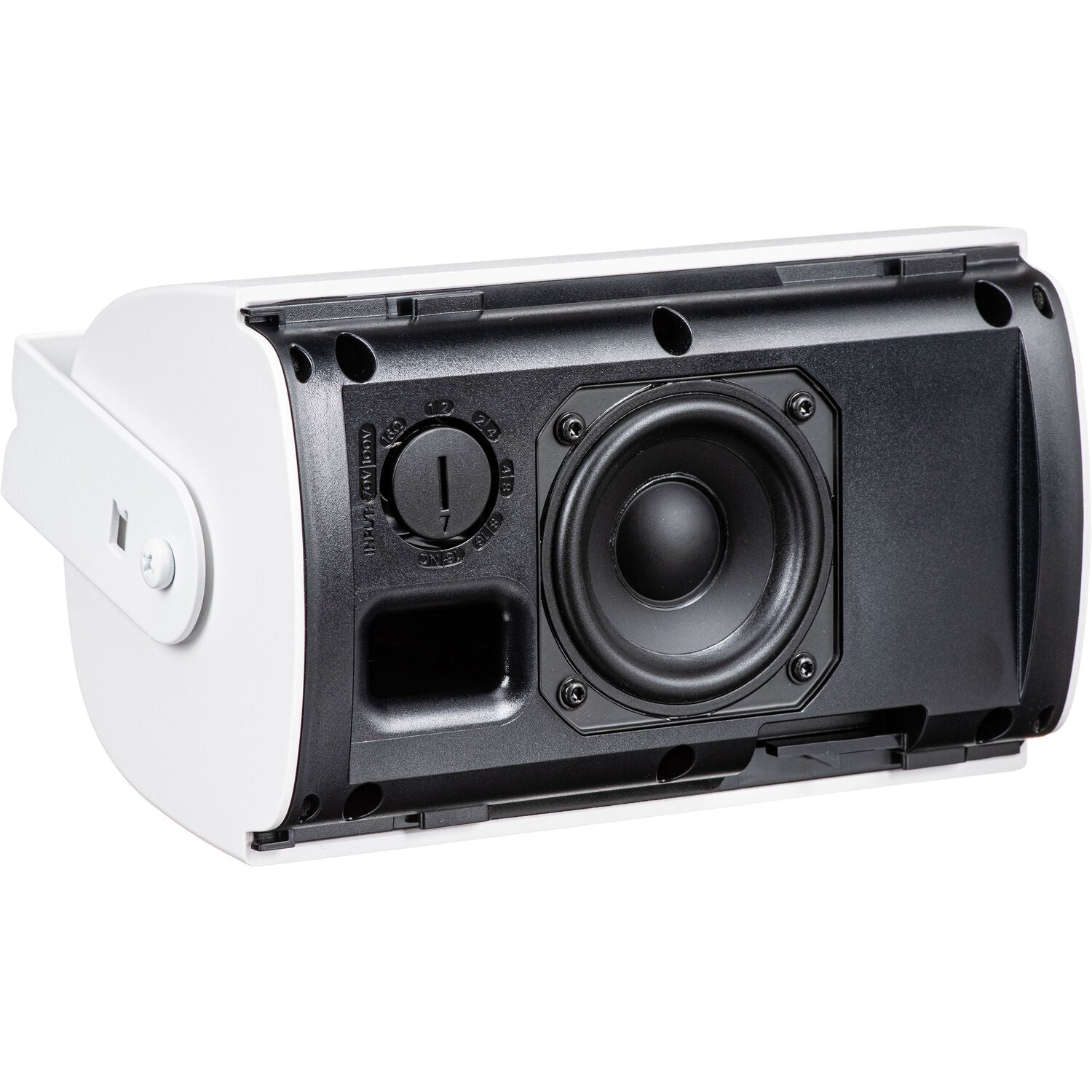

Drivers

Full-Range Driver

1x 2.25" / 5.71 cm

Performance

Frequency Range

83 Hz to 19 kHz (-10 dB)

Frequency Response

95 Hz to 16 kHz (±3 dB)

Maximum SPL

100 dB SPL (Continuous)
106 dB SPL (Peak)

Sensitivity

87 dB SPL

Coverage Angle

145° H x 140° V at 4 kHz
130° at 10 kHz (Conical)

Recommended High-Pass Filter

85 Hz, 24 dB/Octave

Protections

Transducer Overdrive

Connectivity

Inputs/Outputs

1x Block 6-Pin Speaker Input

Maximum Wire Gauge

14 AWG / 2.5 mm

Physical

Environmental Resistance

Dust/Water-Resistant (IP55)

Operating Conditions

-13 to 158°F / -25 to 70°C

Color

Black, White

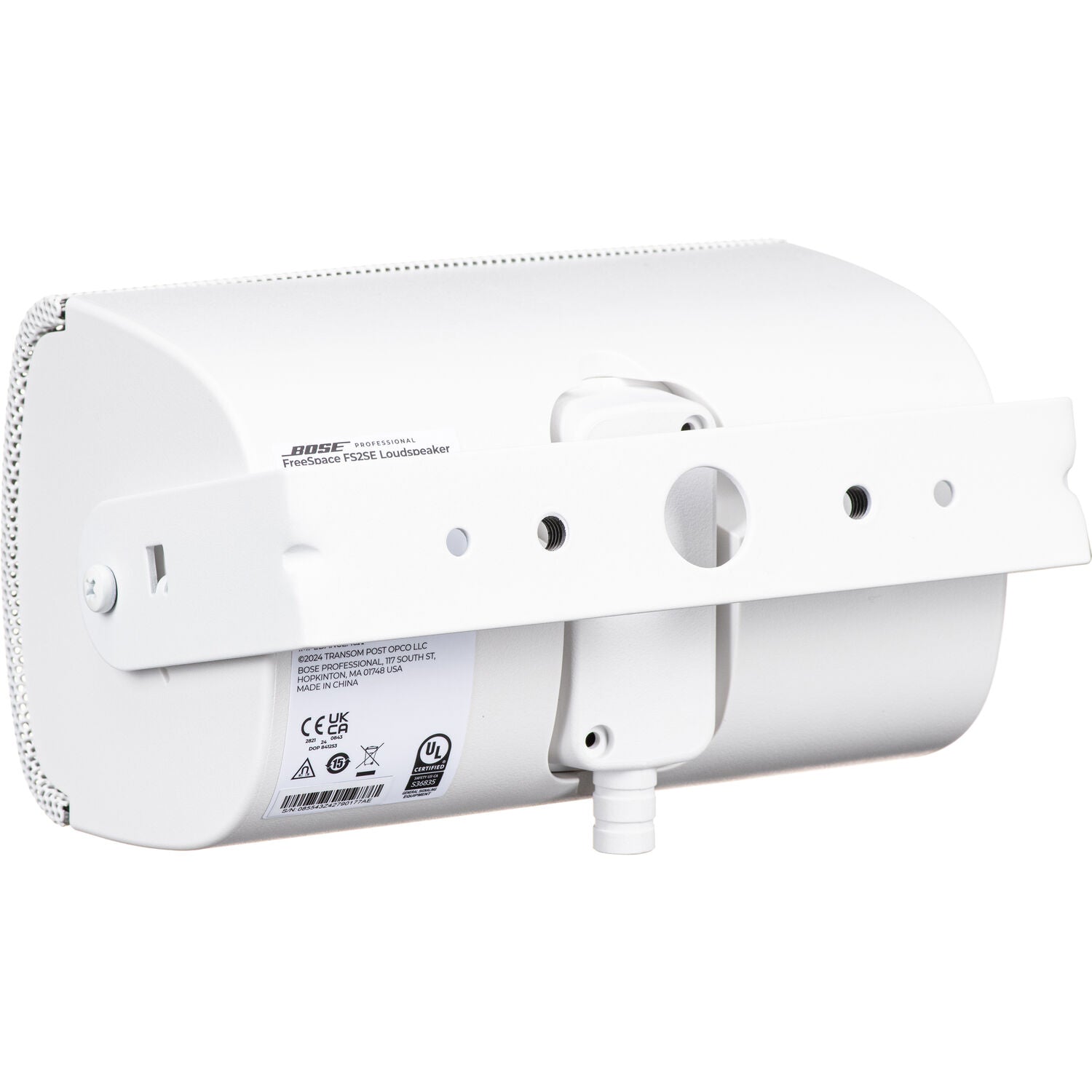

Mounting

Bracket Point (Bottom, Top)

Construction Material

Plastic, Stainless Steel Grille, Steel

Dimensions

7.1 x 4.5 x 4.4" / 18 x 11.4 x 11.2 cm

Weight

3.2 lb / 1.5 kg

Packaging Info

Package Weight

9.285 lb

Box Dimensions (LxWxH)

15.1 x 12.2 x 8"
