Key Specifications

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

Full-Range

Power Handling

50 W RMS
100 W Program
200 W Peak

Constant Voltage / Transformer Taps

70 V: 2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass
100 V: 5 / 10 / 20 / 40 W or 8 Ohms Bypass

Impedance

8 Ohms (Nominal, Transformer Bypassed)

Full-Range Driver

1x 4.5" / 11.43 cm

Frequency Range

70 Hz to 17 kHz (-10 dB)

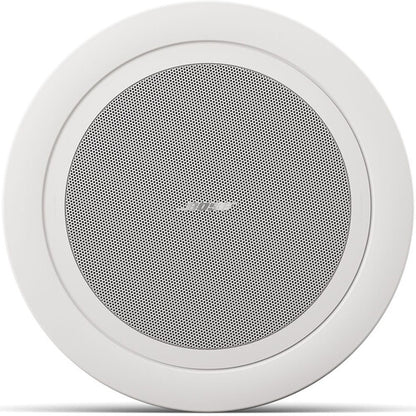

Color

Black, White

Speaker

Active/Passive

Passive

Number of Included Speakers

1

Speaker Configuration

Full-Range

Power Handling

50 W RMS
100 W Program
200 W Peak

Constant Voltage / Transformer Taps

70 V: 2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass
100 V: 5 / 10 / 20 / 40 W or 8 Ohms Bypass

Impedance

8 Ohms (Nominal, Transformer Bypassed)

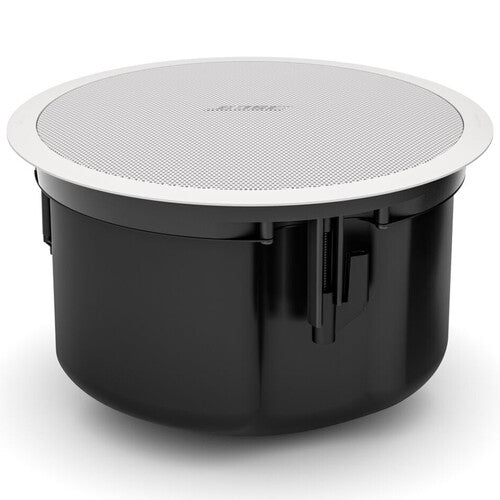

Enclosure Type

Bass-Reflex

Shielded

No

Drivers

Full-Range Driver

1x 4.5" / 11.43 cm

Performance

Frequency Range

70 Hz to 17 kHz (-10 dB)

Frequency Response

80 Hz to 16 kHz (±3 dB)

Maximum SPL

105 dB SPL (Continuous)
111 dB SPL (Peak)

Sensitivity

88 dB SPL

Coverage Angle

115° (Conical)

Recommended High-Pass Filter

70 Hz, 24 dB/Octave

Connectivity

Inputs/Outputs

1x Block 6-Pin Speaker Input

Maximum Wire Gauge

14 AWG / 2.5 mm

Physical

Environmental Resistance

Dust/Water-Resistant (IP55)

Operating Conditions

-13 to 158°F / -25 to 70°C

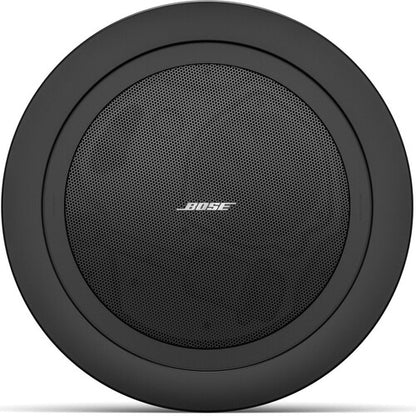

Color

Black

Cutout Size

9.8 x 9.8" / 24.9 x 24.9 cm

Mount Surface Thickness

Up to 1.5" / 3.8 cm

Construction Material

Metal Grille, Plastic, Steel

Dimensions

10.7 x 6.8" / 27.2 x 17.3 cm

Weight

7.6 lb / 3.4 kg
