Key Specifications

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

160 W Peak
80 W Program
40 W RMS

Constant Voltage / Transformer Taps

70 V: 40 / 20 / 10 / 5 / 2.5 W or 8 Ohms Bypass
100 V: 40 / 20 / 10 / 5 W or 8 Ohms Bypass

Impedance

8 Ohms

Full-Range Driver

1x 4.5" / 114.3 mm

Frequency Range

70 Hz to 17 kHz (-10 dB)

Color

Black, White

Speaker

Active/Passive

Passive

Number of Included Speakers

2

Speaker Configuration

Full-Range

Power Handling

160 W Peak
80 W Program
40 W RMS

Constant Voltage / Transformer Taps

70 V: 40 / 20 / 10 / 5 / 2.5 W or 8 Ohms Bypass
100 V: 40 / 20 / 10 / 5 W or 8 Ohms Bypass

Impedance

8 Ohms

Enclosure Type

Sealed

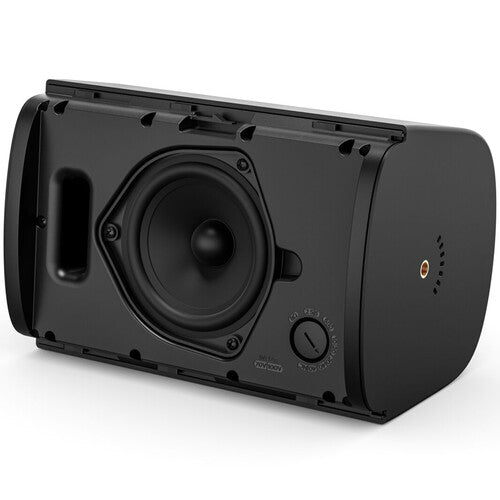

Drivers

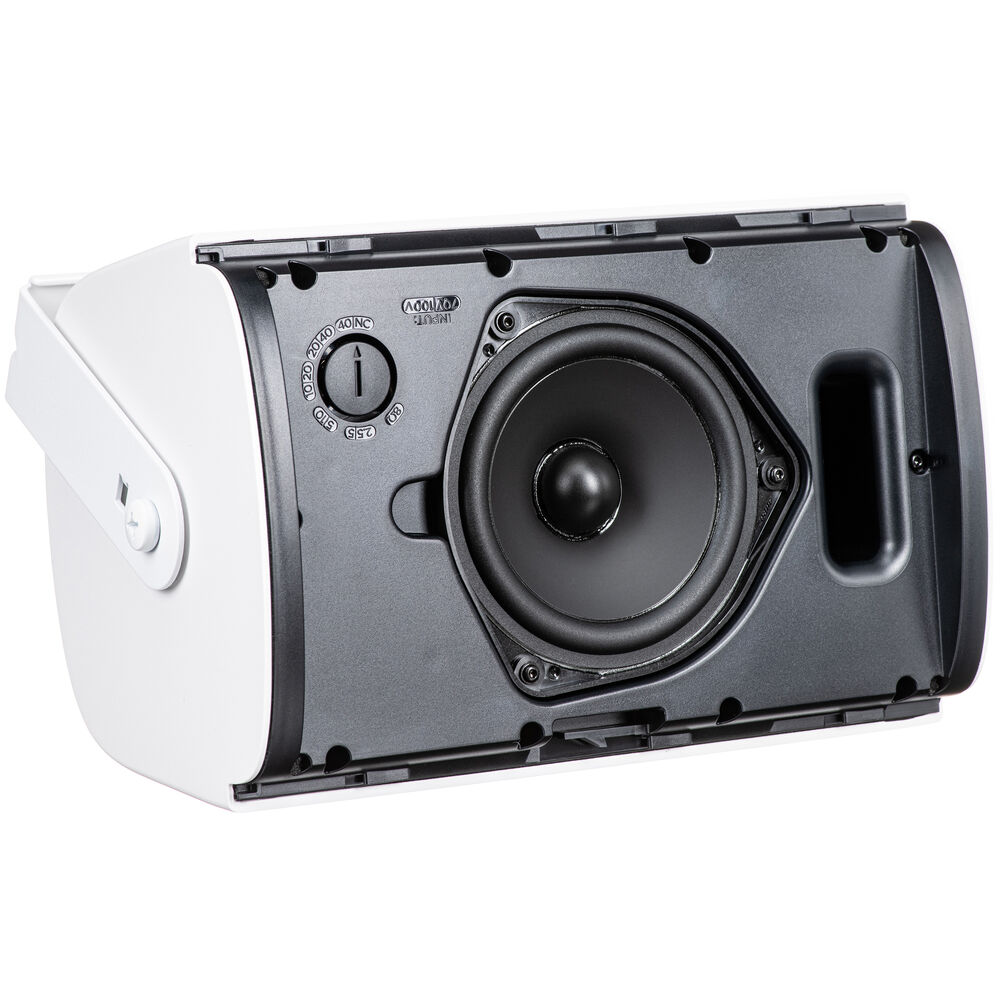

Full-Range Driver

1x 4.5" / 114.3 mm

Performance

Frequency Range

70 Hz to 17 kHz (-10 dB)

Frequency Response

80 Hz to 16 kHz (-3 dB)

Maximum SPL

105 dB (Peak)

Sensitivity

89 dB

Coverage Angle

130° H x 125° V at 4 kHz
105° H x 100° V at 10 kHz

Connectivity

Inputs/Outputs

Block 6-Pin Speaker Input/Thru

Maximum Wire Gauge

14 AWG / 2.5 mm

Physical

Certifications

CSA C22.1 Section 32, EN 54-24:2008, NFPA 70 / 72, UL 1480(A)

Environmental Resistance

Weather-Resistant (IP55)

Operating Conditions

-13 to 158°F / -25 to 70°C

Color

Black

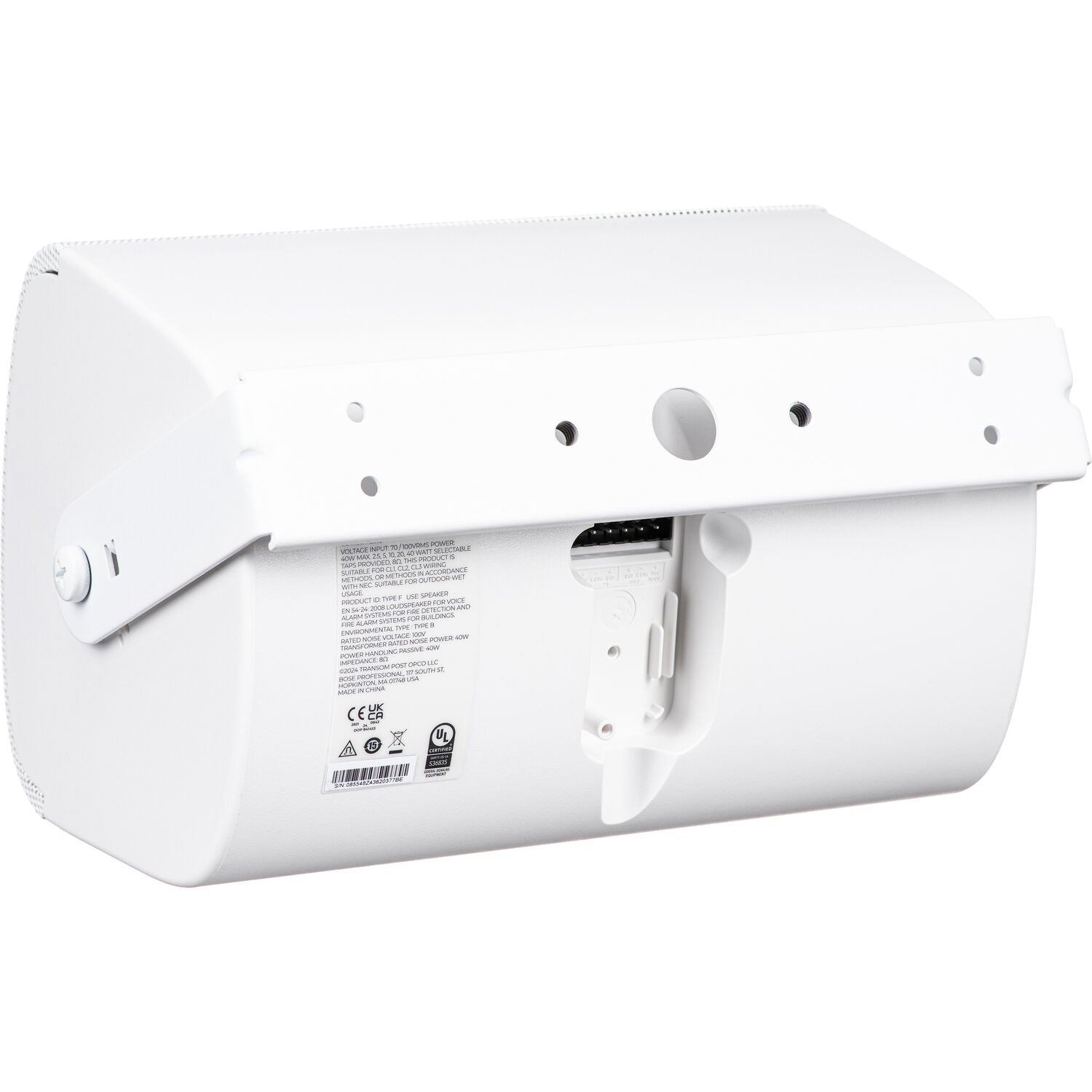

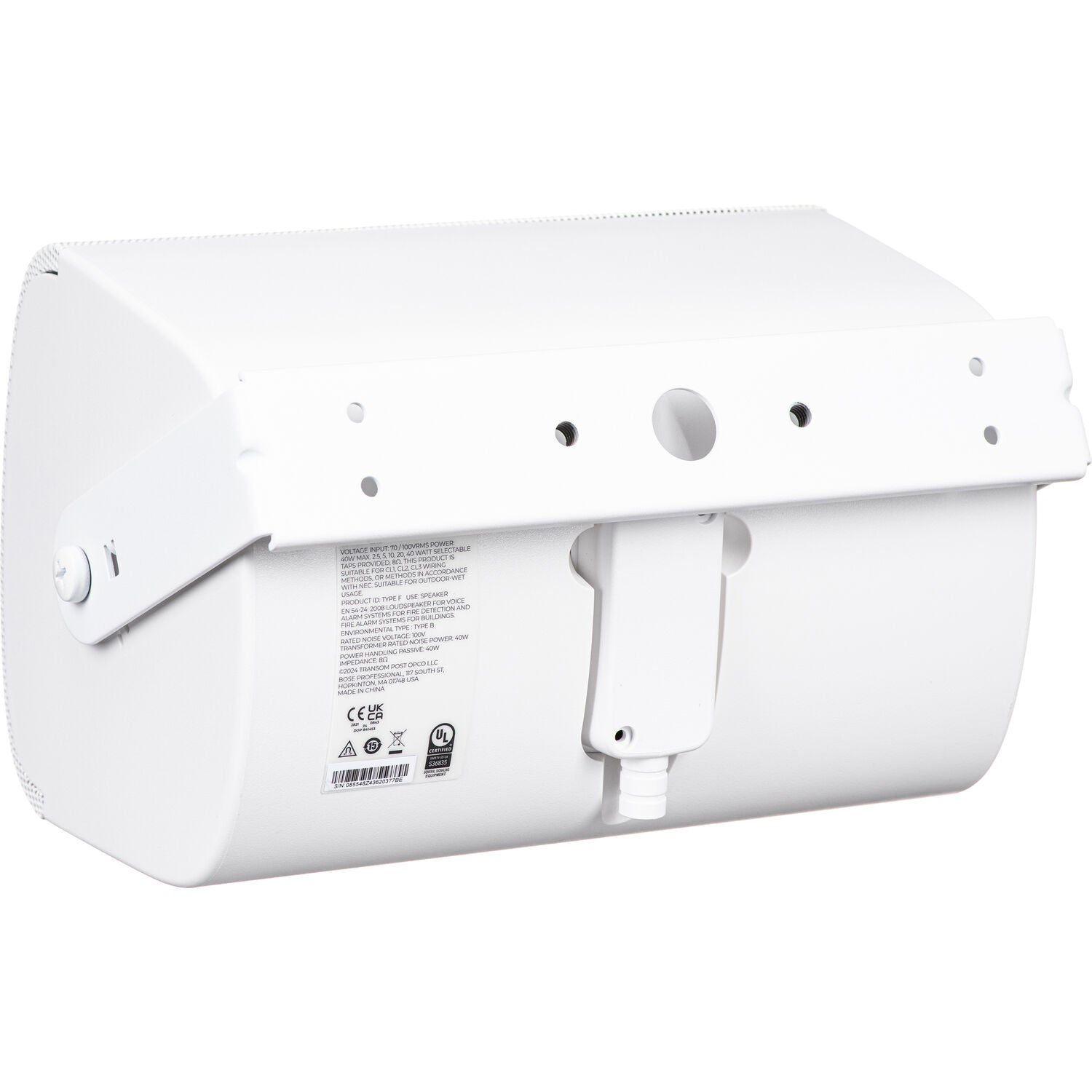

Mounting

1x Bracket Point (Each Side)

Construction Material

Plastic

Dimensions

10.7 x 7.7 x 6.7" / 271.8 x 195.6 x 170.2 mm

Weight

6.8 lb / 3.1 kg (with Bracket)

Packaging Info

Package Weight

19.885 lb

Box Dimensions (LxWxH)

22.3 x 14.5 x 11.2"
