Key Specifications

Form Factor/Type

Rackmount (Rack-Mountable with Included Hardware)

Number of Mixer Inputs

4

Number of Amplifier Channels

2

Load Impedance/Voltage Support

4 / 8 Ohms

Power Rating per Channel

2× 120 W at 4 Ohms
2× 60 W at 8 Ohms

Amplifier Class

Class-D

Performance

Protections

Short Circuit, Thermal

Frequency Response

20 Hz to 20 kHz +0/-3 dB (at 1 W)

THD/Distortion

≤ 0.5% THD+N (at Rated Power)

Crosstalk

≤ -58 dBu (1 kHz, Below Rated Power)

Signal Processing

AD/DA Conversion

24-Bit / 48 kHz

DSP

Yes

Audio Delay

No

EQ & Filters

2-Band EQ

Dynamics

Ducking/Muting, Output Limiter

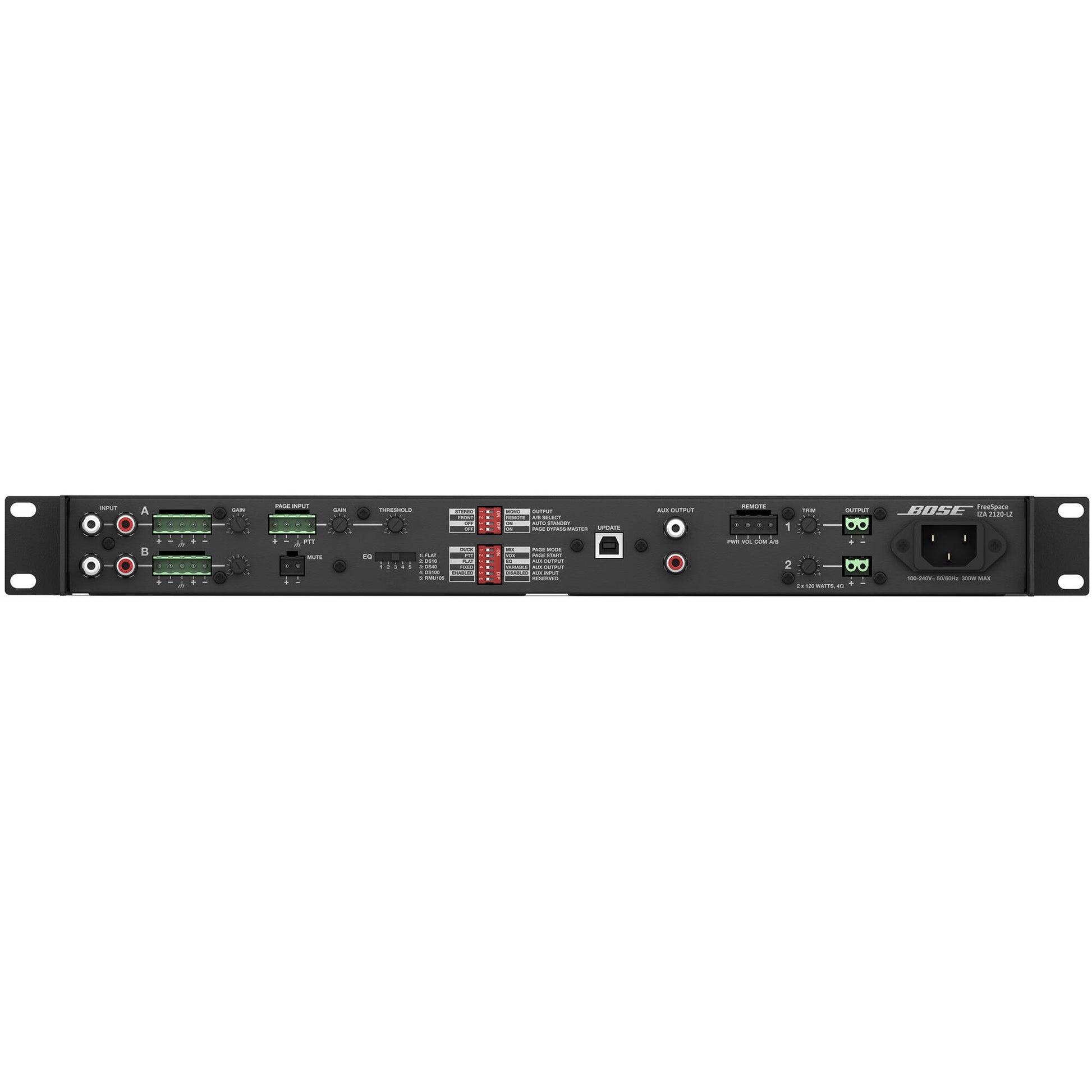

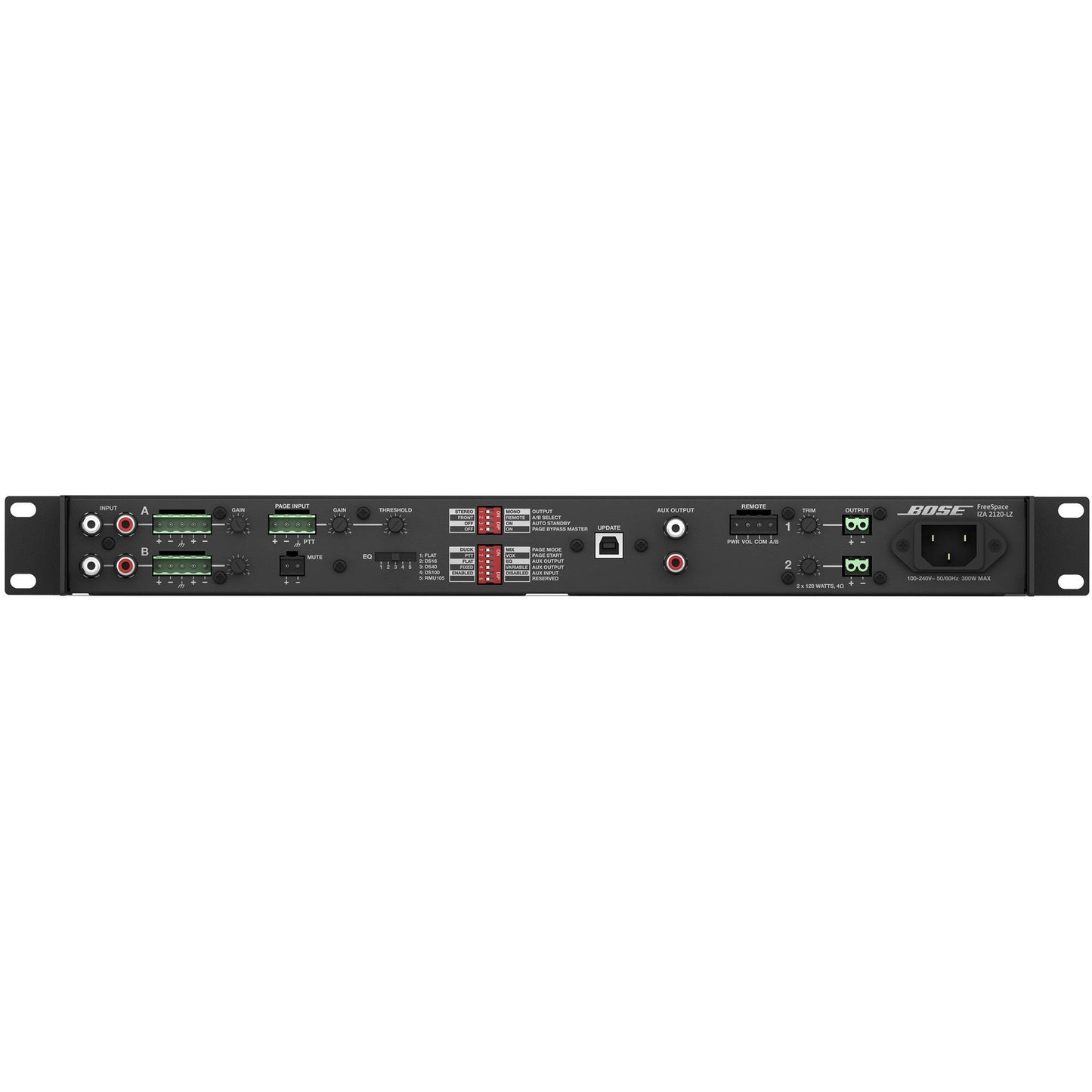

Connectivity

Analog Audio I/O

2× Block 2-Pin Speaker Output
2× Stereo 2RCA Unbalanced Line Input
2× Block 5-Pin Balanced Line Input
1× Block 4-Pin Page Input
2× Stereo 2RCA Aux Output

Digital Audio I/O

No

Network I/O

No

Other I/O

1× Block 4-Pin GPIO

USB I/O

1× USB-B (Service/Update)

Phantom Power

No

Wireless

No

Power

Input Power

100 to 240 VAC, 60 / 50 Hz

AC Power Connector

1× IEC / NEMA 5-15

Current Consumption

6.6 to 12.6 A (Max)

Power Consumption

24 W (Idle)
300 W (Max)

Physical

Display

Single-LED Indicators Only

Rackmount Size

1 U

Cooling

Fan

Dimensions

19 × 12.8 × 1.8" / 482.6 × 325.1 × 45.7 mm

Weight

9 lb / 4.1 kg

Packaging Info

Package Weight

12.415 lb

Box Dimensions (L×W×H)

23.6 × 16.3 × 4.5"
