Key Specifications

Number of Analog Input Channels

16 (16 Mono / 0 Stereo)

Number of Mic Preamps

16

Analog Output Channels

1x Stereo Master Output
1x Mono Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Bus/Subgroup Output
3x Mono Aux Send Output
16x Mono Direct Output
1x Stereo Headphone Output

Mix Routing

Bus/Subgroup / Main Mix

EQ

3-Band EQ

Built-In Effects

10x Reverb
6x Delay
Flanger
Chorus
Phaser
Tremolo
Rotary Speaker
Vibrato

Wireless

No

Rack Mountable

No

Mixer

Faders & Level Adjustment

16x 3.9" / 100 mm Channel Fader

Meters

2x 10-Segment LED

Signal Processing

Gain / Trim Range

0 dB to 60 dB

EQ Parameters

High: ±15 dB at 12 kHz
Mid: ±15 dB at 150 Hz to 3.5 kHz, 1.5 Q
Low: ±15 dB at 80 Hz

Graphic EQ

No

Filters

High-Pass: 100 Hz, 18 dB/Octave

Solo/Mute

Solo-in-Place/AFL, Mute, PFL per Input Channel
Solo-in-Place/AFL per Bus

Performance

Frequency Response

Mic/Line Input to Output: 20 Hz to 20 kHz ±1 dB

Max Input Level

Mic Input: +15 dBu
Line Input: +30 dBu (Mono)
Line Input: +30 dBu (Stereo)

Headphone Output Power

300 mW into 150 Ohms

I/O Impedance

Mic Input: 2 Kilohms
Line Input: 10 Kilohms
Stereo Input: 65 Kilohms (Stereo), 35 Kilohms (Mono)
Output: 150 Ohms (Balanced), 75 Ohms (Unbalanced)

Noise Floor

< -84 dBu (Master Level at Unity, Channel Level at -∞)

THD

< 0.09% (+14 dBu, 1 kHz)

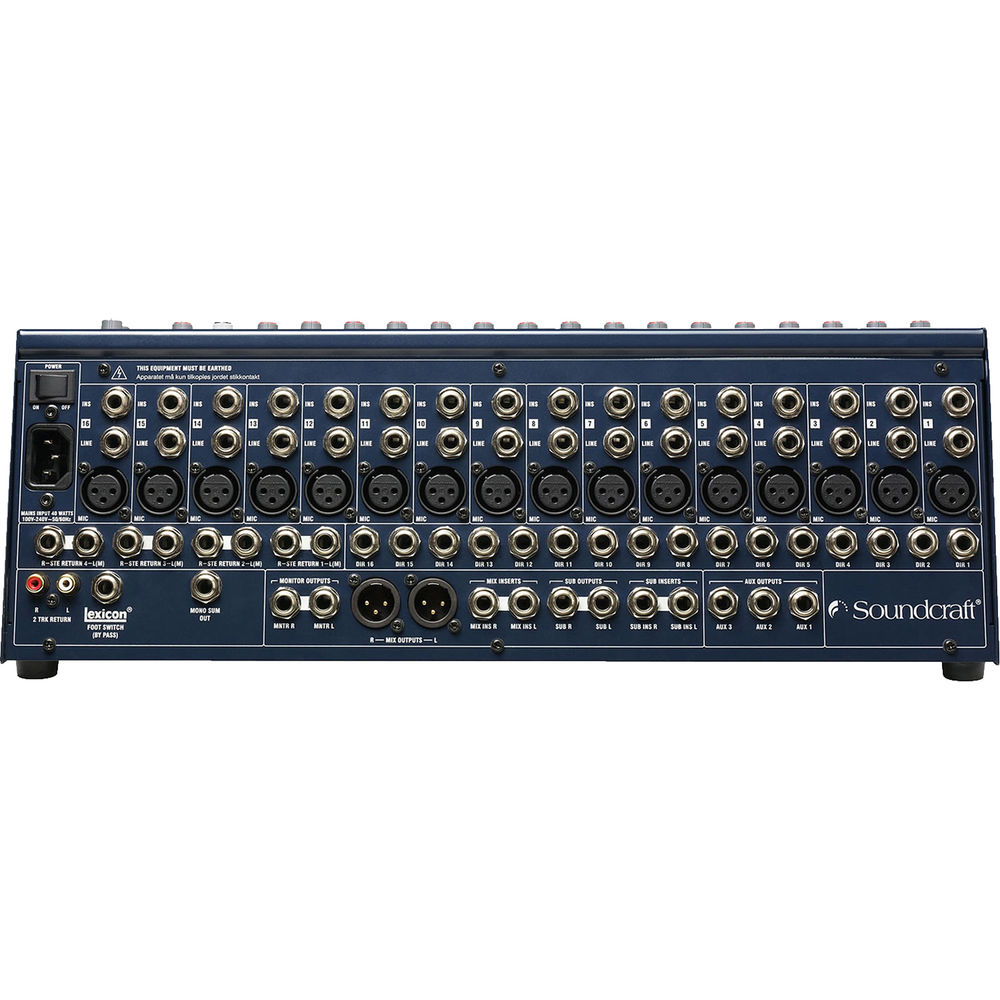

Connectivity

Analog Inputs

1x 1/4" TS Footswitch Input
1x Stereo RCA Coaxial Unbalanced 2-Track Return
16x 1/4" TRS Unbalanced Channel Insert
2x 1/4" TRS Unbalanced Sub Insert
2x 1/4" TRS Unbalanced Mix Insert
16x XLR 3-Pin Balanced Mic Input
16x 1/4" TRS Balanced Line Input
8x 1/4" TRS Balanced Aux Return (4 Stereo Pairs)

Analog Outputs

16x 1/4" TRS Balanced Direct Output
2x 1/4" TRS Balanced Monitor Output (1 Stereo Pair)
1x 1/4" TRS Headphone Output
2x 1/4" TRS Balanced Subgroup Output (1 Stereo Pair)
2x XLR 3-Pin Balanced Main Output
1x 1/4" TRS Balanced Main Output
3x 1/4" TRS Balanced Aux Send

Phantom Power

+48 V, Selectable On/Off (on 8 Channels)

Digital I/O

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Operating Conditions

41 to 104°F / 5 to 40°C

Dimensions

17.5 x 6.2 x 17.4" / 44.3 x 15.7 x 44.2 cm (Excluding Rack Rails, Including Feet)

Packaging Info

Package Weight

26.32 lb

Box Dimensions (L × W × H)

22.6 x 21.1 x 10.5"
