Key Specifications

Form Factor / Type

Rackmount

Number of Amplifier Channels

4

Load Impedance / Voltage Support

2 / 4 / 8 / 16 Ohms, 25 / 70 / 100 V

Power Rating per Channel

4× 500 W Peak at 2/4 Ohms, 4× 250 W at 8 Ohms, 4× 320 W Peak at 25 V

Channel Bridging & Power Sharing

2× 1000 W Peak Bridged at 4 Ohms, 2× 500 W Bridged at 8 Ohms, 2× 1000 W Peak Bridged at 70/100 V

Amplifier Class

Class-D

Performance

Protections

DC Fault, Overload, Short Circuit, Thermal, Undervoltage

Frequency Response

20 Hz to 20 kHz ±0.5 dB (8 Ohms, -3 dB Below Rated Power)

SNR / Noise

>108 dBA SNR (at 8 Ohms)

THD / Distortion

≤ 0.05% THD+N

Signal Processing

DSP

Yes

Audio Delay

No

Dynamics

Compressor, Limiter

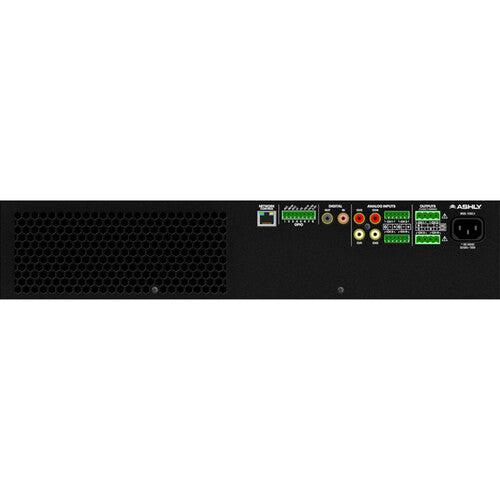

Connectivity

Analog Audio I/O

2× Block 6-Pin Balanced Line/Mic Input
4× RCA Unbalanced Line Input
2× Block 4-Pin Speaker Output

Digital Audio I/O

1× TOSLINK Optical S/PDIF Input
1× TOSLINK Optical S/PDIF Output

Network I/O

1× RJ45 Ethernet

Other I/O

1× Block 8-Pin GPIO

USB I/O

No

Phantom Power

No

Wireless

Wi-Fi

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1× IEC 15 A / NEMA 5-15

Power Consumption

0.5 W (Standby)
1100 W (Typical)

Physical Specifications

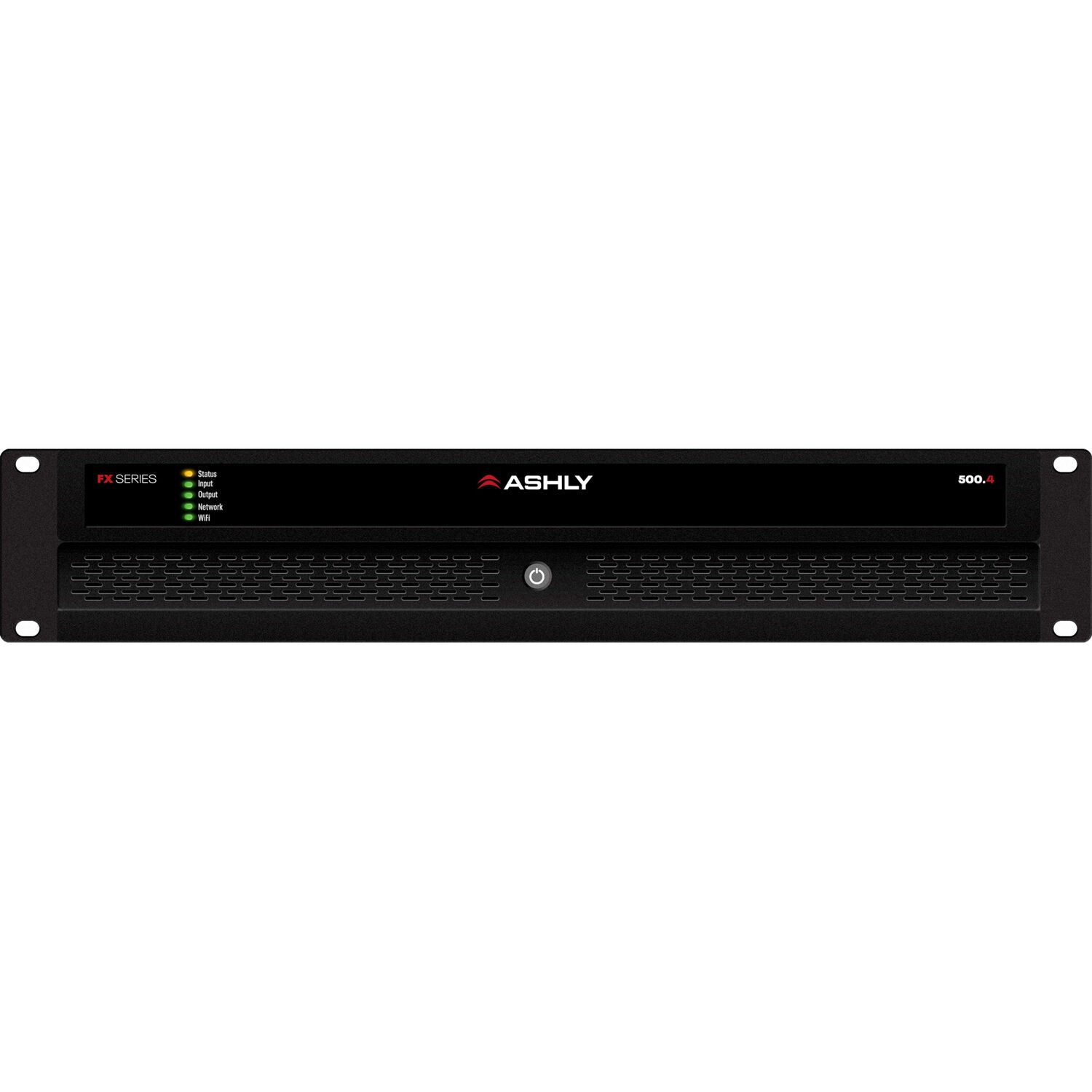

Display

Single-LED Indicators Only

Rackmount Size

2 U

Cooling

2× Fan (Variable Speed)

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

19 × 12.6 × 3.5" / 48.3 × 32 × 8.9 cm

Weight

16.5 lb / 7.5 kg

Packaging Information

Package Weight

20.765 lb

Box Dimensions (L × W × H)

22.7 × 17.3 × 10.2"
