Key Specifications

Form Factor/Type

Rackmount

Number of Amplifier Channels

4

Load Impedance/Voltage Support

4 / 8 / 16 Ohms
25 / 70 / 100 V

Power Rating per Channel

4 × 60 W Peak at 4/8 Ohms
4 × 60 W Peak at 25 V

Channel Bridging & Power Sharing

2 × 120 W Peak Bridged at 4/8 Ohms
2 × 120 W Peak Bridged at 70/100 V

Amplifier Class

Class-D

Performance

Protections

DC Fault, Overload, Short Circuit, Thermal, Undervoltage

Frequency Response

20 Hz to 20 kHz ±0.5 dB (8 Ohms, -3 dB Below Rated Power)

SNR/Noise

>106 dBA SNR (at 8 Ohms)

THD/Distortion

≤0.05% THD+N

Signal Processing

DSP

Yes

Audio Delay

No

Dynamics

Compressor, Limiter

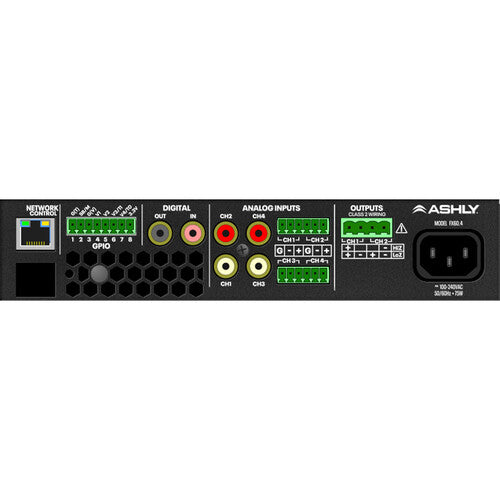

Connectivity

Analog Audio I/O

2 × Block 6-Pin Balanced Line/Mic Input
4 × RCA Unbalanced Line Input
2 × Block 4-Pin Speaker Output

Digital Audio I/O

1 × TOSLINK Optical S/PDIF Input
1 × TOSLINK Optical S/PDIF Output

Network I/O

1 × RJ45 Ethernet

Other I/O

1 × Block 8-Pin GPIO

USB I/O

No

Phantom Power

No

Wireless

Wi-Fi

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1 × IEC 15 A / NEMA 5-15

Power Consumption

0.5 W (Standby)
75 W (Typical)

Physical

Display

Single-LED Indicators Only

Rackmount Size

1 U (with Non-Included Hardware, 1/2-Rack)

Cooling

1 × Fan (Variable Speed)

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

12.6 × 8.7 × 1.8" / 32 × 22.1 × 4.6 cm

Weight

6.2 lb / 2.8 kg

Packaging Information

Package Weight

5.73 lb

Box Dimensions (L × W × H)

19.4 × 11.6 × 3.5"
