Key Specifications

Form Factor/Type

Rackmount

Number of Amplifier Channels

2

Load Impedance/Voltage Support

2 / 4 / 8 / 16 Ohms
25 / 70 / 100 V

Power Rating per Channel

2x 750 W Peak at 2/4 Ohms
2x 375 W at 8 Ohms
2x 320 W Peak at 25 V

Channel Bridging & Power Sharing

1x 1500 W Peak Bridged at 4 Ohms
1x 1500 W Bridged at 8 Ohms
1x 1500 W Peak Bridged at 70/100 V

Amplifier Class

Class-D

Performance

Protections

DC Fault, Overload, Short Circuit, Thermal, Undervoltage

Frequency Response

20 Hz to 20 kHz ±0.5 dB (8 Ohms, -3 dB Below Rated Power)

SNR/Noise

> 108 dBA SNR (at 8 Ohms)

THD/Distortion

≤ 0.05% THD+N

Signal Processing

DSP

Yes

Audio Delay

No

Dynamics

Compressor, Limiter

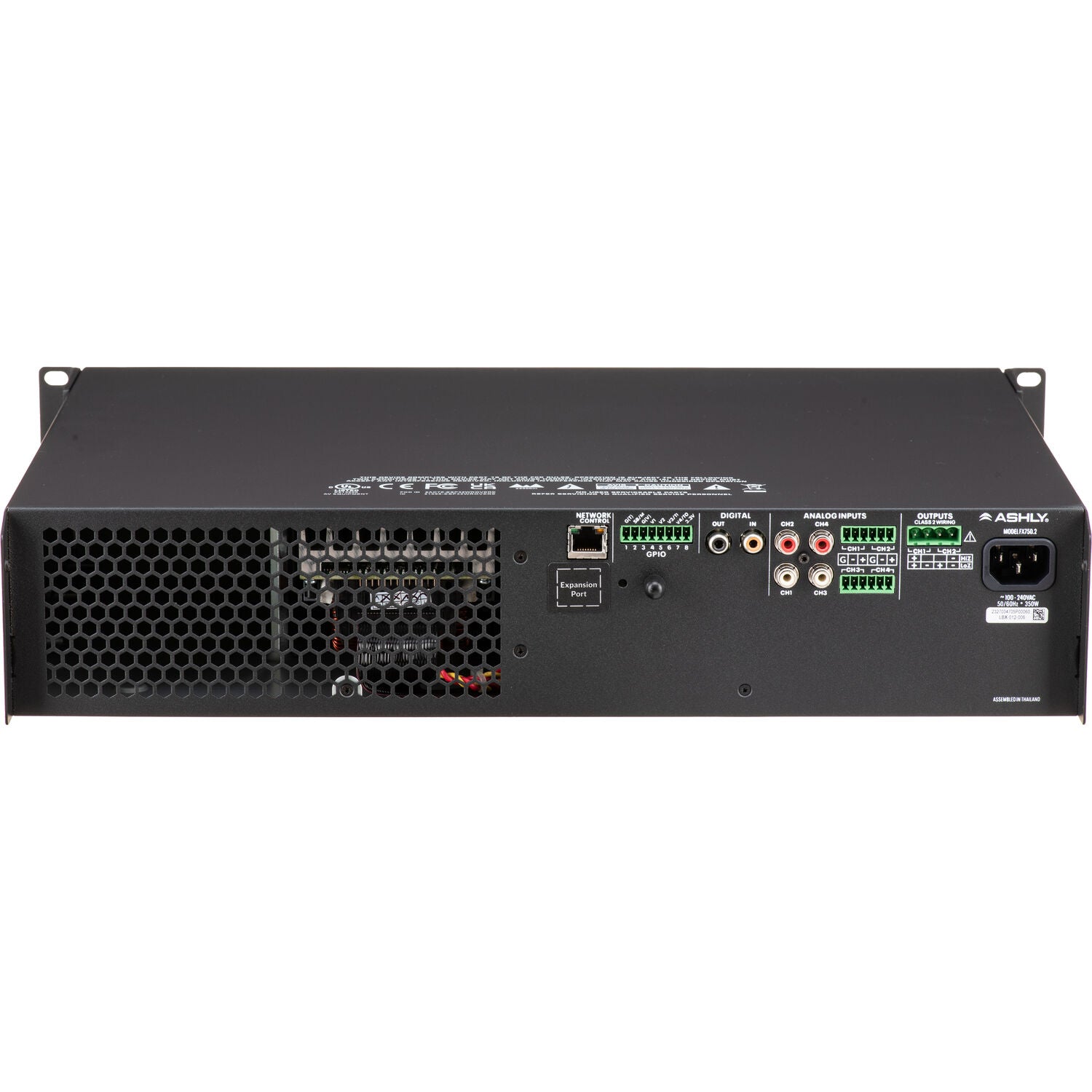

Connectivity

Analog Audio I/O

2x Block 6-Pin Balanced Line/Mic Input
4x RCA Unbalanced Line Input
1x Block 4-Pin Speaker Output

Digital Audio I/O

1x TOSLINK Optical S/PDIF Input
1x TOSLINK Optical S/PDIF Output

Network I/O

1x RJ45 Ethernet

Other I/O

1x Block 8-Pin GPIO

USB I/O

No

Phantom Power

No

Wireless

Wi-Fi

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power Connector

1x IEC 15 A / NEMA 5-15

Power Consumption

0.5 W (Standby)
550 W (Typical)

Physical

Display

Single-LED Indicators Only

Rackmount Size

2 U

Cooling

2x Fan (Variable Speed)

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

19 x 12.6 x 3.5" / 48.3 x 32 x 8.9 cm

Weight

13.3 lb / 6 kg

Packaging Information

Package Weight

17.415 lb

Box Dimensions (L × W × H)

22.6 x 17.5 x 10.7"
