Key Specifications

Product

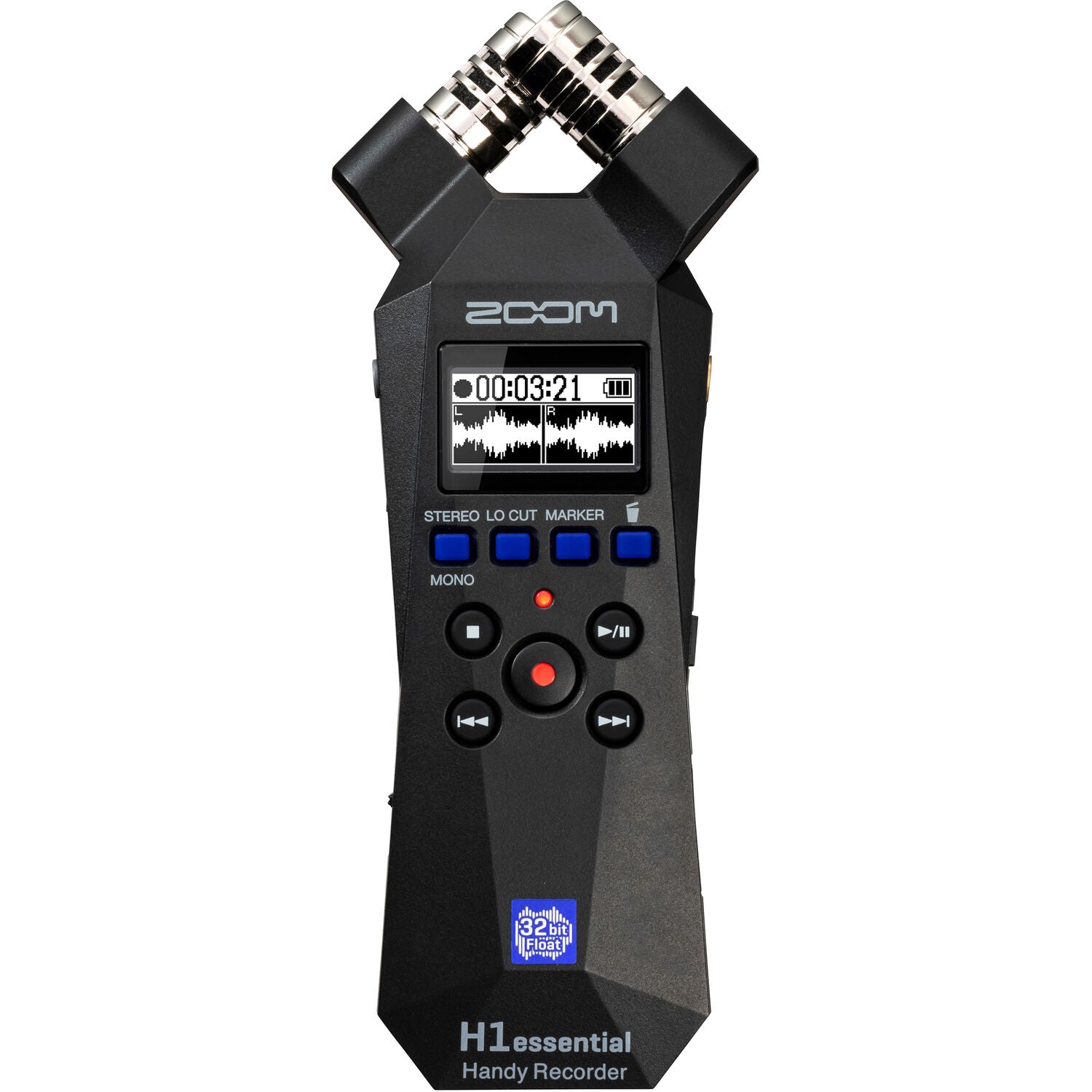

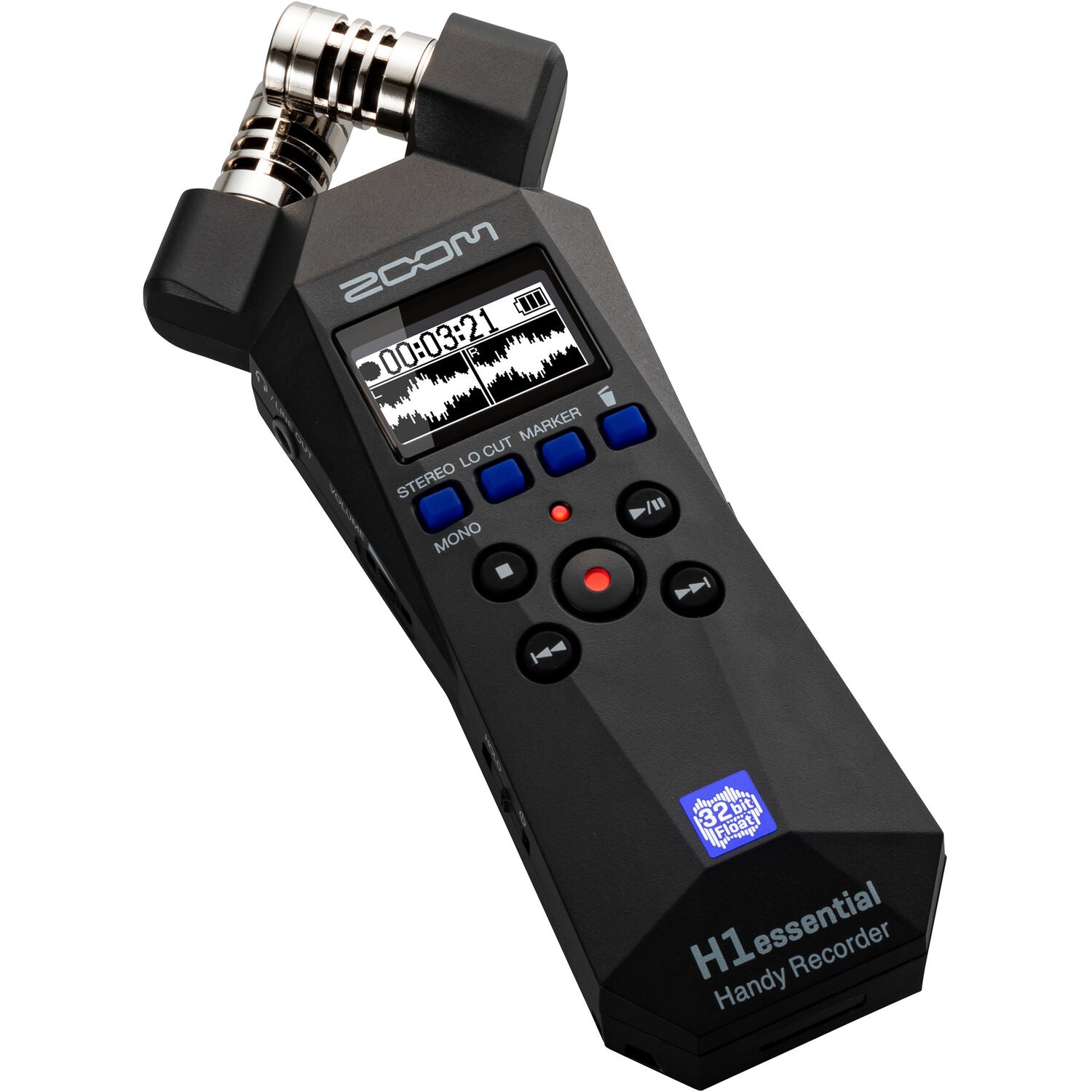

Zoom H1 essential

Form Factor

Handheld Recorder

Number of Channels

2

Number of Tracks

2

Maximum Sampling Rate

96 kHz / 32-Bit Float

Microphone

Built-In Stereo Pair

Audio Interface Capability

Stereo Only

Timecode

No Timecode Support

Analog I/O

1/8" (3.5 mm) / 1/8" (3.5 mm) Headphone

Bias/Plug-In & Phantom Power

2.5 V Bias/Plug-In Power
No Phantom Support

Digital Audio I/O

No

Primary Use Applications

Audio-for-Video, Dictation & Transcription, Music Recording, Podcasting

Number of Input Channels

2

Number of Microphone Inputs

1

Display

OLED

Built-In Speaker

Yes: 1 W Mono

Special Features

Overdubbing

Mic Configuration

X/Y

Polar Pattern

Cardioid

Maximum SPL

120 dB

Sensitivity

-37 dB

Audio File Formats

BWF, iXML, WAV

Sample Rates

44.1 to 96 kHz

Bit Depth

32-Bit Float

Signal Processing & FX

Speed Change

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]

Internal Storage

No

Analog Audio I/O

1x 1/8" / 3.5 mm TRS Mic/Line Input
1x 1/8" / 3.5 mm TRS Line/Headphone Output

Sync I/O

No

USB

1x USB-C

Wireless

No

Mobile App Compatible

No

Headphone Output Power

20 mW per Channel into 32 Ohms

Power Options

Battery, USB Bus Power, AC/DC Power Adapter

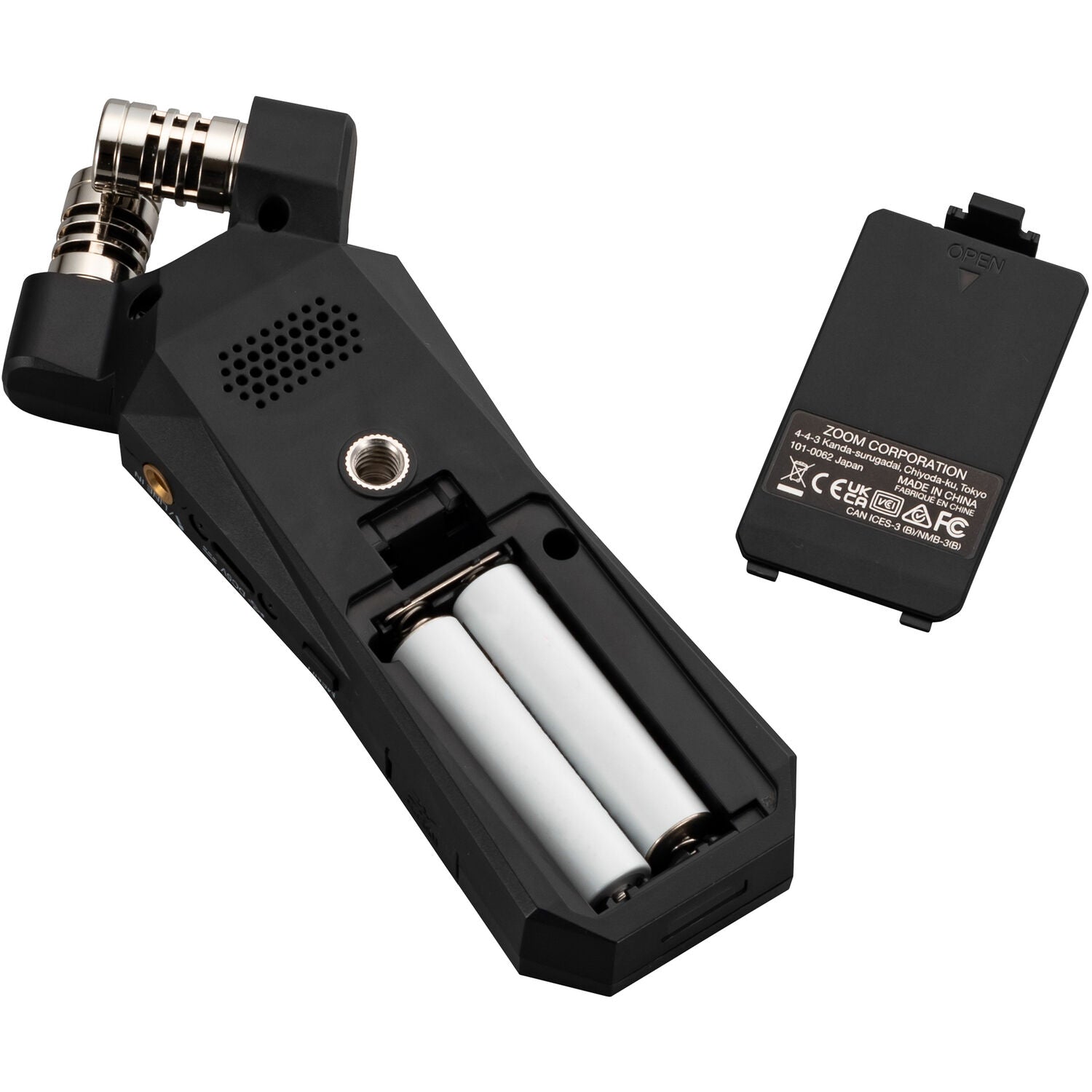

Battery Type

2x AAA (Not Included)

Battery Runtime

Up to 10 Hours, Dependent on Settings and Battery Type

AC/DC Power Adapter

5 VDC at 1 A (Included)

Mounting Options

1/4"-20 Female

Dimensions

2.1 x 1.1 x 5.4" / 5.4 x 2.9 x 13.7 cm

Weight

3.2 oz / 92 g (with Batteries)

Package Weight

0.325 lb

Box Dimensions (L × W × H)

6.9 x 3.7 x 1.4"
