HD75

75 watts of output power
12” HyDrive paper and aluminum cone driver
1” tweeter

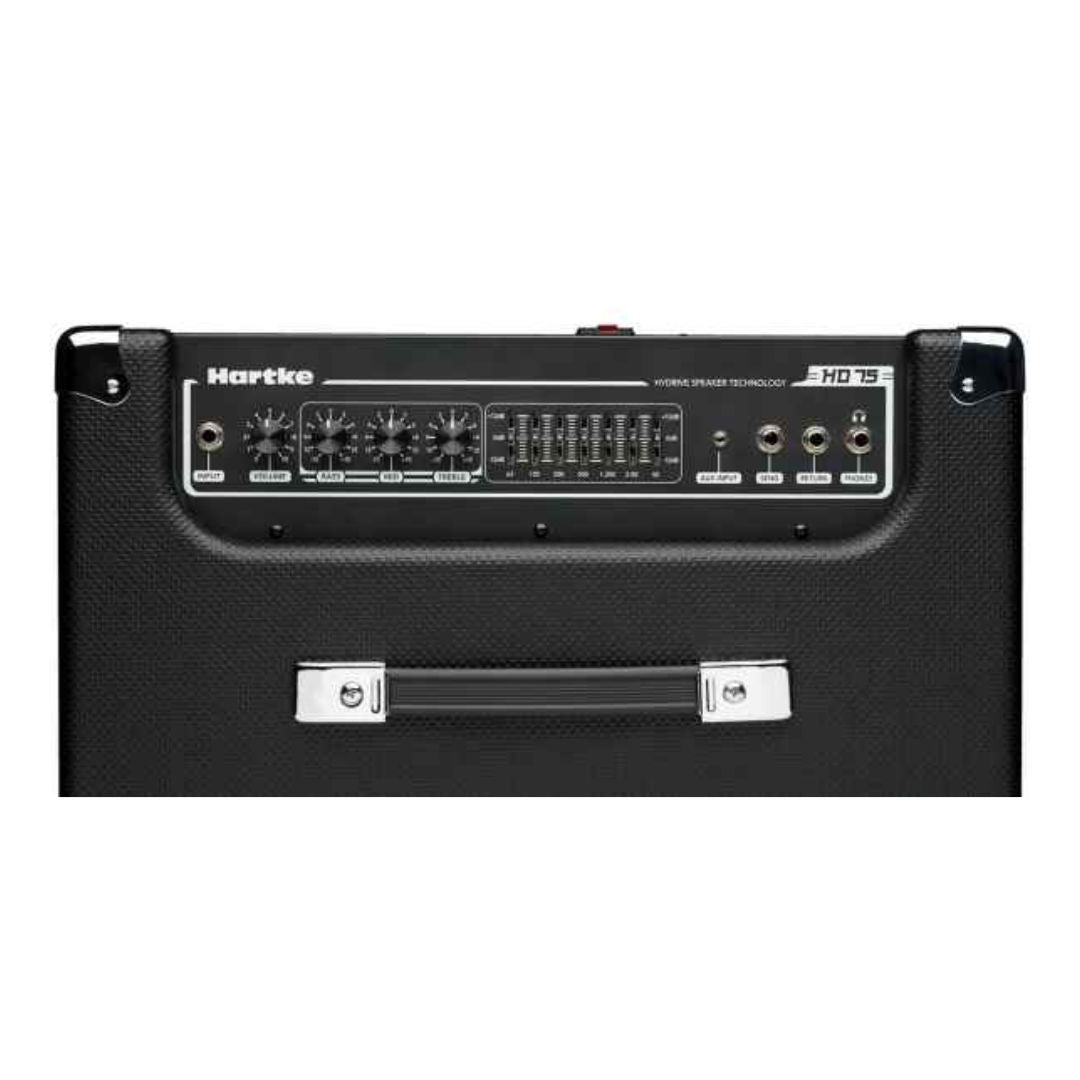

Top-mounted amplifier with Volume, Bass, Mid and Treble controls
7-band graphic EQ
1⁄4” input for active and passive bass guitars
1/8” stereo Aux input for stereo line level devices (MP3 players, drum machines, etc.)

HARTKE

₱25,990.00 VAT INC.

₱25,990.00

SOLD BY: PIECE/S

Product Code: SKU:HRKE-HD75-CHN-0909

75 watts of output power
12” HyDrive paper and aluminum cone driver
1” tweeter
Top-mounted amplifier with Volume, Bass, Mid and Treble controls
7-band graphic EQ
1⁄4” input for active and passive bass guitars
1/8” stereo Aux input for stereo line level devices (MP3 players, drum machines, etc.)

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

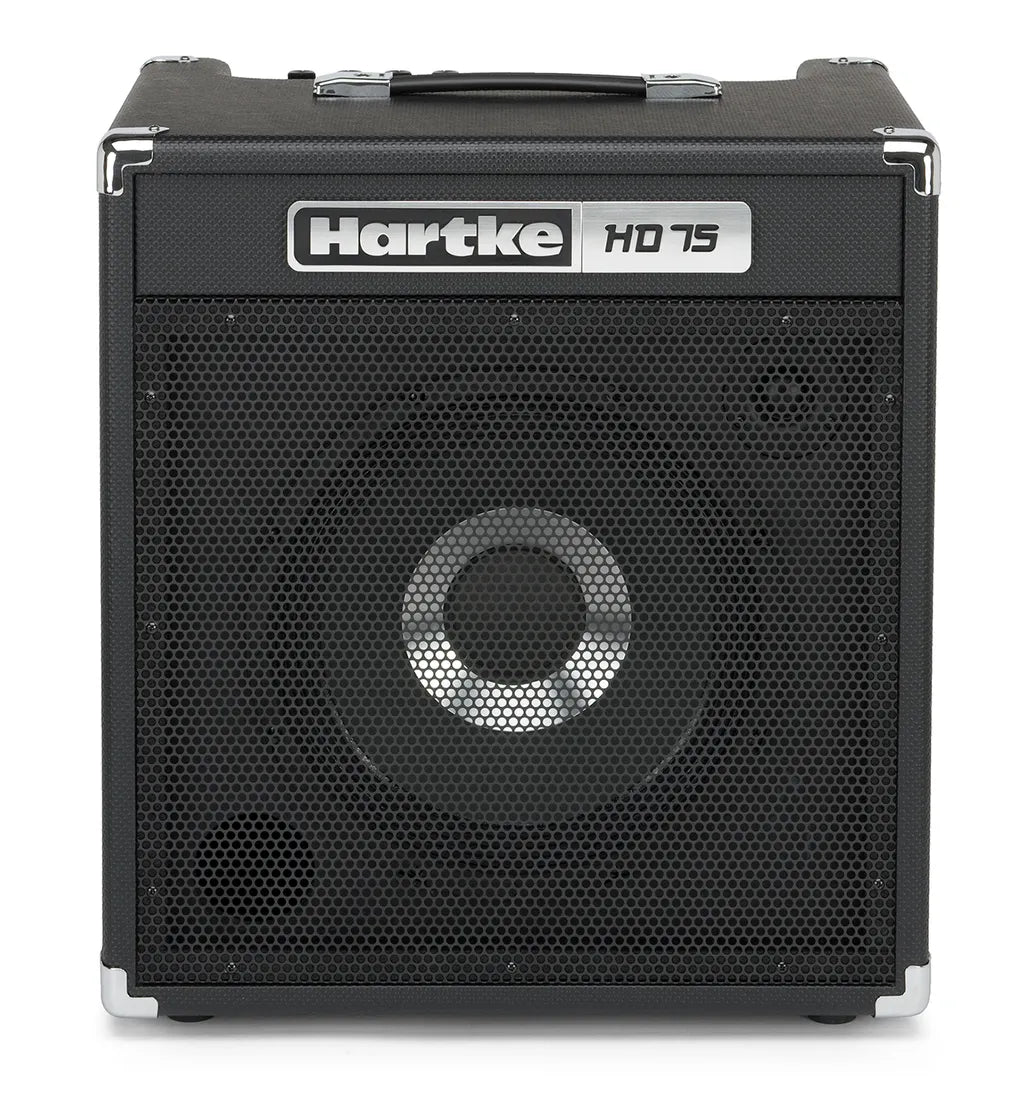

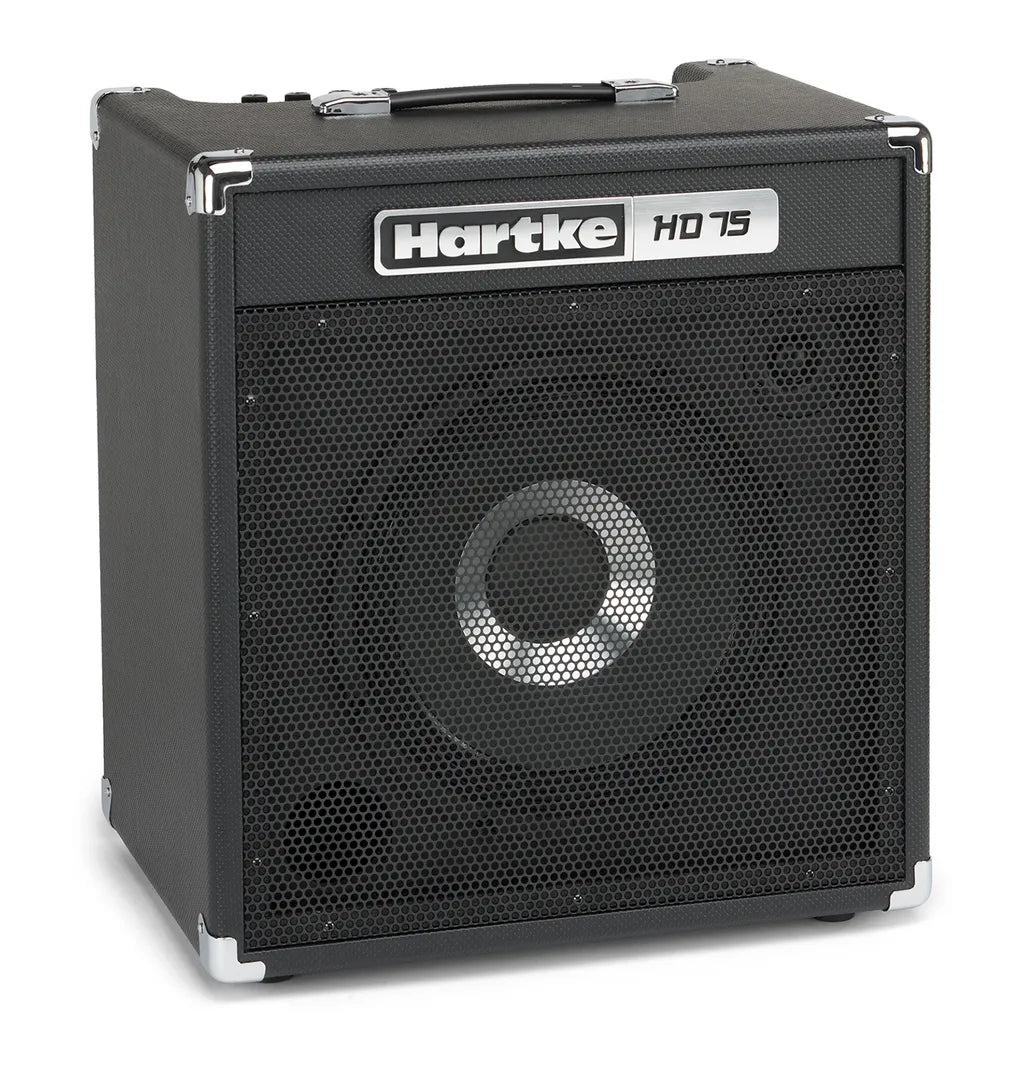

HARTKE HD75

Key Specifications
Rated Output Power	75W
Rated Input Level (@ 1 kHz)	44.6mV RMS
HD150	38.8mV RMS
Total Harmonic Distortion (@ 1 dB below rated output, 1 kHz typical)	0.32%
Signal To Noise Ratio	1W/62dB
Signal Gain Speaker Output	35V
Signal Gain to Send Jack	545mV
Bass Control	50 Hz
Mid Control	700 Hz
Treble Control	10 kHz
Seven-Band Graphic EQ Frequencies	63Hz, 125Hz, 250Hz, 500Hz, 1.25kHz, 2.5kHz, 5kHz
Dimensions	19.9" × 18.6" × 13.9" / 506mm × 472mm × 353mm
Weight	48.2lb / 24.7kg
