Key Specifications

Speaker Type

Active Line Array Loudspeaker

Configuration

2-Way

Enclosure Type

Sealed

Total Output Power

700 W RMS / 1400 W Peak

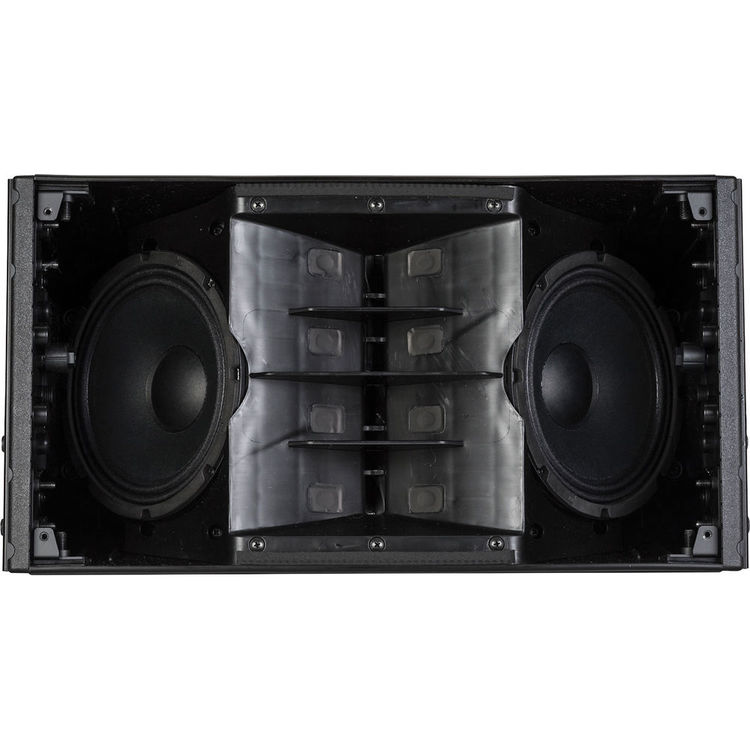

Drivers

LF Driver

2 × 8" / 20.3 cm Woofer
Voice Coil: 2" / 50.8 mm
Magnet: Ferrite

HF Driver

1 × 2" / 50.8 mm Compression Driver
Voice Coil: 2.5" / 63.5 mm
Magnet: Ferrite

Performance

Frequency Range / Response

65 Hz to 20 kHz

Maximum SPL

133 dB

Coverage Angle

100° H × 15° V

Protections

RMS, Thermal

Amplifier

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

800 Hz

EQ & Filters

Preset EQ Curves

Dynamic Processing

HF Limiter

Alignment Delay

No

Digital Signal Processing

No

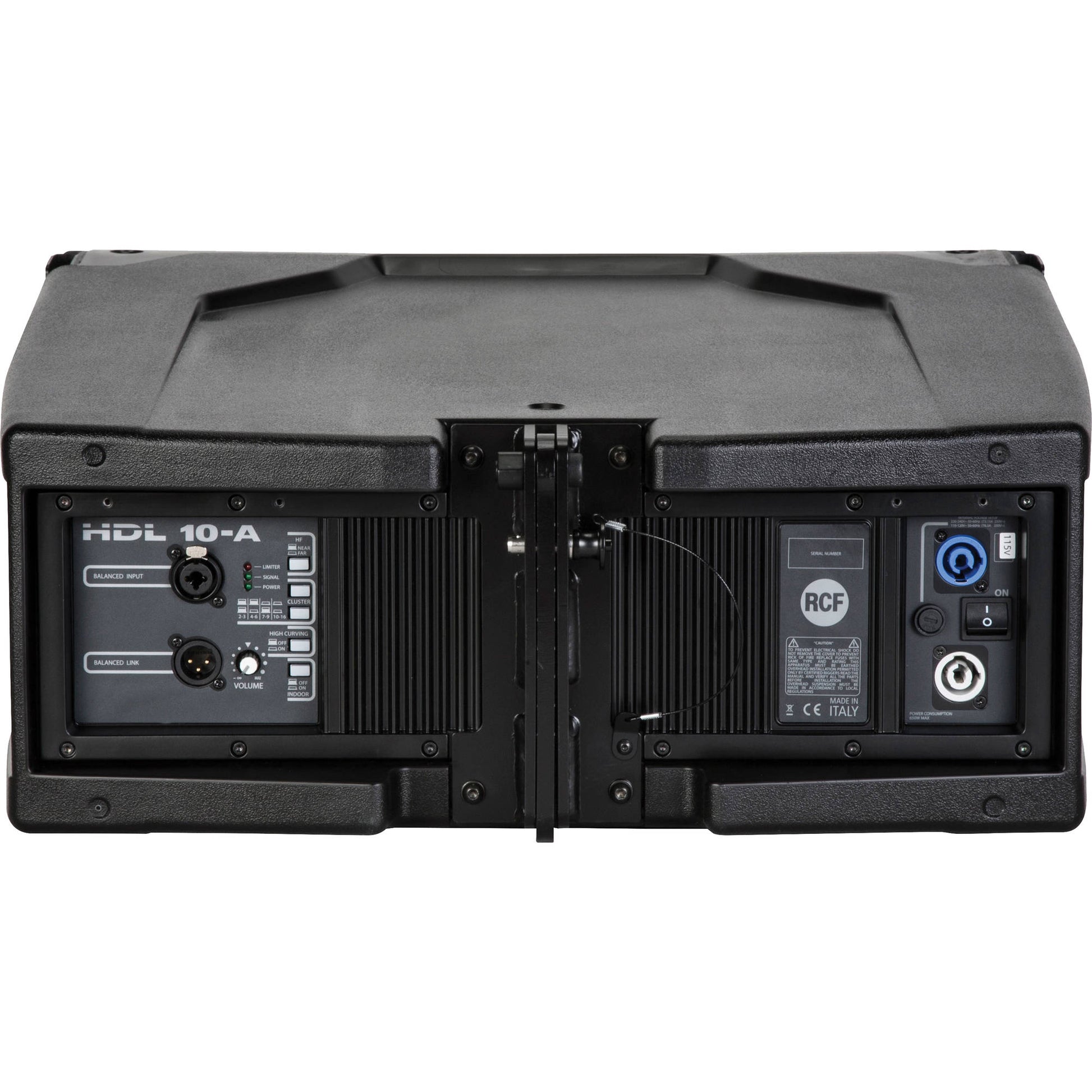

Connectivity

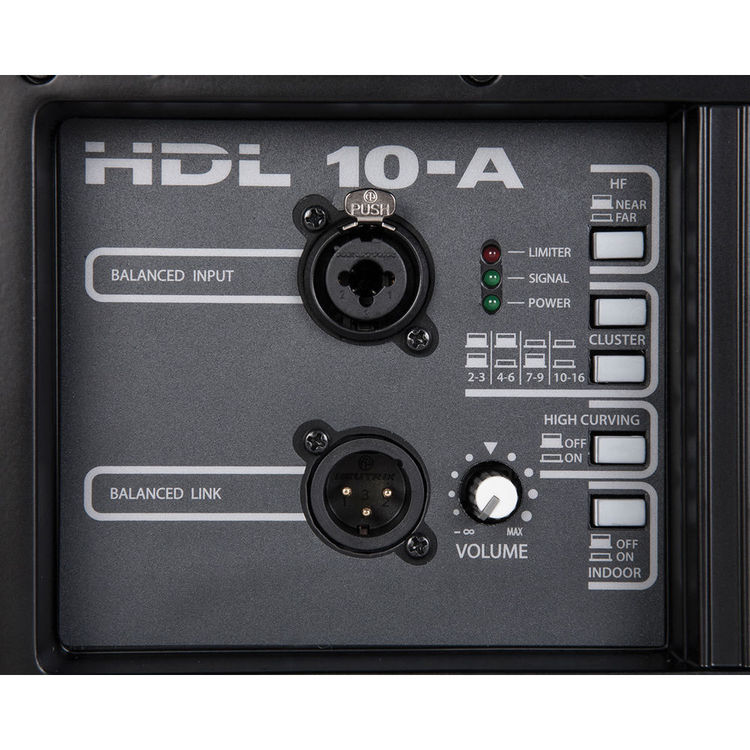

Audio I/O

1 × Combo XLR-1/4" Line Thru / Input
1 × XLR 3-Pin Line Thru / Output

Network I/O

No

USB I/O

No

Wireless

No

Power

AC Input Power

115 VAC, 50 / 60 Hz

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Physical

Color

Black

Mounting

Integrated Rigging (Rear, Each Side)

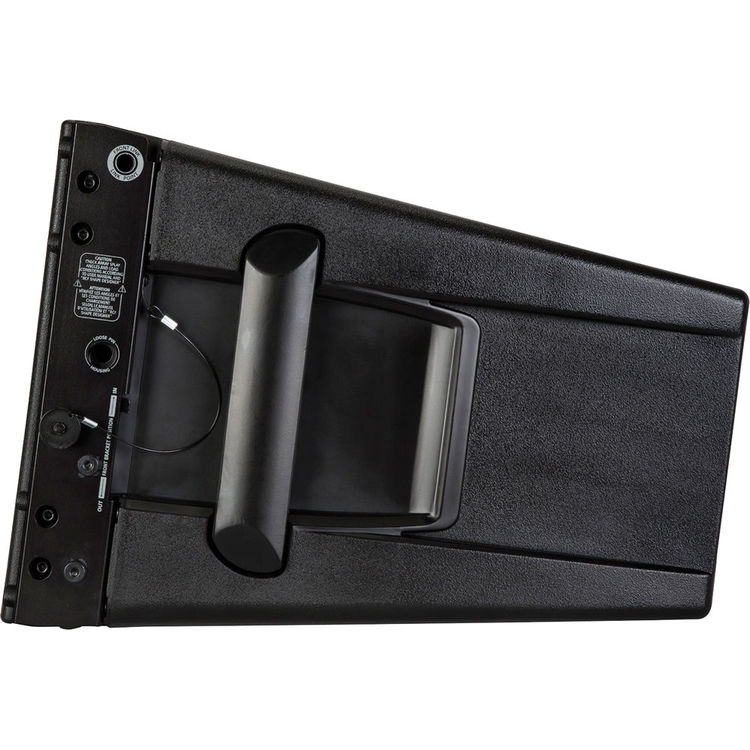

Handles

2 × Side

Construction Material

Composite

Dimensions (W × H × D)

11.5 × 22.4 × 17" / 292.1 × 569 × 431.8 mm

Weight

55.9 lb / 25.4 kg

Packaging Info

Package Weight

50.75 lb

Box Dimensions (L × W × H)

25.5 × 19.7 × 14.6"
