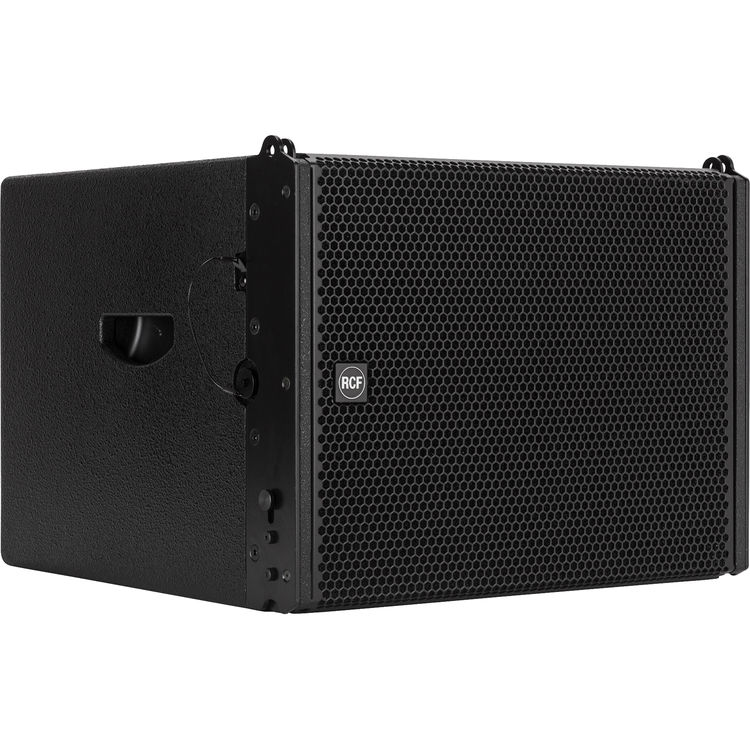

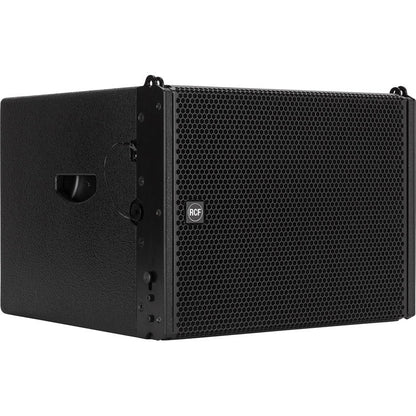

HDL 12-AS

Suitable for portable PAs, clubs, ballrooms, live theaters, houses of worship, and theme parks
2 x side handles
131 dB maximum SPL
40 to 120 Hz frequency response
1 x 12" woofer
Stereo crossover and switchable crossover frequencies
Polarity reverse switch

₱156,000.00 VAT INC.

₱156,000.00

UNIT: PIECE/S

Product Code: SKU:RCF-HDL12AS-CHN-962

Suitable for portable PAs, clubs, ballrooms, live theaters, houses of worship, and theme parks
2 x side handles
131 dB maximum SPL
40 to 120 Hz frequency response
1 x 12" woofer
Stereo crossover and switchable crossover frequencies
Polarity reverse switch

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

RCF HDL 12-AS

Key Specifications
Frequency Range / Response	40 Hz to 120 Hz
Enclosure Type	Bass-Reflex
Total Output Power	700 W RMS / 1400 W Peak
Drivers

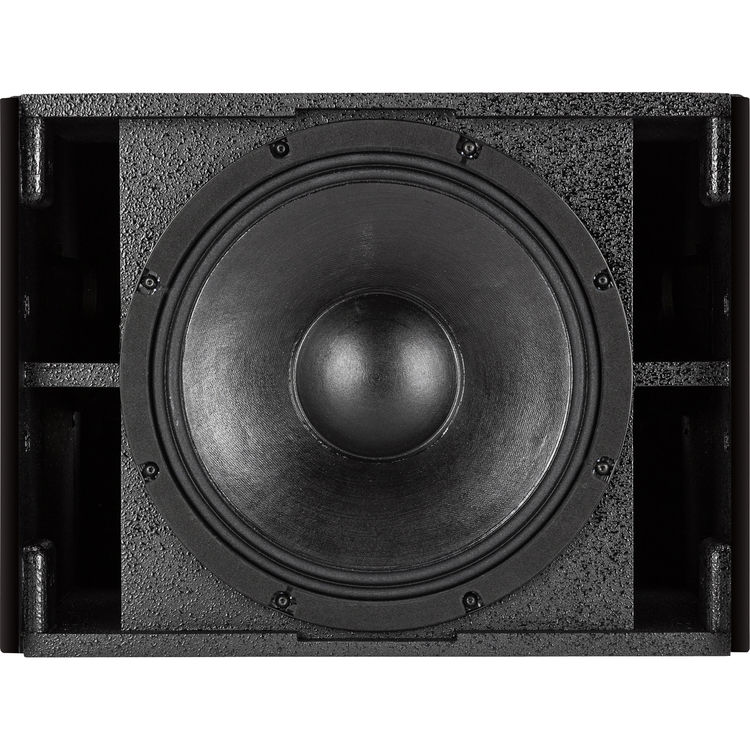

LF Driver	1 × 12" / 30.5 cm Woofer Voice Coil: 3" / 76.2 mm
Performance
Frequency Range / Response	40 Hz to 120 Hz
Maximum SPL	131 dB
Protections	RMS, Thermal
Signal Processing
Crossover Frequency	80 / 110 Hz
EQ & Filters	No
Dynamic Processing	Soft Limiter
Alignment Delay	No

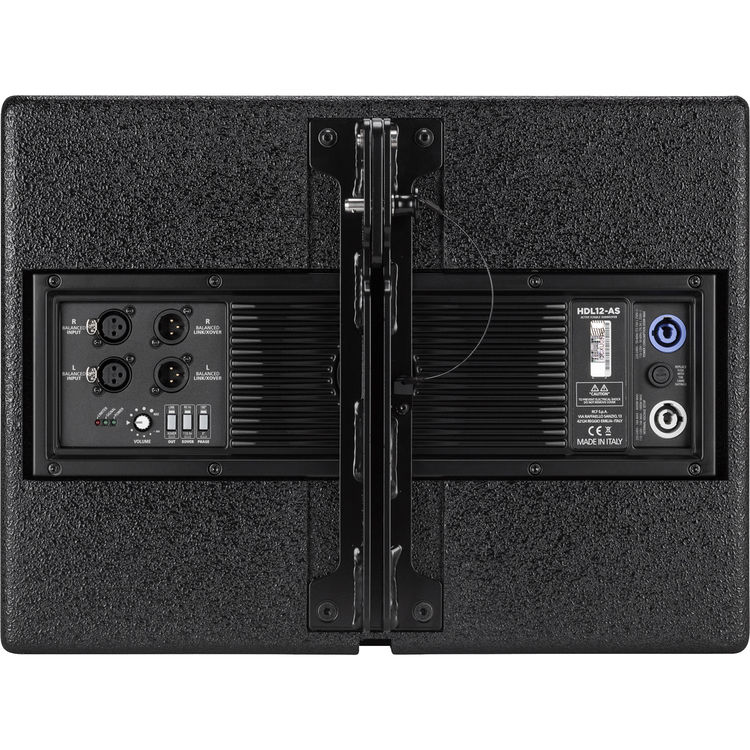

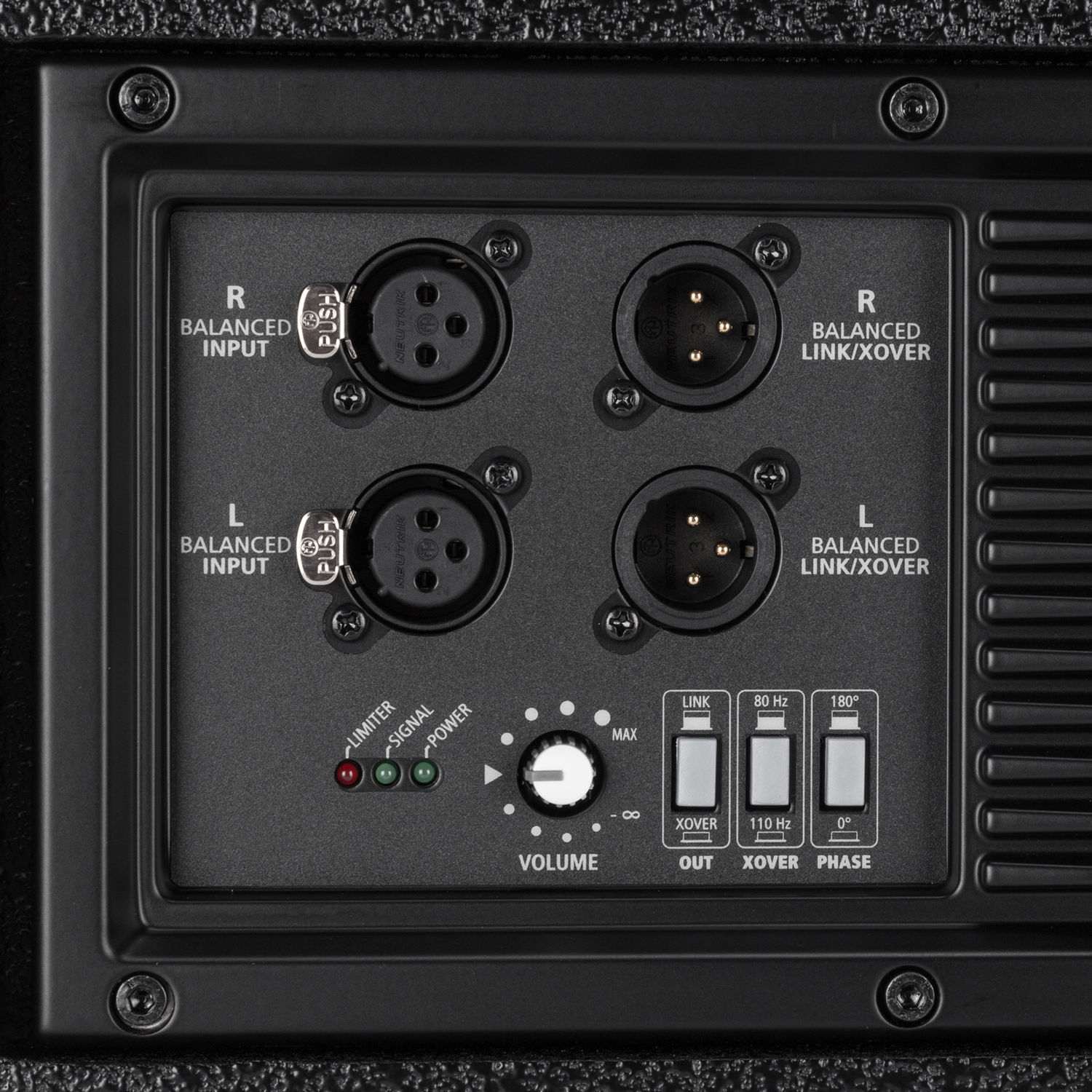

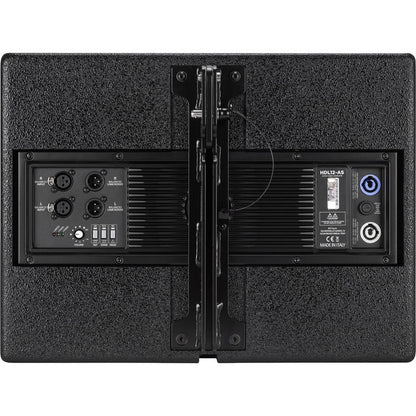

Connectivity
Audio I/O	2 × XLR 3-Pin Input 2 × XLR 3-Pin Link Output
Network I/O	No
USB I/O	No
Wireless	No

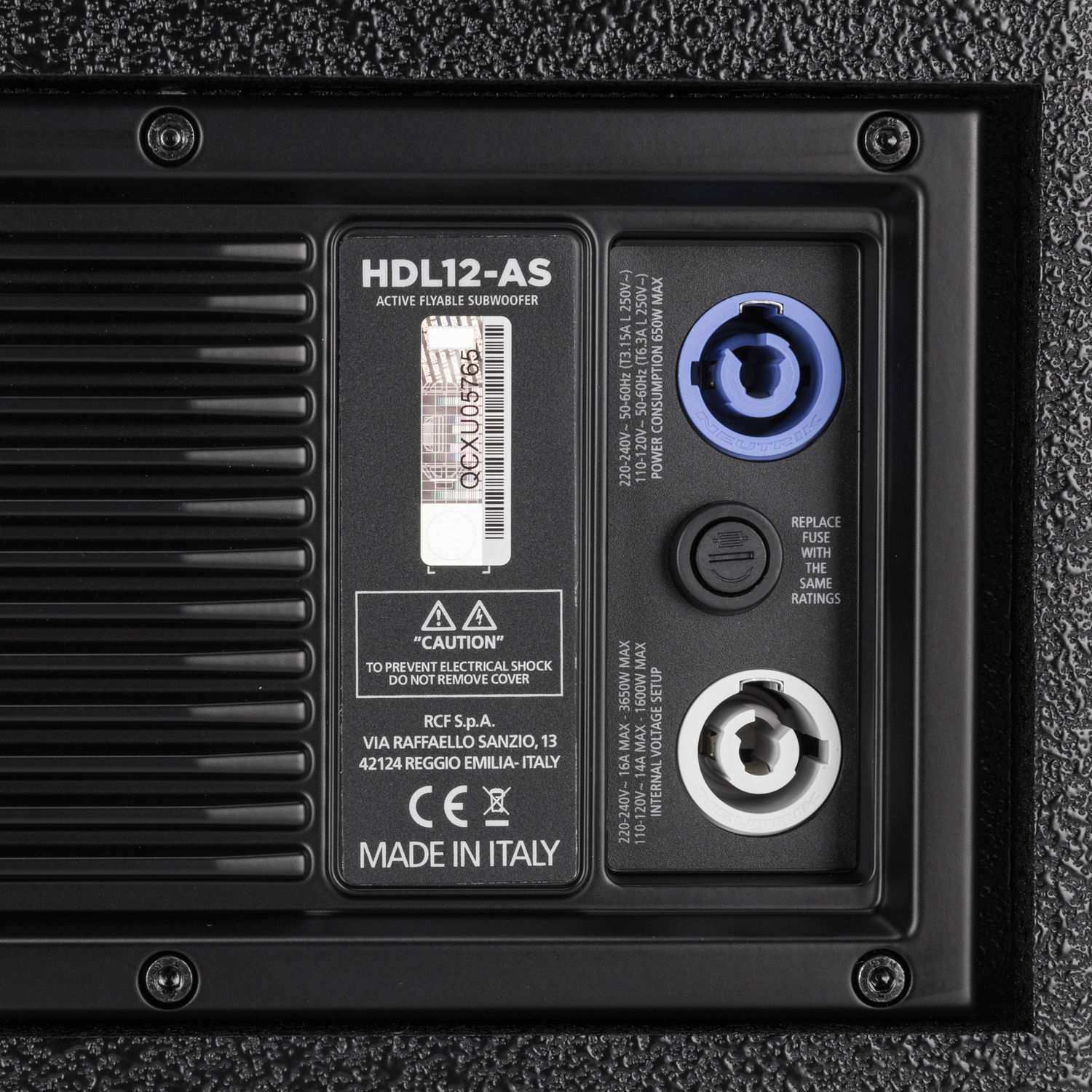

Power
AC Input Power	115 to 230 VAC, 50 / 60 Hz (3.15 A @ 250 V)
AC Power I/O	1 × powerCON Input 1 × powerCON Output
Physical
Color	Black
Handles	2 × Side
Construction Material	Plywood
Dimensions (W × H × D)	14.9 × 18.5 × 20" / 378.5 × 469.9 × 508 mm
Weight	55.1 lb / 25 kg
Packaging Info
Package Weight	62 lb
Box Dimensions (L × W × H)	22 × 21 × 17.5"
