Key Specifications

Speaker Type

Active Line Array Loudspeaker

Configuration

Full-Range Array

Enclosure Type

Bass-Reflex

Total Output Power

700 W RMS / 1400 W Peak

Drivers

LF Driver

2 × 10" / 25.4 cm Woofer
Voice Coil: 2.5" / 6.3 cm

HF Driver

1 × 2" / 5.1 cm Compression Driver
Voice Coil: 3" / 7.6 cm

Performance

Frequency Range / Response

55 Hz to 20 kHz

Maximum SPL

135 dB

Coverage Angle

100° H × 15° V

Protections

RMS, Thermal

Amplifier

Amplifier Power Rating (LF)

500 W RMS / 1000 W Peak

Amplifier Power Rating (MF)

200 W RMS / 400 W Peak

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

800 Hz

Dynamic Processing

Soft Limiter

Alignment Delay

No

Digital Signal Processing

Venue Settings, Voicing Modes

Connectivity

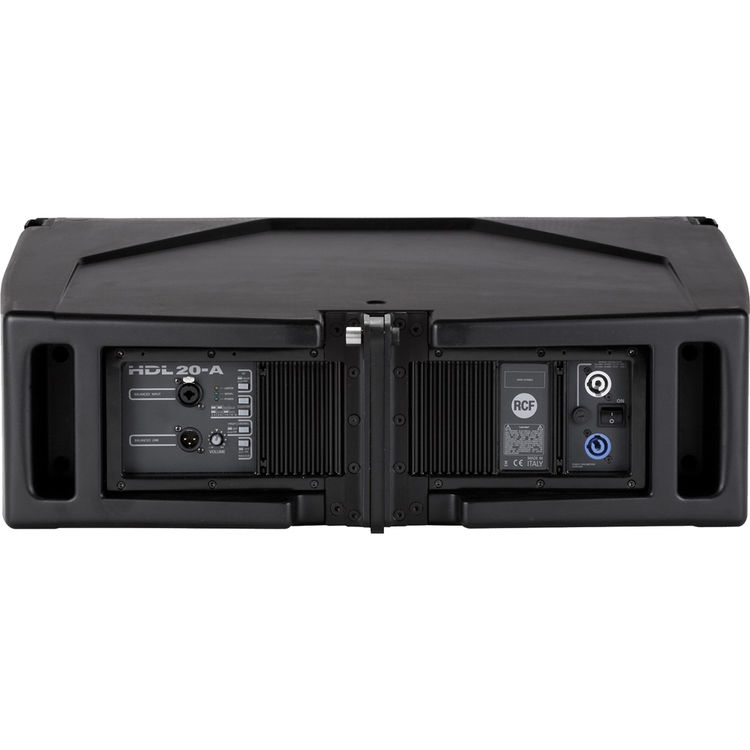

Audio I/O

1 × Combo XLR-1/4" TRS Line Input
1 × XLR 3-Pin Line Thru / Output

Network I/O

No

USB I/O

No

Wireless

No

Power

AC Input Power

100 to 120 VAC, 60 Hz

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Physical

Color

Black

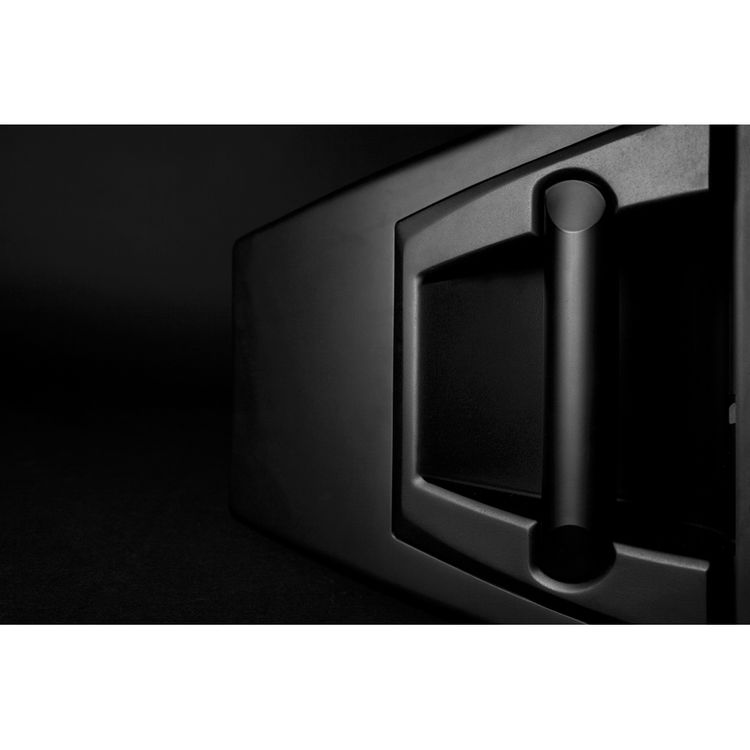

Handles

1 × Each Side
2 × Rear

Construction Material

Composite, Polypropylene

Dimensions (W × H × D)

27.8 × 17.5 × 11.6" / 70.6 × 44.5 × 29.5 cm

Weight

66.6 lb / 30.2 kg

Packaging Info

Package Weight

75 lb

Box Dimensions (L × W × H)

30.9 × 19.7 × 14.5"
