Key Specifications

Speaker Type

Active Line Array Loudspeaker

Configuration

2-Way

Total Output Power

1000 W RMS / 2000 W Peak

Drivers

LF Driver

2 × 6" / 15.2 cm Woofer
Voice Coil: 2" / 50.8 mm
Magnet: Neodymium

HF Driver

1 × 1.5" / 38.1 mm Titanium Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium

Performance

Frequency Range / Response

55 Hz to 20 kHz (-3 dB)

Maximum SPL

133 dB (Peak)

Coverage Angle

100° H × 10° V

Protections

Output Limiter, RMS, Thermal

Amplifier

Amplifier Power Rating (LF)

700 W RMS / 1400 W Peak

Amplifier Power Rating (MF)

300 W RMS / 600 W Peak

Amplifier Class

Class-D

Signal Processing

Crossover Frequency

750 Hz

Dynamic Processing

Soft Limiter

Alignment Delay

Yes (Time/Distance Unspecified)

Digital Signal Processing

Venue Settings, 32-Bit DSP, FIR Filter, Adjustable Delay (via Optional Software)

Connectivity

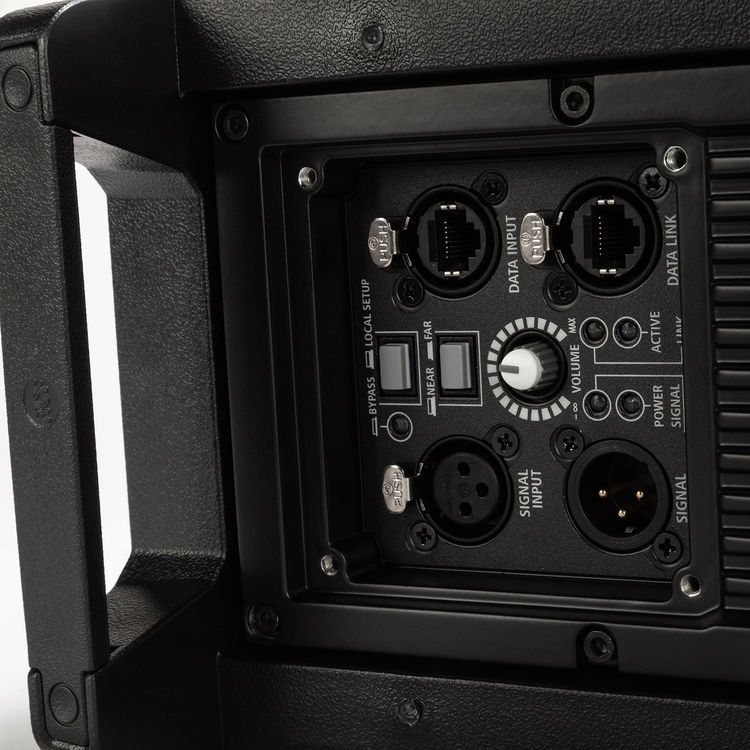

Audio I/O

1 × XLR 3-Pin Line Input
1 × XLR 3-Pin Line Thru

Network I/O

2 × etherCON / RJ45 (RDNet)

USB I/O

No

Wireless

No

Power

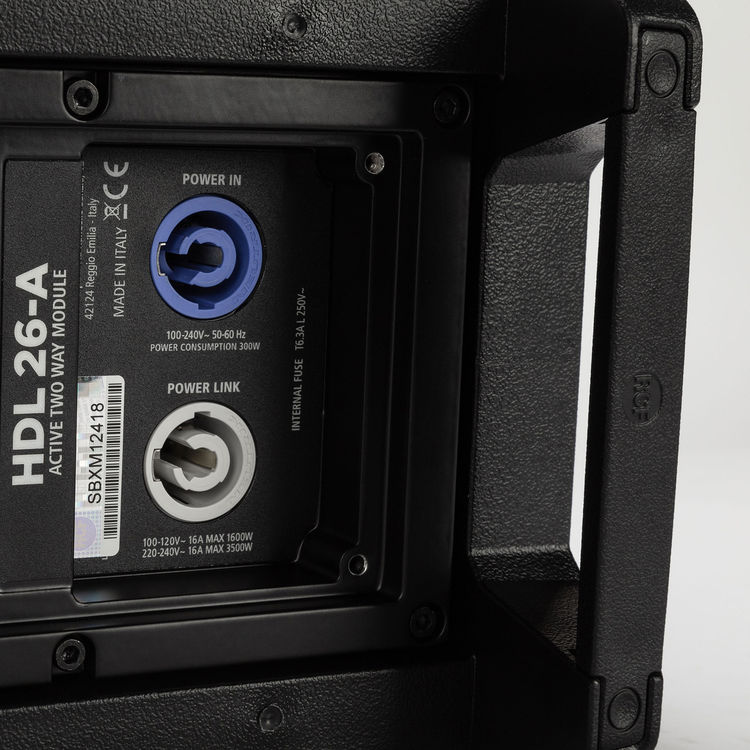

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Power Consumption

300 W

Physical

Color

Black

Mounting

Integrated Rigging

Handles

2 × Rear

Construction Material

Composite, Metal Grille, Polypropylene, Steel

Dimensions (W × H × D)

9.3 × 18.5 × 14.8" / 214 × 470 × 377 mm

Weight

29.8 lb / 13.5 kg
