HDL 30-A
HDL 30-A
RCF
UNIT: PIECE/S
Product Code: SKU:RCF-HDL30A-CHN-180
Key Features

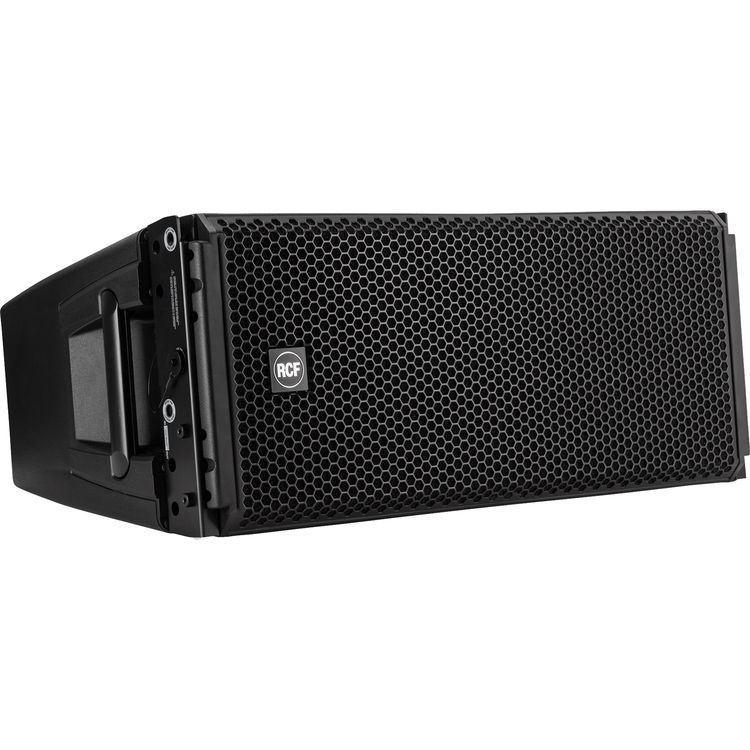

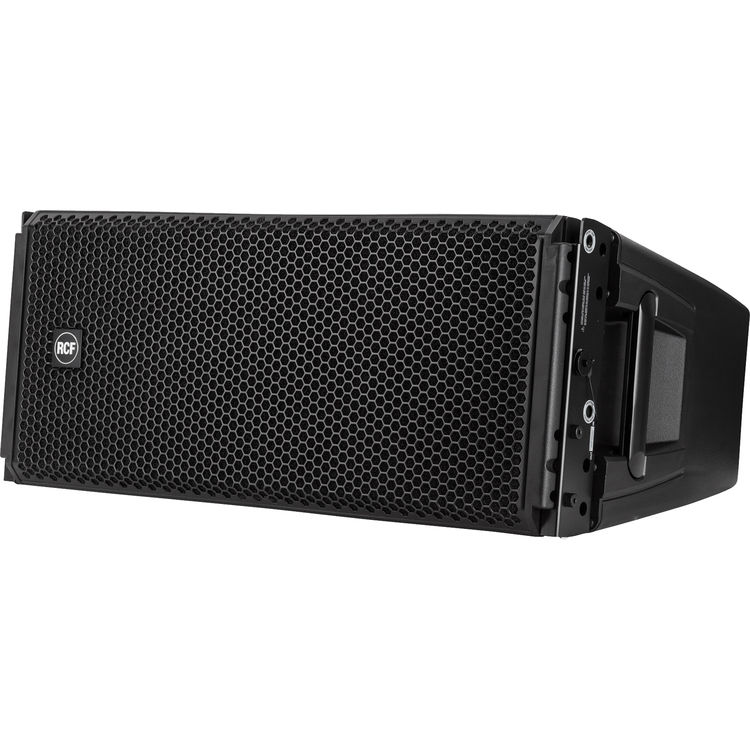

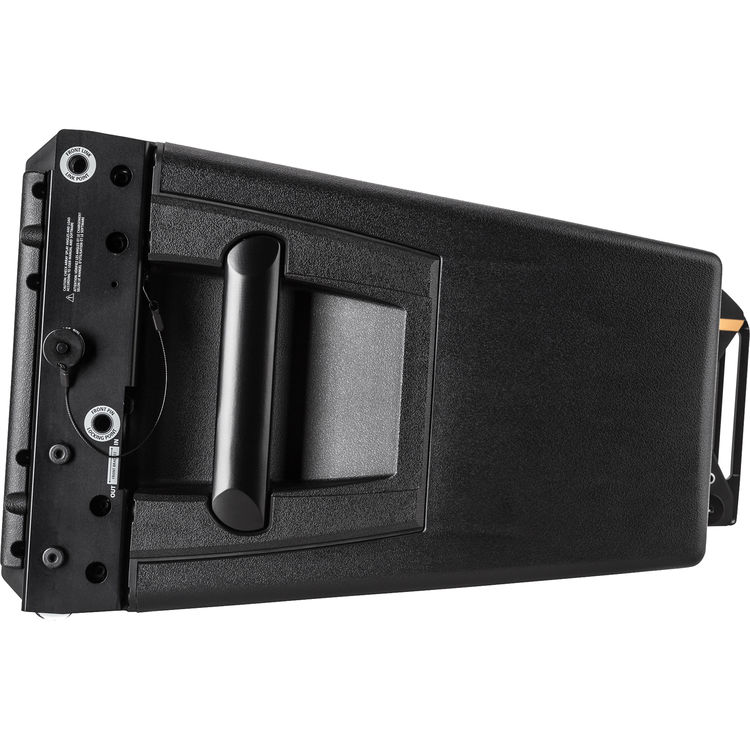

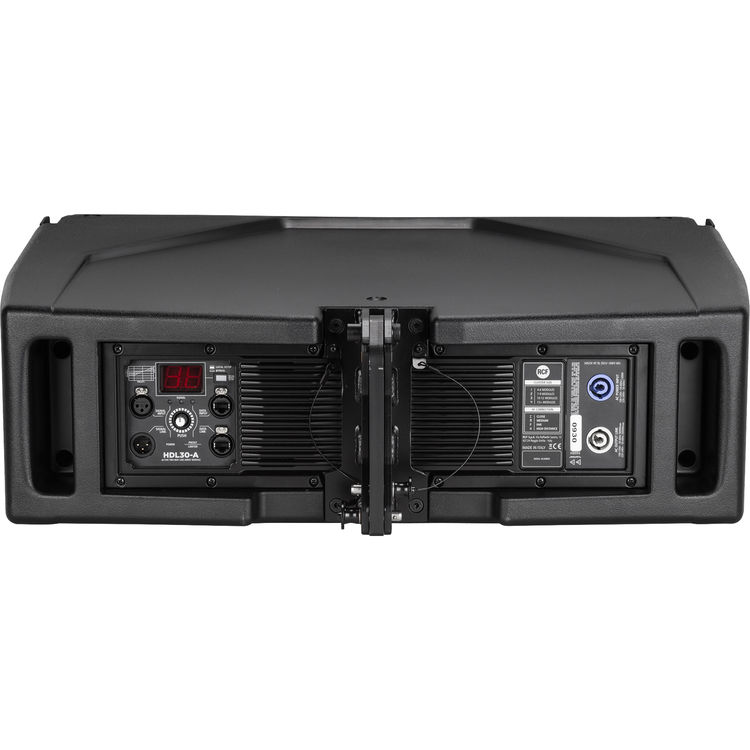

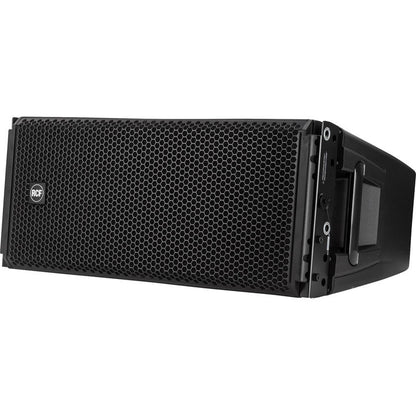

RCF HDL 30-A
RCF HDL 30-A
|
Key Specifications |
|
|
Active / Passive |
Active |
|
Frequency Response |
50 Hz to 20 kHz |
|
Total Power Capacity |
2200 W Peak / 1100 W RMS |
|
HF Power |
600 W Peak / 300 W RMS |
|
LF Power |
1600 W Peak / 800 W RMS |
|
Maximum SPL |
137 dB |
|
Input Sensitivity |
+4 dBu |
|
Crossover Frequency |
680 Hz |
|

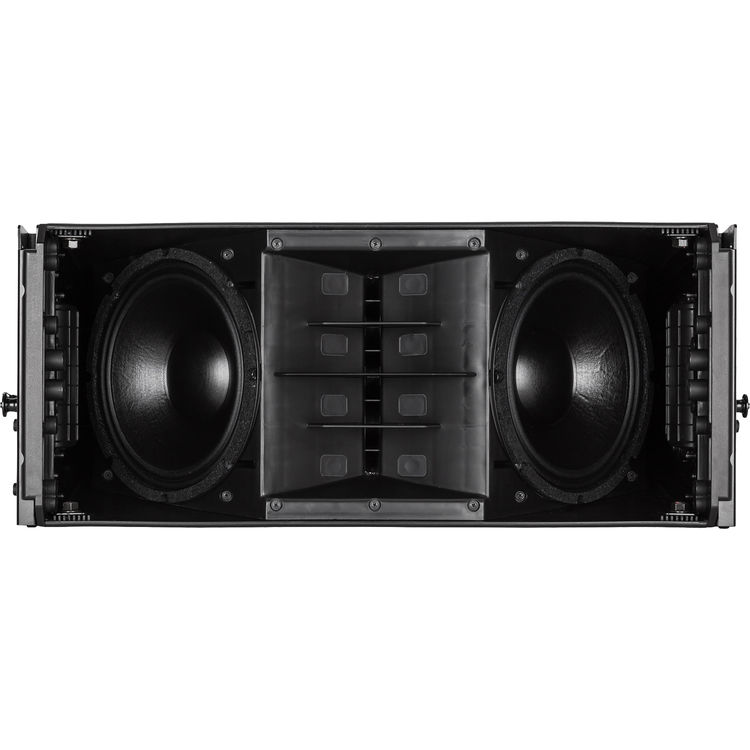

Drivers |
|
|
Low Frequency Driver |
2 × 10" / 254 mm Neodymium Woofers |
|
High Frequency Driver |
1 × 4" / 101.6 mm Titanium Compression Driver |
|
Performance & DSP |
|
|
Amplifier Class |
Class-D |
|
DSP |
32-bit / 48 kHz |
|
Coverage Angle |
100° Horizontal × 15° Vertical |
|
Protections |
Thermal, RMS |
|
Limiter |
Soft Limiter |
|
Cooling |
Forced |
|
Connectivity |
|
|
Inputs |
1 × XLR 3-Pin Male |
|
Outputs |
1 × XLR 3-Pin Female |
|
Power |
|
|
Power Requirement |
100 to 260 VAC |
|
Power Connectors |
1 × powerCON Input |
|
Physical |
|
|
Enclosure Material |
Composite Polypropylene, Wood Reinforced |
|
Dimensions (W × H × D) |
11.5 × 27.8 × 19.8" / 293 × 705 × 502 mm |
|
Weight |
55.1 lb / 25 kg |
|
Packaging Info |
|
|
Package Weight |
62 lb |
|
Box Dimensions (L × W × H) |
31 × 21.5 × 14.5" |
