Key Specifications

Frequency Range / Response

40 Hz to 140 Hz

Enclosure Type

Bass-Reflex

Total Output Power

1600 W RMS / 3200 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

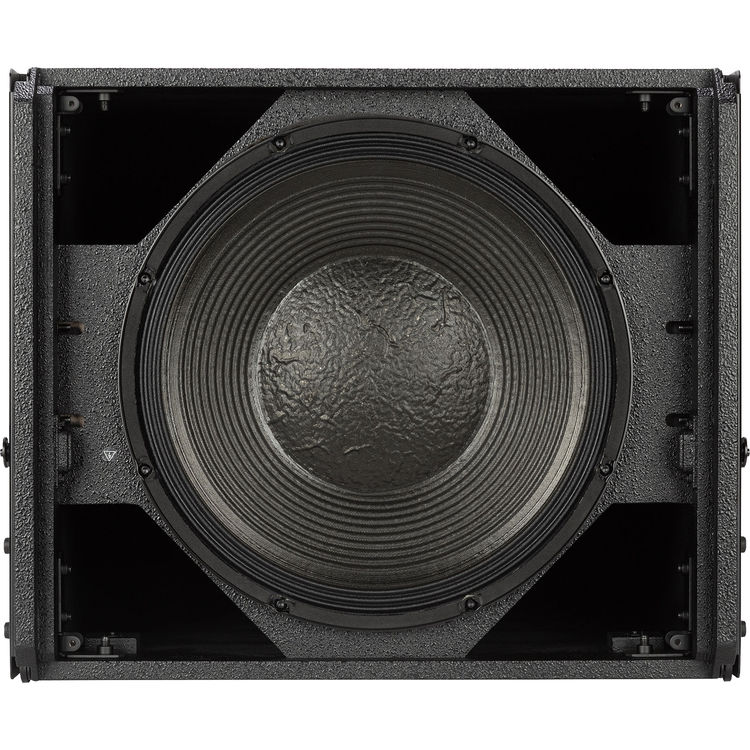

1 × 15" / 38 cm Woofer
Voice Coil: 4" / 10.2 cm
Magnet: Neodymium

Performance

Frequency Range / Response

40 Hz to 140 Hz

Maximum SPL

135 dB

Protections

Output Limiter, Thermal

Signal Processing

EQ & Filters

Preset EQ Curves

Alignment Delay

Yes (Delay Time / Distance Unspecified)

Digital Signal Processing

Delay, FIR Filter, User Settings

Connectivity

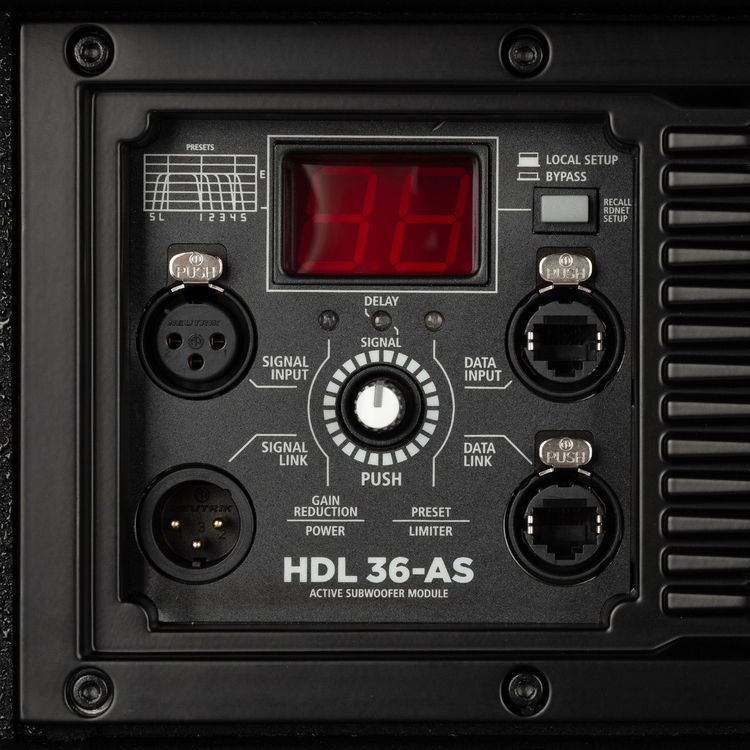

Audio I/O

1 × XLR 3-Pin Line Input
1 × XLR 3-Pin Line Thru

Network I/O

2 × etherCON / RJ45 (RDNet)

USB I/O

No

Wireless

No

Power

AC Input Power

115 VAC, 60 Hz
230 VAC, 50 Hz

AC Power I/O

1 × powerCON Input
1 × powerCON Output

Physical

Color

Black

Mounting

1 × Bracket Point (Each Side)
1 × Bracket Point (Rear)

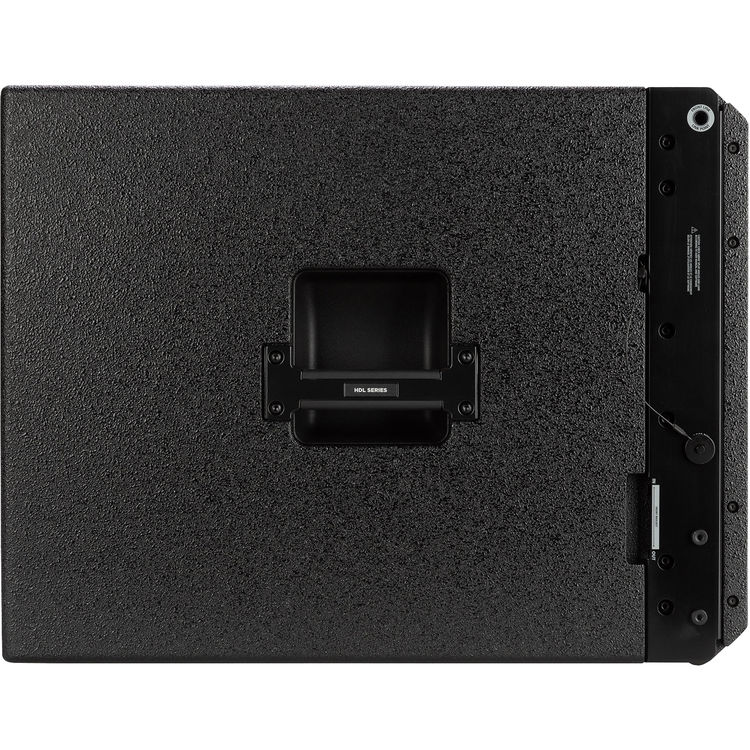

Handles

1 × Each Side

Construction Material

Metal Grille, Plywood

Dimensions (W × H × D)

18.4 × 21.9 × 23.4" / 46.7 × 55.5 × 59.3 cm

Weight

81.6 lb / 37 kg
