HDL 6-A
HDL 6-A
RCF
UNIT: PIECE/S
Product Code: SKU:RCF-HDL6A-CHN-916
Key Features
RCF HDL 6-A
RCF HDL 6-A
|
Key Specifications |
|
|
Frequency Response |
65 Hz – 20,000 Hz |
|
Max SPL @ 1 m |
131 dB |
|
Horizontal Coverage Angle |
100° |
|
Vertical Coverage Angle |
10° |
|

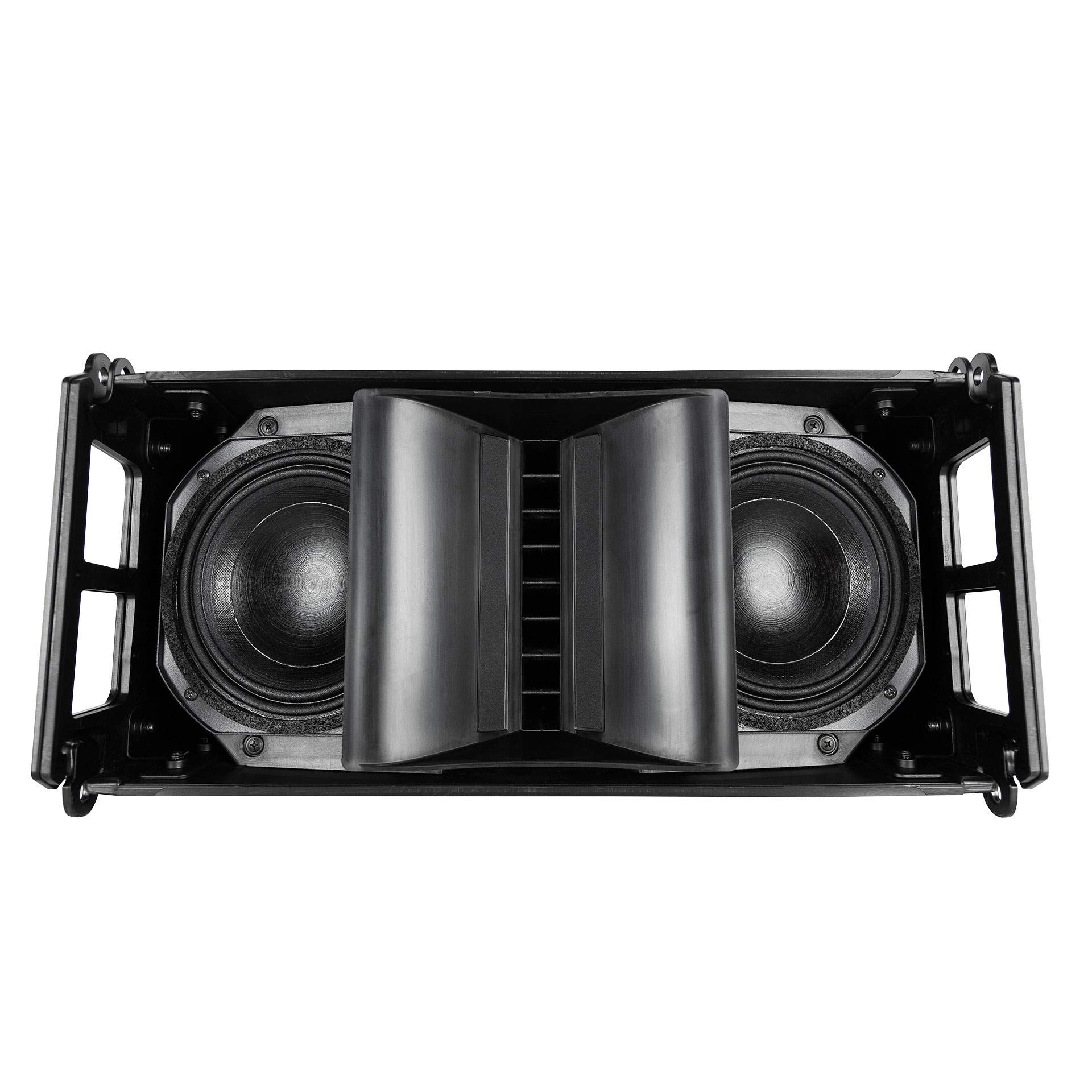

Transducers |
|
|
Compression Driver |
1 × 1.0" Neodymium, 1.75" Voice Coil |
|
Woofer |
2 × 6.0" Neodymium, 2.0" Voice Coil |
|
Input / Output Section |
|
|
Input Signal |
Balanced / Unbalanced |
|
Input Connectors |
XLR |
|
Output Connectors |
XLR |
|
Input Sensitivity |
+4 dBu |
|
Processor Section |
|
|
Crossover Frequency |
900 Hz |
|
Protections |
Thermal, RMS |
|
Limiter |
Soft Limiter |
|

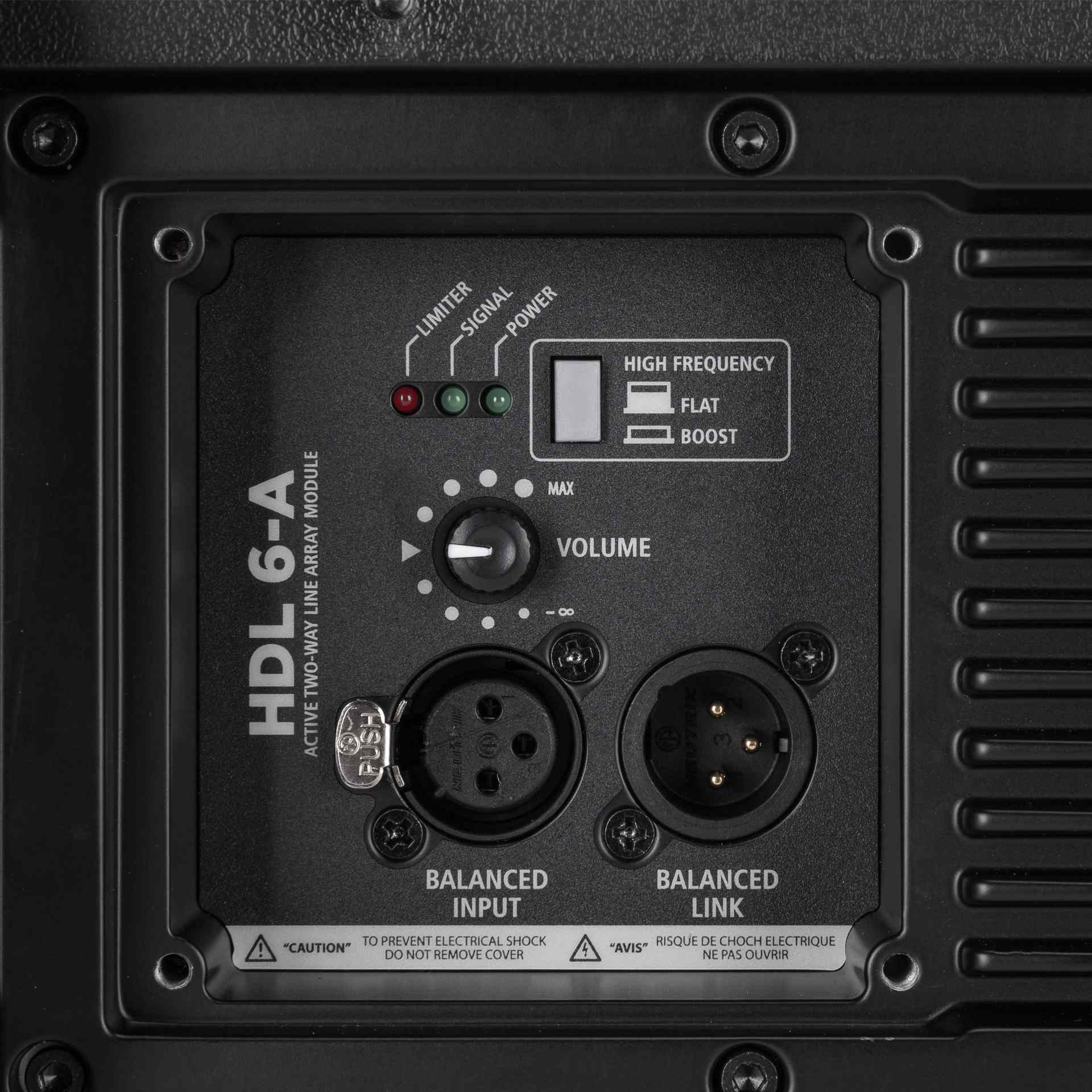

Controls |
HF Correction |
|
Power Section |
|
|
Total Power |
1400 W Peak / 700 W RMS |
|
High Frequencies |
400 W Peak / 200 W RMS |
|
Low Frequencies |
1000 W Peak / 500 W RMS |
|
Cooling |
Convection |
|

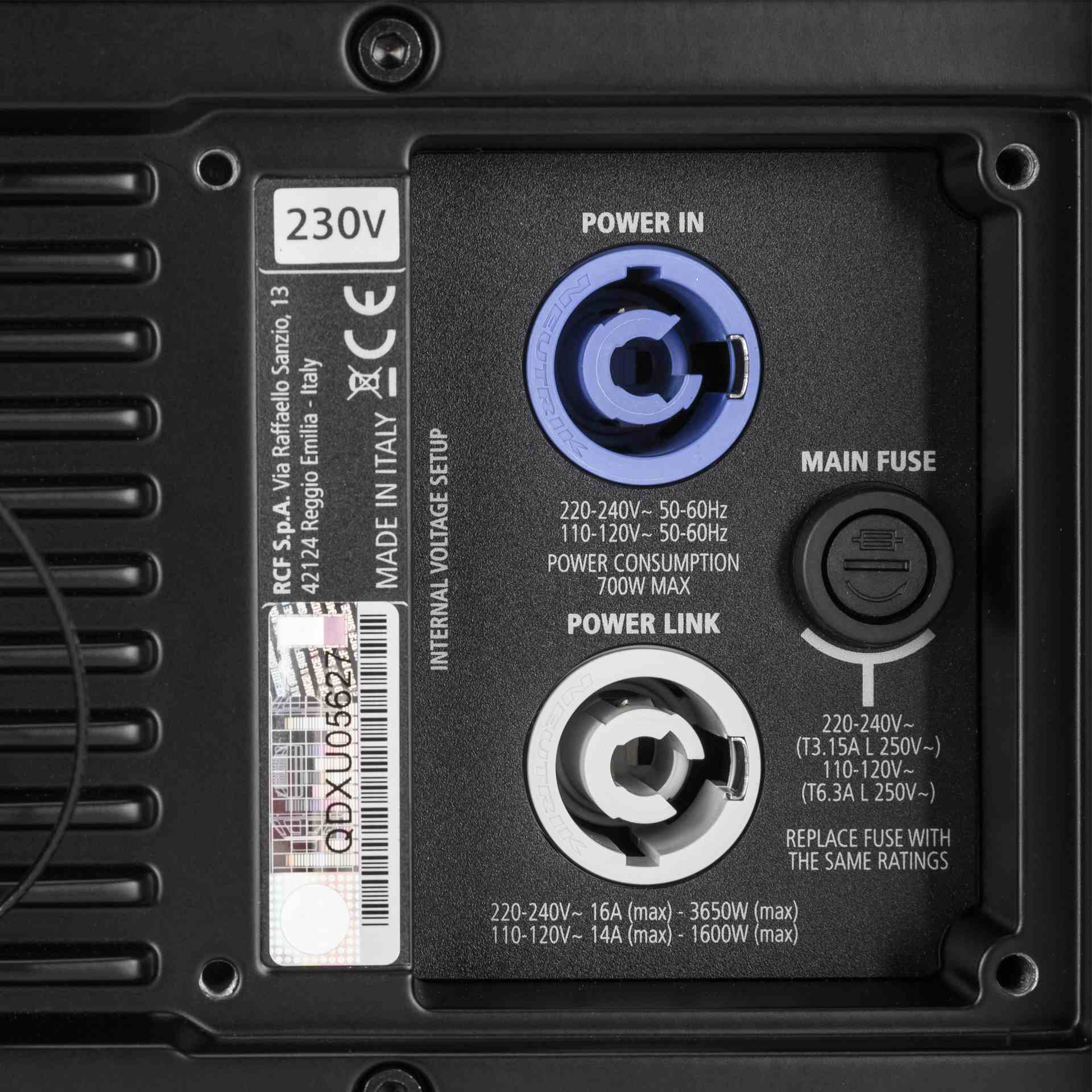

Power Connections |
powerCON IN / OUT |
|
Standard Compliance |
|
|
Safety Agency |
CE Compliant |
|
Physical Specifications |
|
|
Cabinet / Case Material |
PP Composite |
|
Hardware |
Array Fittings |
|
Handles |
2 × Back |
|
Grille |
Steel |
|
Color |
Black, White |
|
Dimensions (H × W × D) |
237 × 470 × 377 mm / 9.33 × 18.5 × 14.84" |
|
Weight |
11.6 kg / 25.57 lb |
|
Shipping Information |
|
|
Package Dimensions (H × W × D) |
260 × 550 × 425 mm / 10.24 × 21.65 × 16.73" |
|
Package Weight |
13 kg / 28.66 lb |
