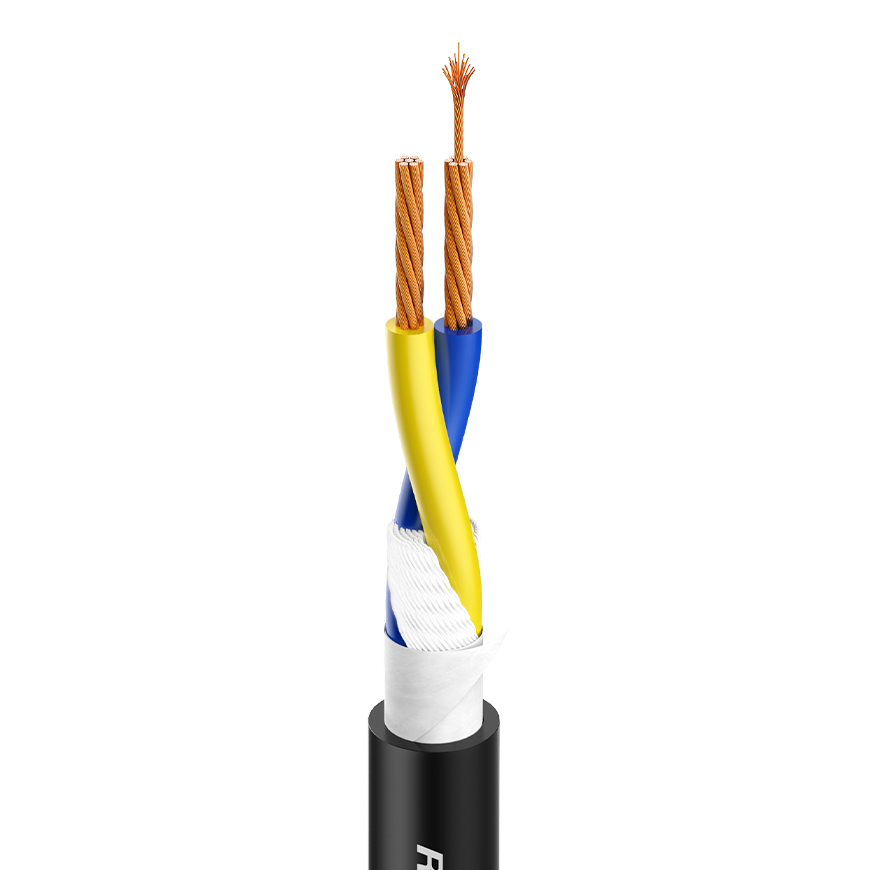

HFSC215

The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
Soft PVC jacket and inner conductors twisted grant a perfect winding

ROXTONE

₱14,943.00 VAT INC.

₱14,943.00

UNIT: PIECE/S

Product Code: SKU:ROXT-HFSC215-CHN-1082

The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
Soft PVC jacket and inner conductors twisted grant a perfect winding

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE HFSC215

Key Specifications
Order Code	HFSC215
Physical Specifications
Jacket Diameter	PVC 8.5 mm
AWG	16
No. of Inner Conductors	2 x 1.50 mm²
Copper Strand per Conductor	192 x 0.10 mm
Cond. PVC Insulation Diameter	3.0 mm
Temperature Range	Min. -20 °C / Max. +70 °C
Packaging	100/300 m roll
Electrical Data
Capac. Cond./Cond. (per 1 m)	127 pF
Cond. Resistance (per 1 m)	11.5 mΩ
