Key Specifications

System Type

2 Way Bass Reflex

Low Frequency (LF)

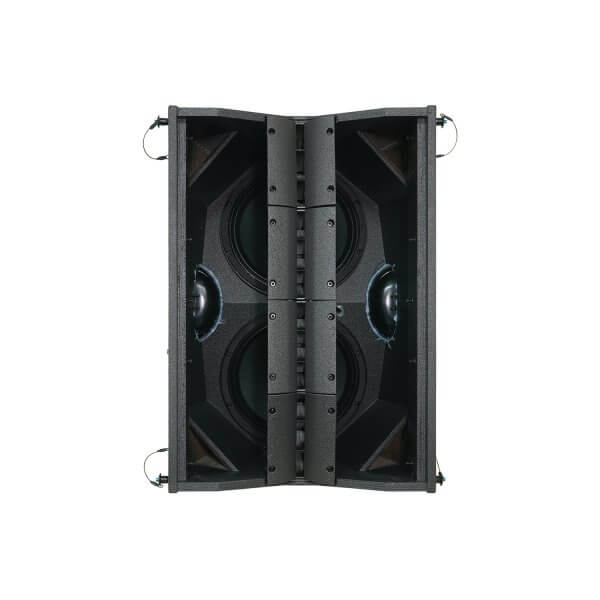

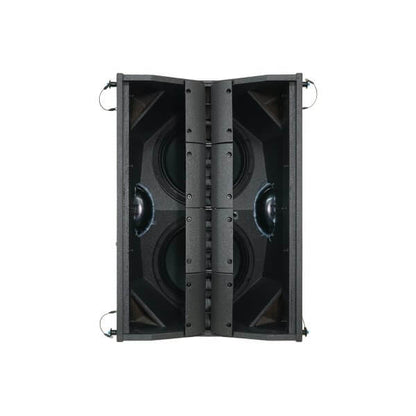

12” × 2 Woofers (3” Voice Coil)

High Frequency (HF)

1.7” × 4 Polyester Dome Tweeters

Frequency Response

60 Hz – 20 kHz

Maximum Calculated SPL

131 dB / 137 dB

Configuration

High performance 3-way passive line array loudspeaker

Normal Impedance

8 Ω

Angle Adjustment

0°, 1°, 2°, 4°, 6°, 8°, 10°

Amplifier Power

600 W + 1200 W Class D Bi-amp with DSP

SPL

104 dB SPL @ 1 m

Coverage

90° (H) × 30° (V)

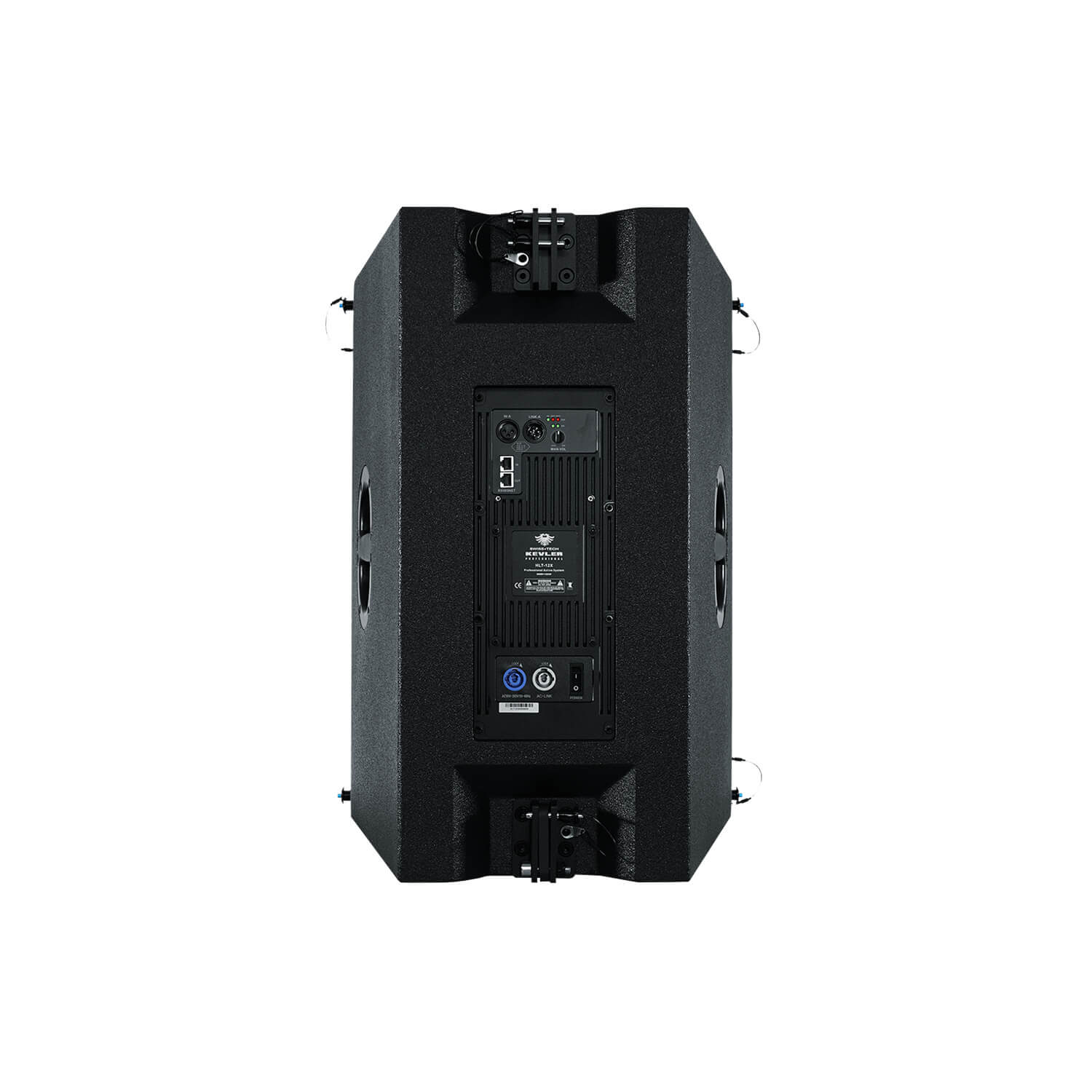

Input Connector

Line (XLR Female Jack)

Output Connector

Line (XLR Male Loop Through)

THD

Less than 0.5%

LED Indicators

Power, Signal, Clip

Crossover Frequency

1.8 kHz

AC Input

220 V, 50–60 Hz

Dimensions (H × W × D)

681 × 480 × 580 mm

Net Weight

47 kg

Gross Weight

70 kg

Packaging Dimensions (H × W × D)

910 × 590 × 630 mm
