Key Specification

Number of Headphone Channels

4-Channel

Headphone Output Power

550 mW per Side into 47 Ohms (Max)

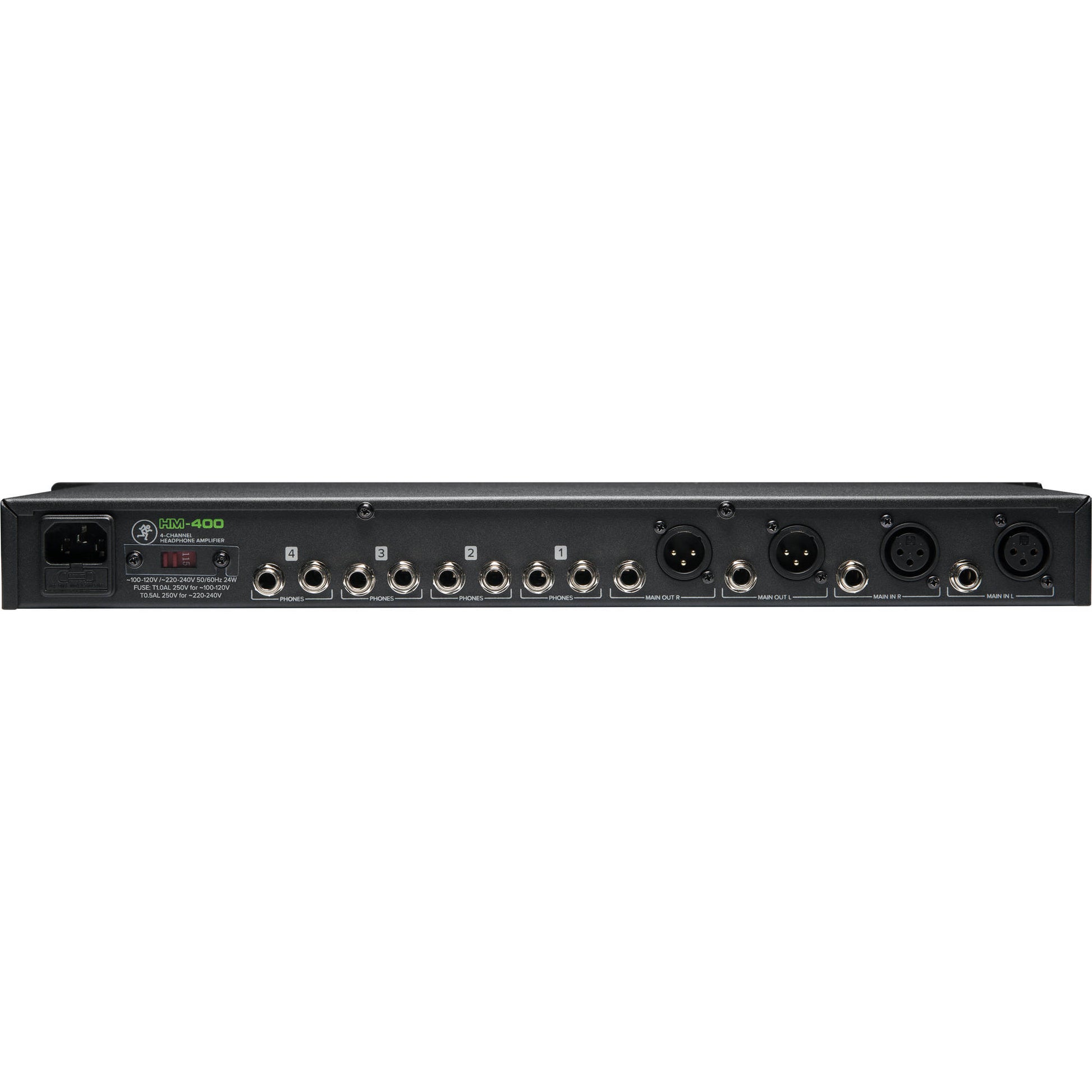

Analog Audio I/O

2 × XLR 3-Pin Balanced Input (1 Stereo Pair)
2 × 1/4" TRS Balanced/Unbalanced Input (1 Stereo Pair)
1 × 1/4" TRS Unbalanced Stereo Input
4 × 1/4" TRS Unbalanced Stereo Aux Input
2 × XLR 3-Pin Balanced Output (1 Stereo Pair)
2 × 1/4" TRS Balanced Output (1 Stereo Pair)
12 × 1/4" TRS Unbalanced Headphone Output

Power Requirements

AC Input

EQ

2-Band EQ per Channel

Display

5 × Multi-Segment LED Meter

Frequency Response

20 Hz to 20 kHz ±1 dB

Gain/Trim Range

Inputs: -66 to +18 dBu

Maximum Input Level

Line Inputs: +15 dBu
Aux Inputs: +20 dBu

Maximum Output Level

Headphone Outputs: +21 dBu

Impedance

Inputs: 20 Kilohms (Balanced), 10 Kilohms (Unbalanced)
Aux Inputs: 10 Kilohms (Unbalanced)
Headphone Outputs: 3 Ohms (Unbalanced)

THD

< 0.01% (at +4 dBu, 1 kHz, Unity Gain)

Noise

-66 dB

CMRR

Line Inputs: > 42 dB (1 kHz)

AC Input Power

100 to 120 VAC, 50/60 Hz
220 to 240 VAC, 50/60 Hz

Power Consumption

24 W

Rackmount Size

1 U

Dimensions

19 × 8.8 × 1.8" / 483 × 224 × 46 mm

Weight

8.0 lb / 3.6 kg

Package Weight

9.75 lb

Box Dimensions (L × W × H)

20.8 × 10.6 × 4.1"
