Key Specifications

Product / Accessory Type

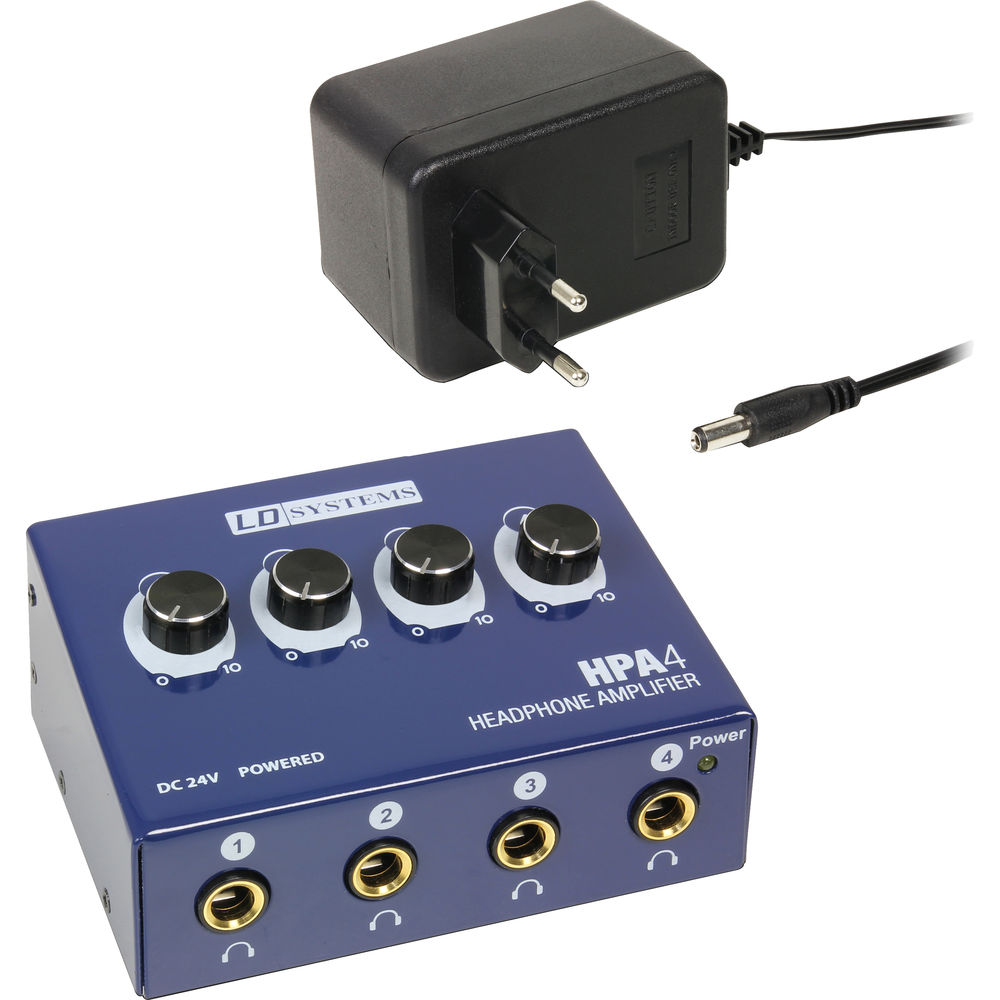

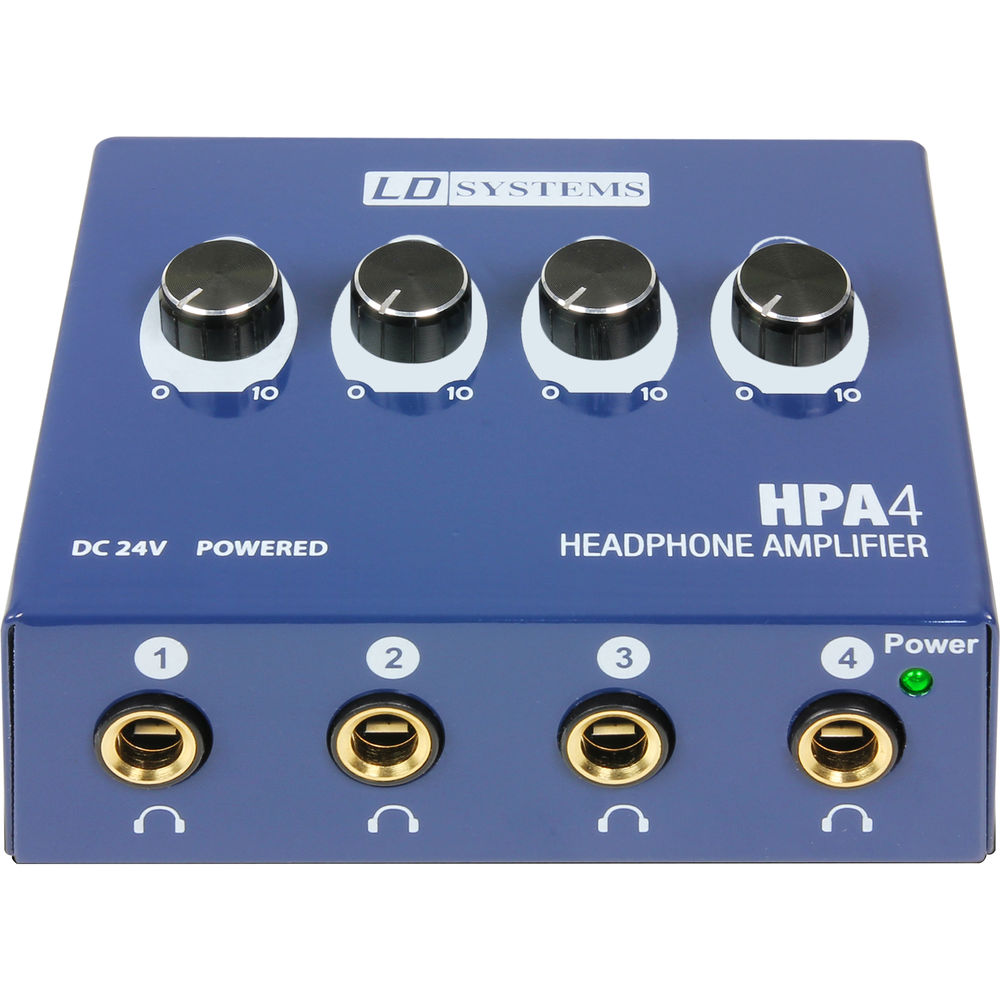

4-Channel Compact Headphone Amplifier & Distribution System

Form Factor

Desktop / Tabletop

Audio Performance & Power Output

Headphone Channel Capacity

4 Independent Headphone Output Channels

Headphone Output Power

Up to 100 mW per Channel

Recommended Headphone Impedance

10 Ohms Minimum Load Impedance

Input Impedance

1 kOhm

Frequency Response

20 Hz to 20,000 Hz

Connectivity & Power Specifications

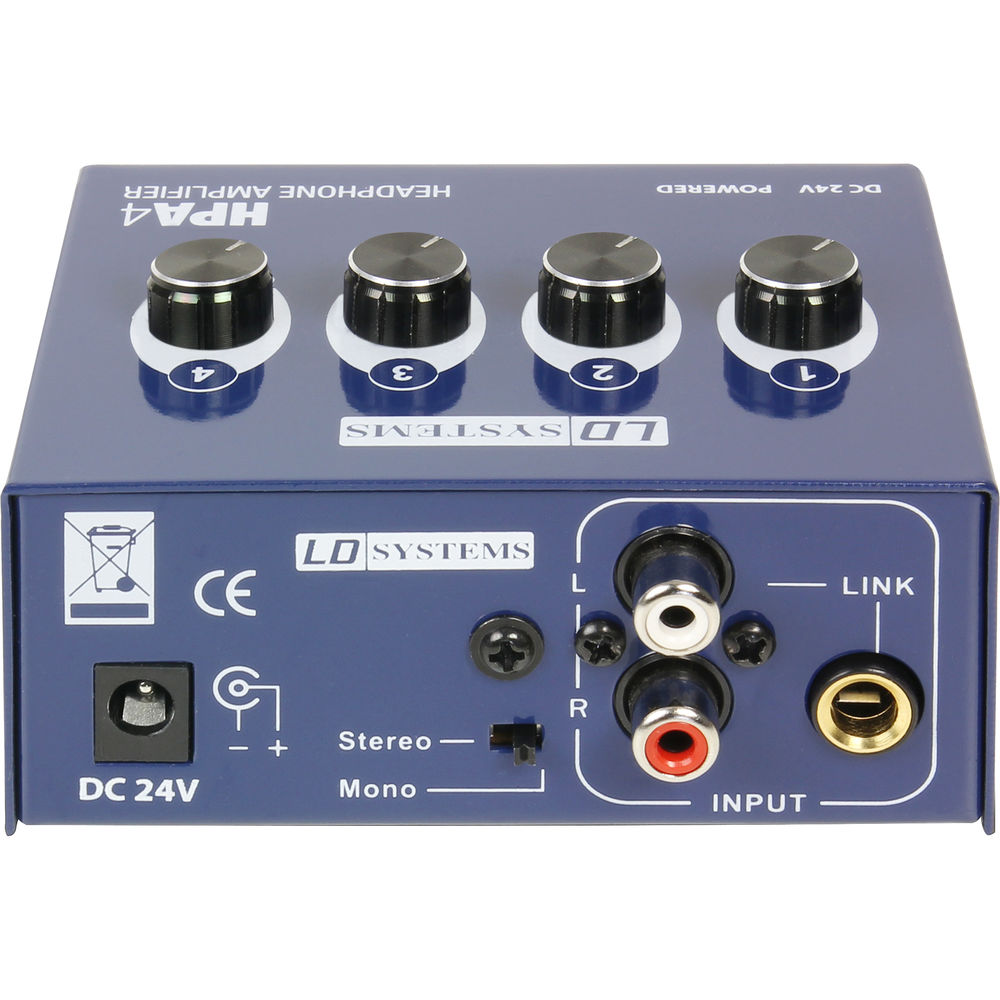

Analog Audio Inputs

1x Stereo RCA (2RCA) Unbalanced Input, 1x 1/4" TRS Unbalanced Link Input

Analog Audio Outputs

4x 1/4" TRS Unbalanced Headphone Outputs

Power Supply Requirements

24 VDC (External AC/DC Power Adapter)

Dimensions, Weight & Packaging Specifications

Product Dimensions (W×D×H)

94.00 mm x 82.00 mm x 48.00 mm (3.70" x 3.20" x 1.90")

Product Net Weight

0.30 kg (0.70 lbs)

Package Shipping Weight

0.44 kg (0.97 lbs)

Packaging Box Dimensions (L×W×H)

243.84 mm x 144.78 mm x 73.66 mm (9.60" x 5.70" x 2.90")
