Key Specifications

Main Frame Size

EIA Standard Rack 1U

Receiving Channel

Dual Channel / Single Channel

Receiving Mode

True Diversity

Receiving Frequency Band

521.25MHz-936.85MHz

Bandwidth

Single channel 130MHz (depending on the region)

Working Mode

PLL frequency synthesis oscillation and secondary mixing reception technology

Frequency Reliability

±0.005% (-10-50°C)

Receiving Sensitivity

When the offset is equal to 25KHz and 5dBu is input, S/N>60dB

Max. Deviation

±45KHz

Working Range

100M Typical (in open space)

Audio Performance

Audio Sampling Rate

96KHz 24-bit

Audio Extension

Relacart DSP digital audio extension algorithm

Frequency Response

60Hz-18KHz±3dB

Comprehensive S/N

>105dB

Comprehensive T.H.D

<0.7%@1KHz

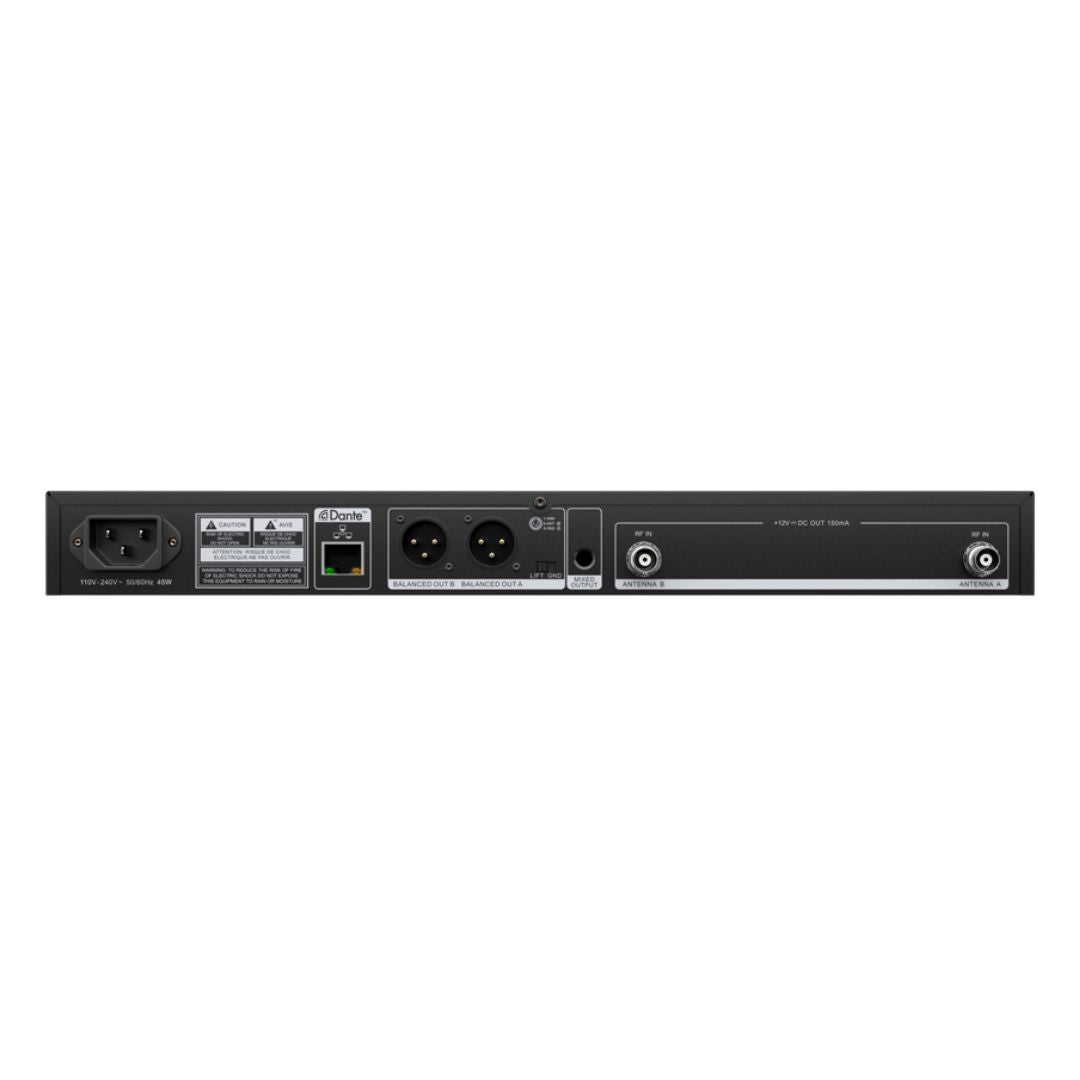

Interfaces & Connectivity

External Antenna Interface

BNC, DC 12V/150mA output

External Audio Interface

Mixed 6.35mm unbalanced, independent channel XLR output

Ethernet Port

Support Dante communication protocol

Power Supply

Power Mode

AC 100~240V, 50/60Hz

Dimensions & Weight

Dimension (mm)

410 (L) x 206 (W) x 43 (H)

Weight

Approximately 1.8KG
