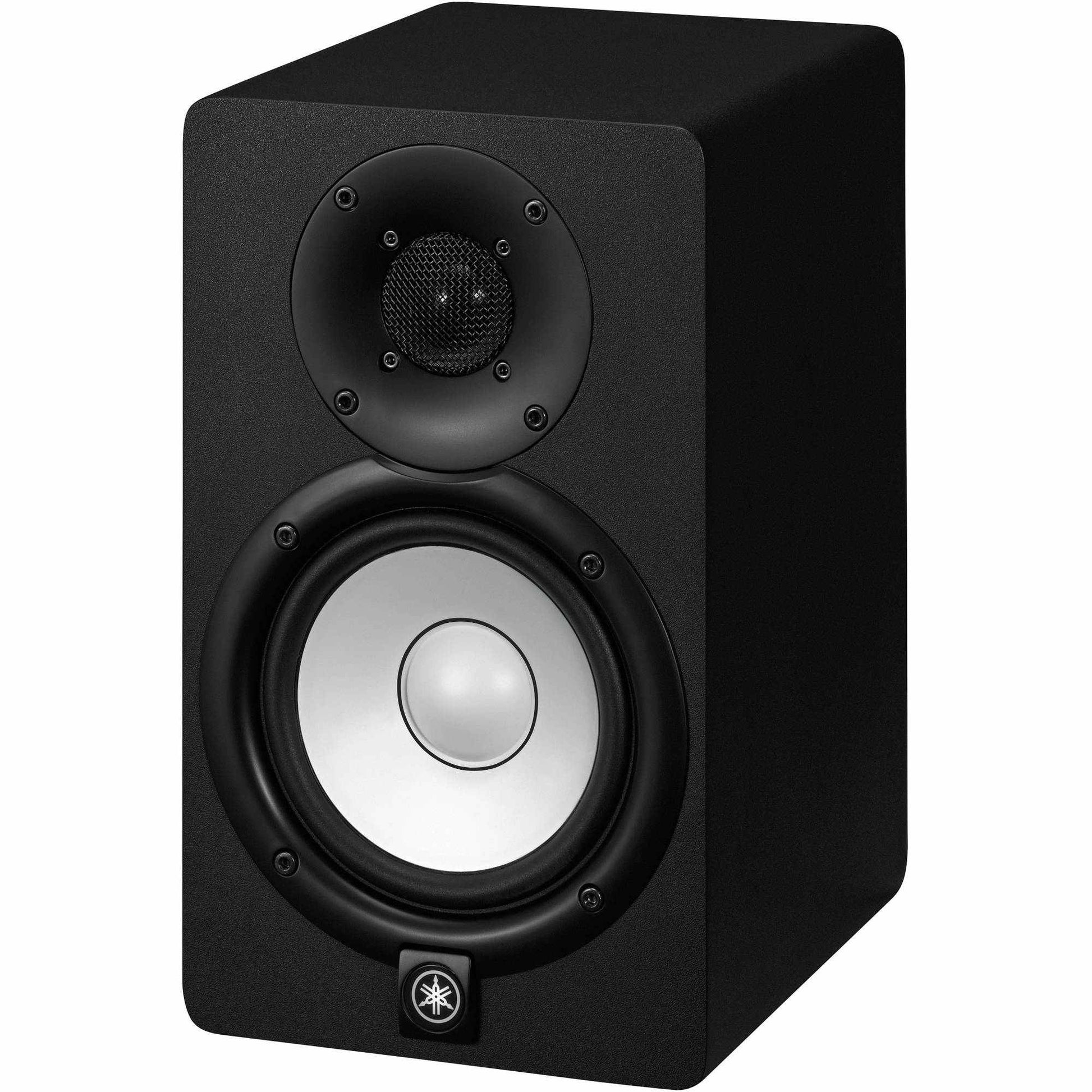

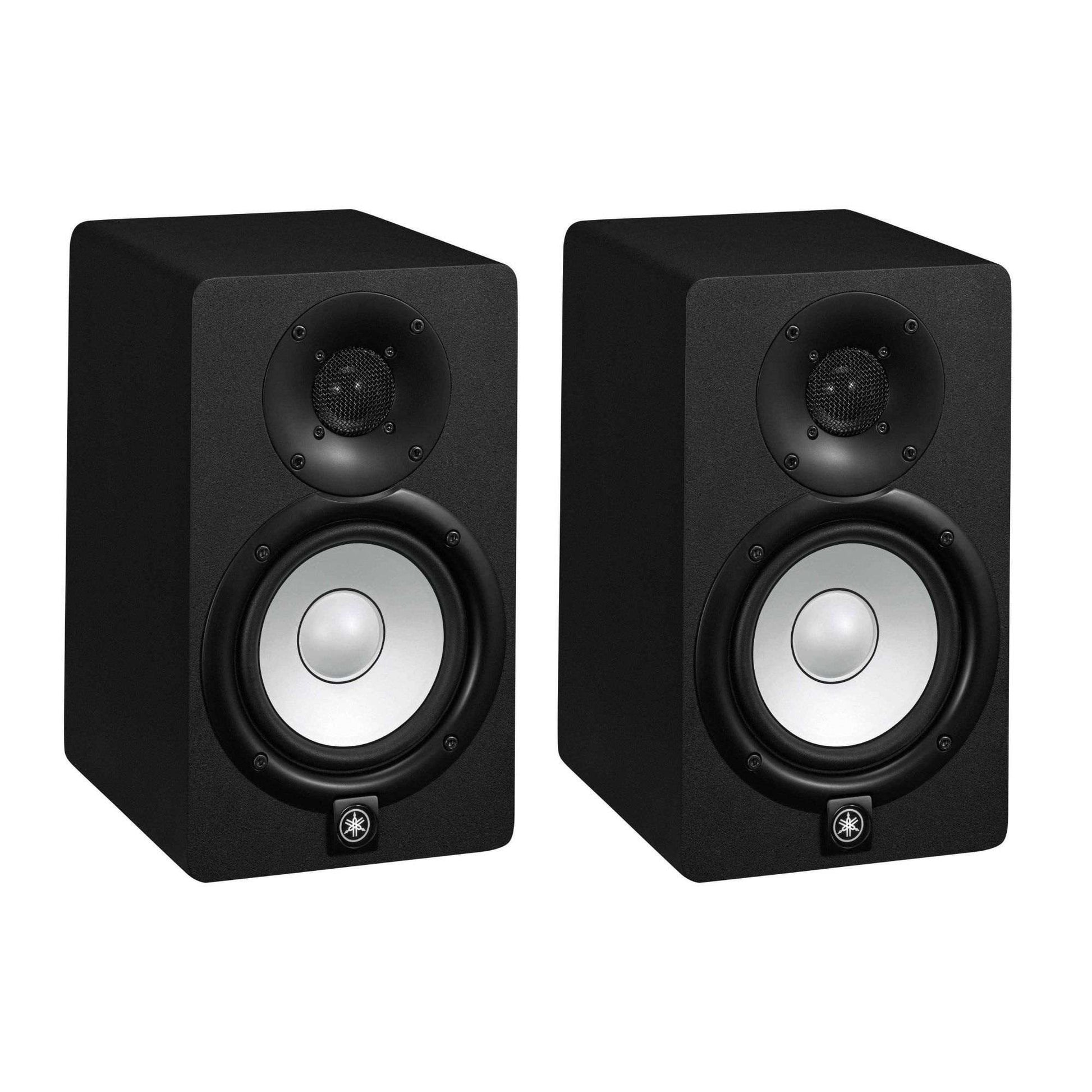

HS5MP (Matched Pair)

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals

YAMAHA

₱30,900.00 VAT INC.

₱30,900.00

UNIT: PAIR

Product Code: SKU:YAMH-HS5MP-CHN-328

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
54Hz - 30kHz (-10dB), 74Hz - 24kHz (-3dB) frequency response
45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

YAMAHA HS5MP (Matched Pair)

Key Specifications
Number of Speakers	2 (Matched Pair)
Speaker Type	2-way Bi-amp Powered Studio Monitor
Frequency Range (-10 dB)	54 Hz – 30 kHz
Components
LF Driver	5" Cone
HF Driver	1" Dome
Crossover	2 kHz
Output Power	70 W (LF: 45 W, HF: 25 W)
I/O Connectors	XLR3-31 (Balanced), PHONE (Balanced)
Power Consumption	45 W
Enclosure Type	Bass-reflex
Cabinet Material	MDF
Dimensions (Each Speaker)
Width	170 mm / 6.7"
Height	285 mm / 11.2"
Depth	222 mm / 8.7"
Net Weight	5.3 kg / 11.7 lbs

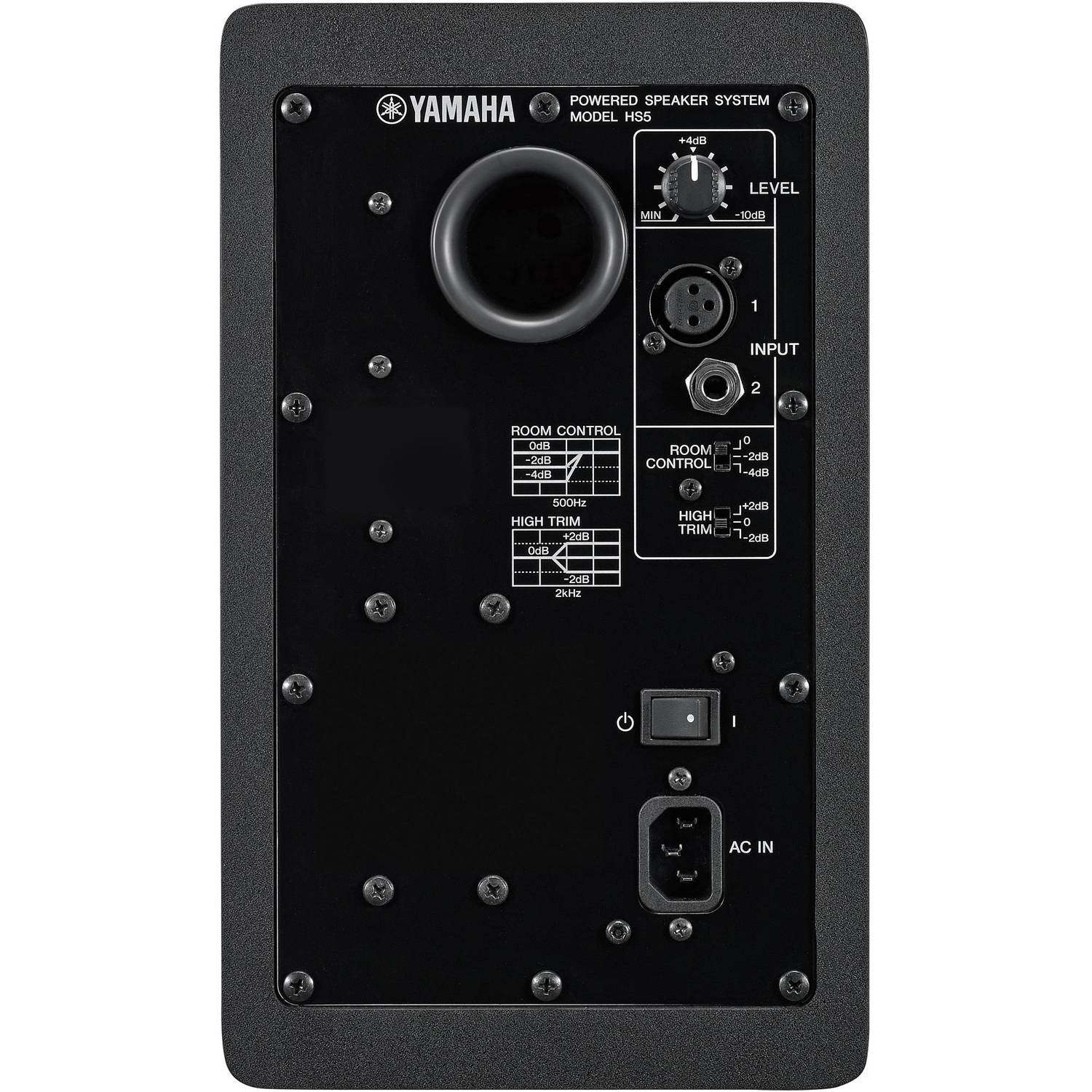

Controls
Level Control	+4 dB / Center Click
EQ	HIGH TRIM Switch (+/- 2 dB at HF) ROOM CONTROL Switch (0/-2/-4 dB under 500 Hz)
Product ID	CHS5MPUK
