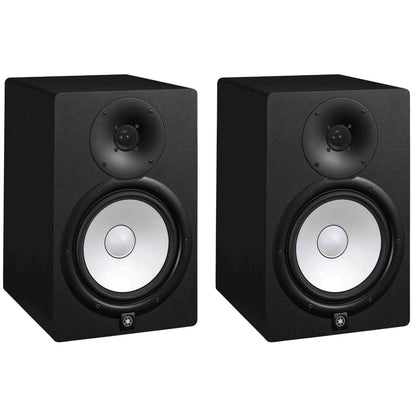

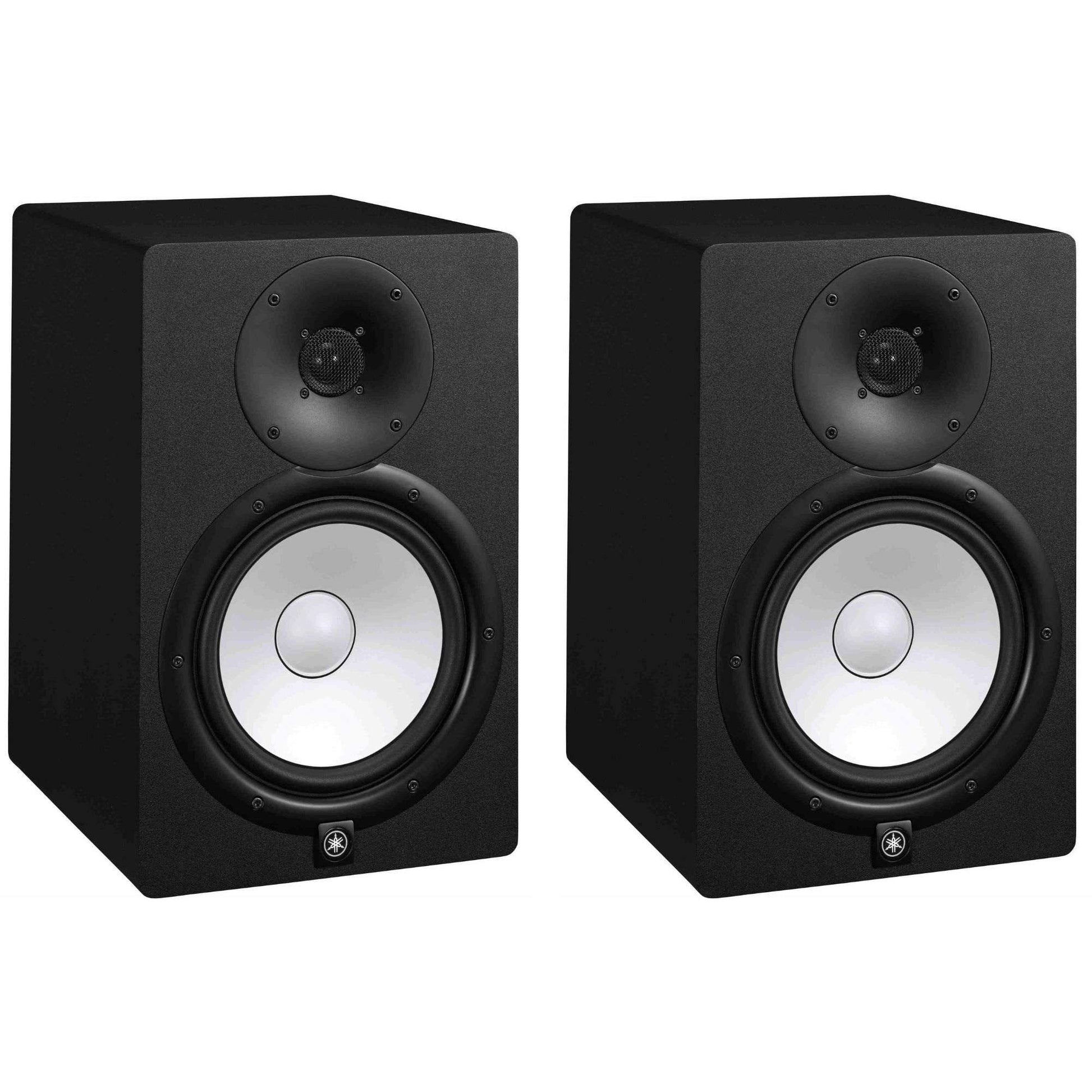

HS8MP (Macthed Pair)

2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
38Hz - 30kHz frequency response
75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals

YAMAHA

₱45,900.00 VAT INC.

₱45,900.00

UNIT: PIECE/S

Product Code: SKU:YAMH-HS8MP-CHN-065

2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
38Hz - 30kHz frequency response
75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
ROOM CONTROL and HIGH TRIM response controls
XLR and TRS phone jack inputs accept balanced or unbalanced signals

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

YAMAHA HS8MP (Macthed Pair)

Key Specifications
System Type	2-Way Bi-Amped Powered Studio Monitor
Frequency Response	38 Hz – 30 kHz
Crossover Frequency	2 kHz
Transducers
LF Driver	8" (203 mm) Cone
HF Driver	1" (25 mm) Dome
Output Power	Total: 120 W LF: 75 W HF: 45 W
Input Sensitivity	-10 dBu / 10 kΩ

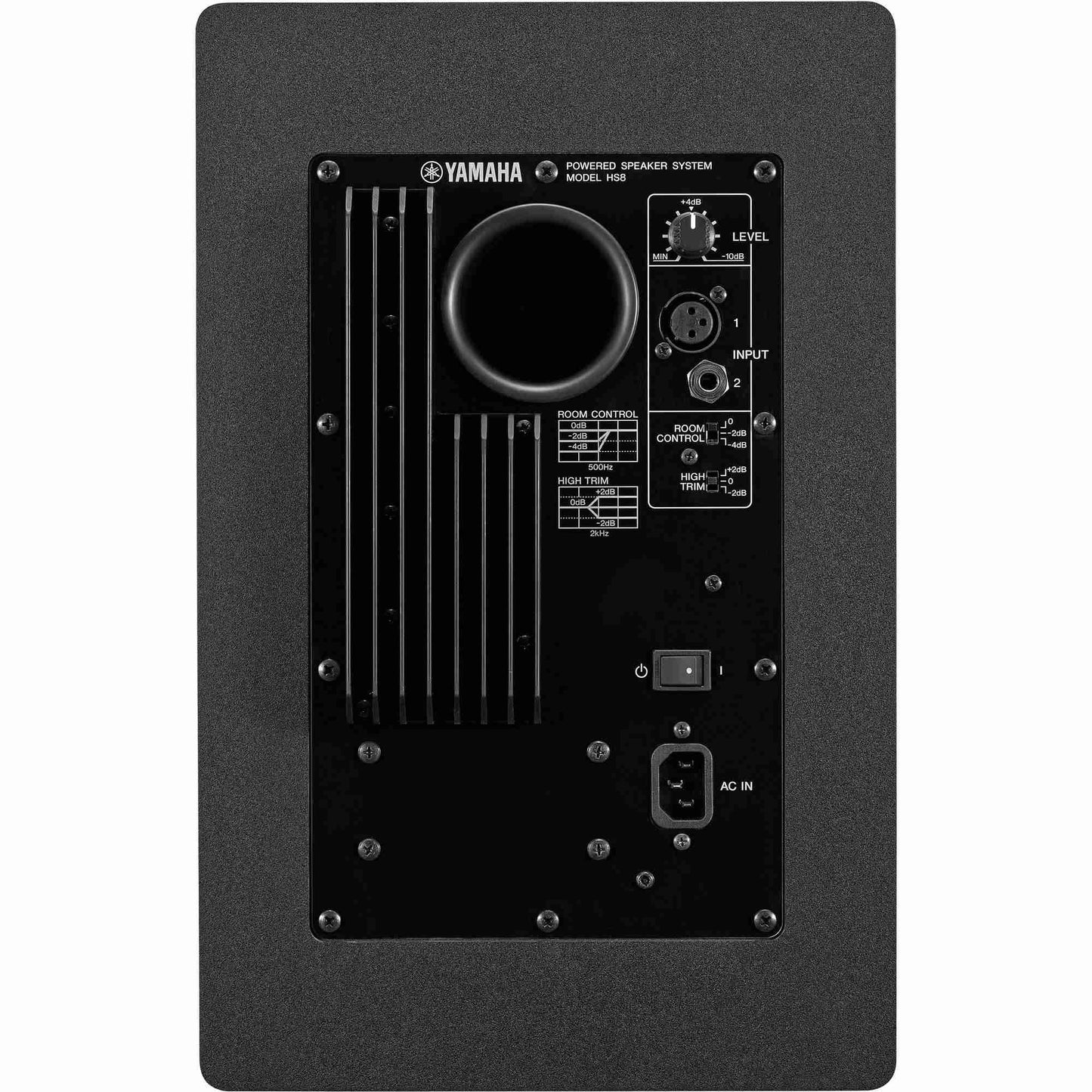

Inputs	1x Balanced XLR3-31 Type 1x 1/4" (6.35 mm) Balanced TRS
Controls
Level Control	+4 dB / Center Click
EQ	High Trim Switch (+/- 2 dB @ HF) Room Control Switch (0, -2, -4 dB under 500 Hz)
Indicators	1x Power On White LED
Power Consumption	60 W
Enclosure
Type	Bass-Reflex
Material	MDF
Dimensions & Weight
Dimensions (WxHxD)	9.8 x 15.4 x 13.1" (250 x 390 x 334 mm)
Weight	22.5 lb / 10.2 kg
Packaging Info
Package Weight	28.8 lb
Box Dimensions (LxWxH)	21 x 16.2 x 14.3"
