Key Specifications

Processing

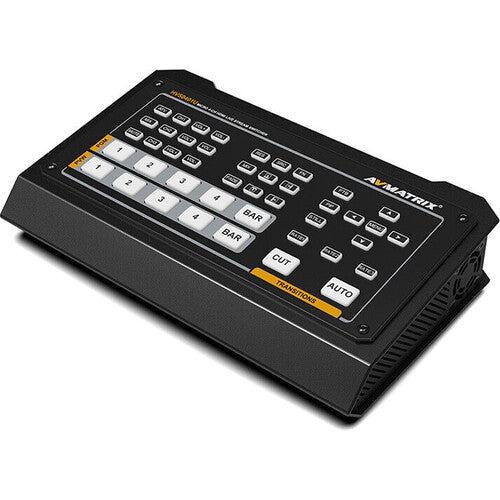

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Color Processing

RGB, YCbCr

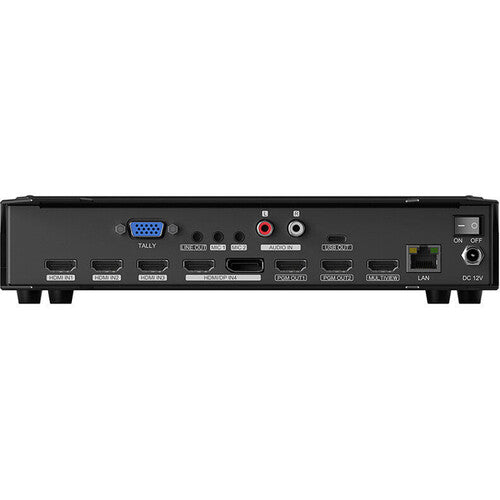

Input

Video Inputs

4 × HDMI Female, 1 × DisplayPort Female

Input Video Format

HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 720p at 24/25/30/50/59.94/60 fps, 576p at 50 fps, 576i / 625 lines at 50 fps, 480p at 59.94/60 fps, 480i / 525 lines at 59.94/60 fps

Audio Inputs

2 × 3.5 mm TRS Stereo Analog Female, 1 × 2RCA Stereo Analog

Input Audio Format

Analog

Output

Video Outputs

2 × HDMI Female (Program), 1 × HDMI Female (Monitor), 1 × USB-C (USB Video) Female (Program)

Output Video Format

HDMI: 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps; USB-C: 1080p at 60 fps

Audio Outputs

1 × 3.5 mm TRS Stereo Analog Female (Loop Output)

Connectivity

Other I/O

1 × RJ45 LAN Input, 1 × DE-15/DB-15 Tally Input

HDCP Support

No

Hardware

Wireless

No

Power

Power I/O

1 × Barrel Connector (12 VDC at 1.2 A) Input

Power Consumption

14.4 W

General

Operating Conditions

12 to 92°F / -20 to 60°C

Storage Conditions

-22 to 158°F / -30 to 70°C

Dimensions

9.4 × 5.5 × 1.7" / 23.8 × 14 × 4.4 cm

Weight

1.7 lb / 785 g

Packaging Information

Package Weight

3.005 lb

Box Dimensions

13.3 × 8.4 × 3.6"
