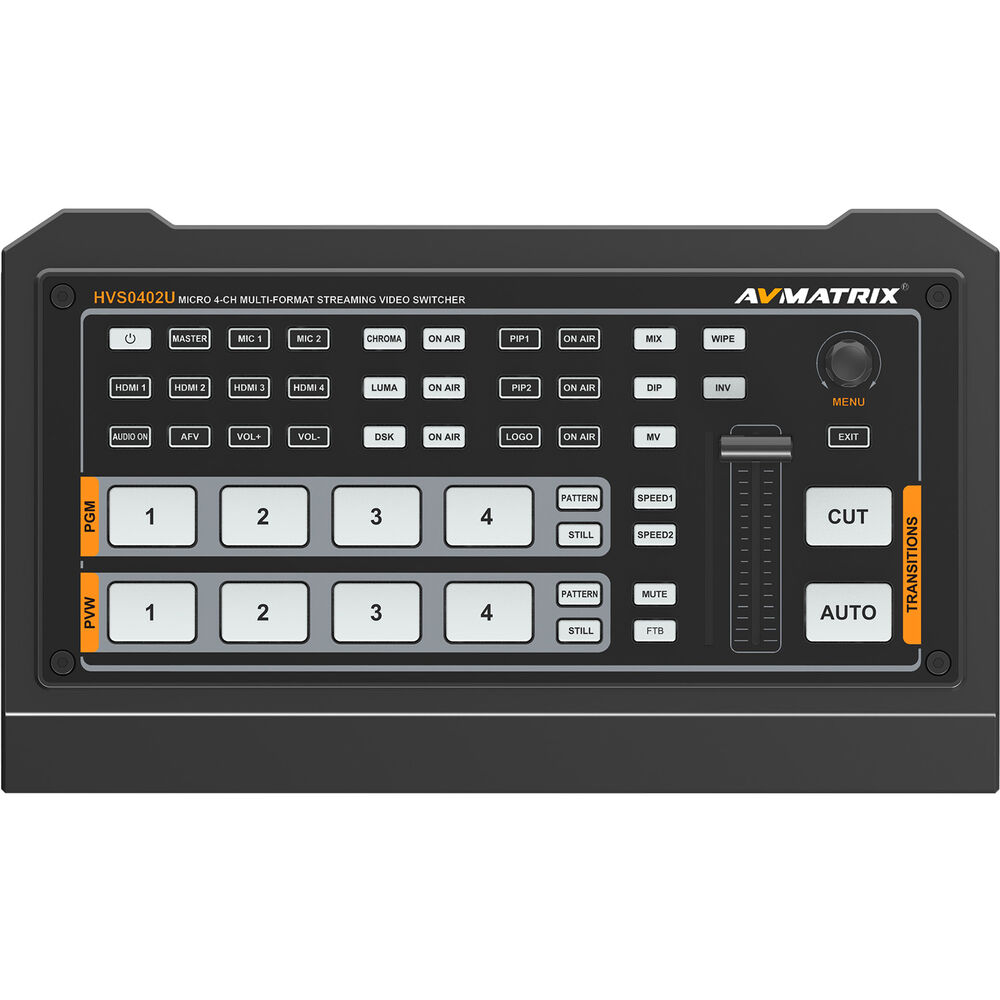

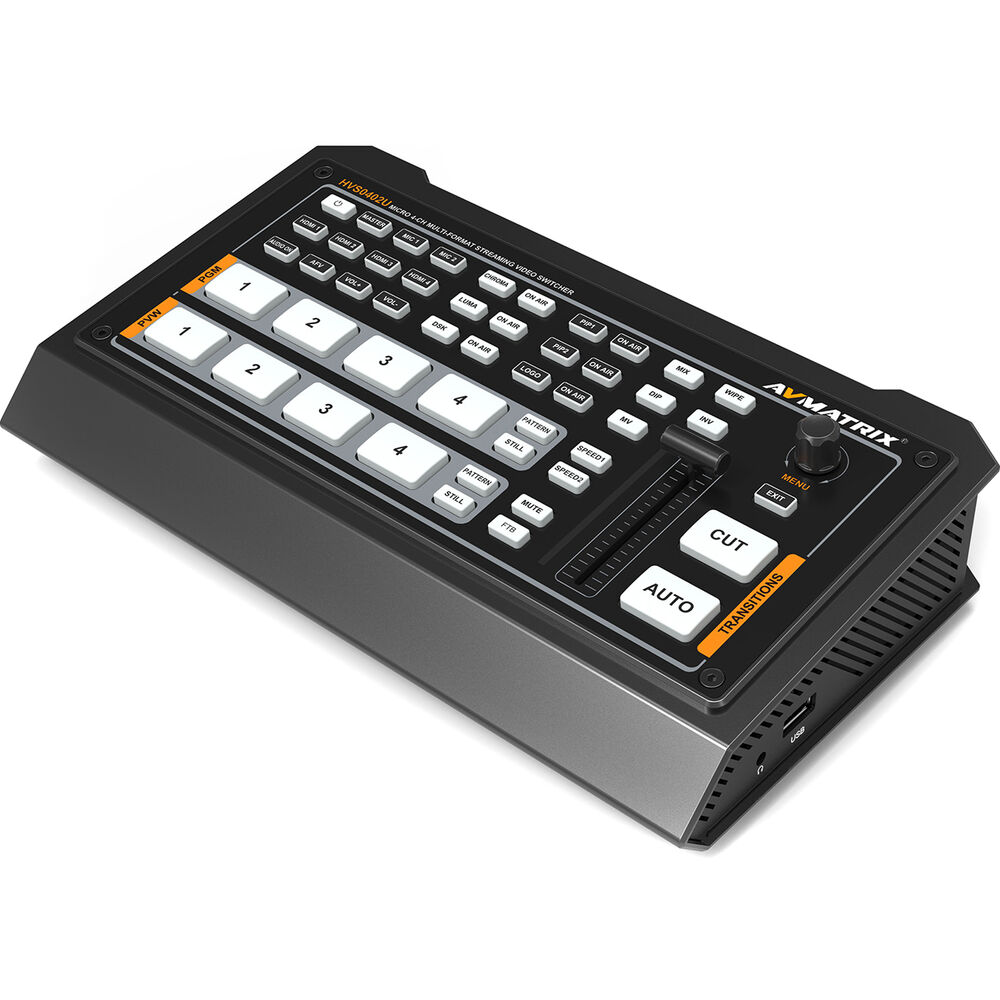

Key Specifications

Mix Effects

M/E Layers

2 M/E

Effect Types

1 × Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Graphics Memory

32 Images

Downstream Keys

1 × Chroma, Luma, DVE

Generators

2 × Color, 1 × Pattern

Audio Mixing

2-Channel Mixing

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

YUV, RGB

Input

Number of Video Input Sources

4

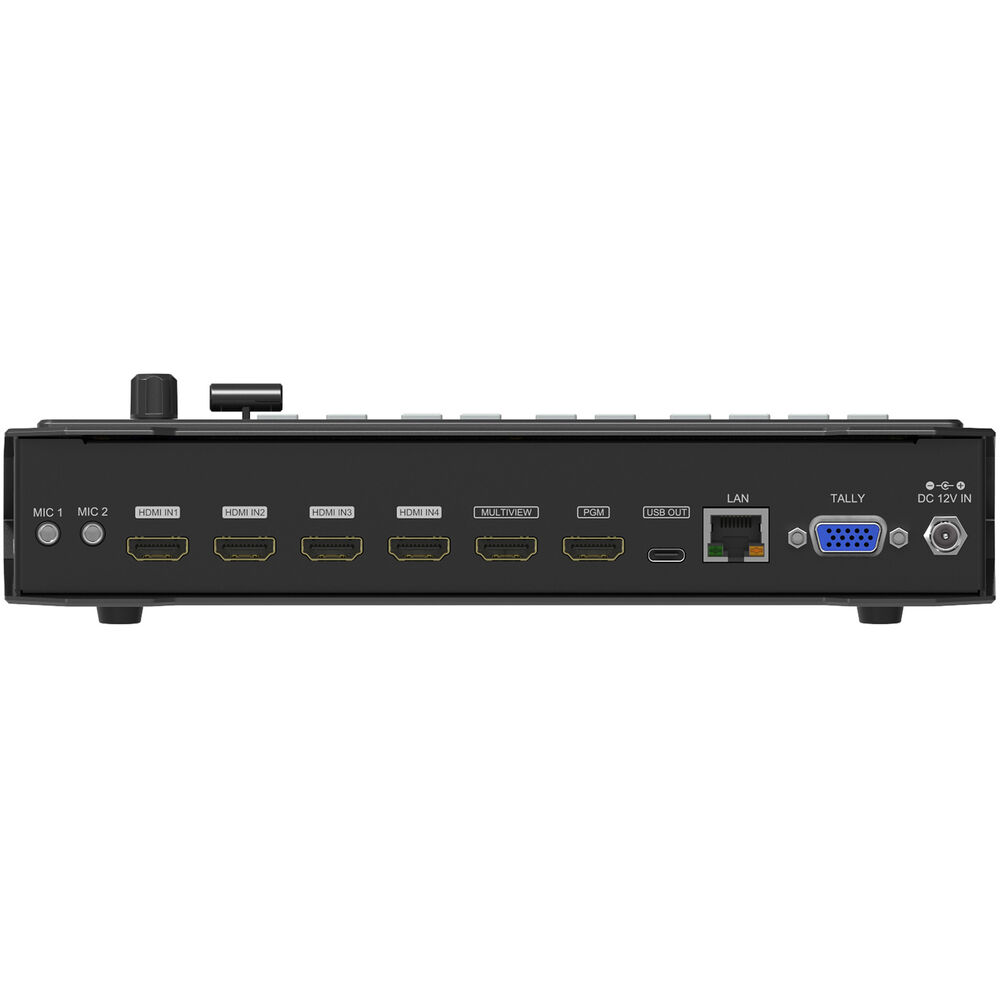

Video Inputs

4 × HDMI Female

Input Video Format

HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps, 576p at 50 fps, 576i / 625 lines at 50 fps, 480p at 59.94/60 fps, 480i / 525 lines at 59.94/60 fps

Audio Inputs

2 × 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (Per Input)

Output

Video Output Channels

2

Video Outputs

1 × HDMI Female (Program), 1 × HDMI Female (Monitor), 1 × USB-C (USB Video) Female

Output Video Format

HDMI: 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps; USB-C: 1080p at 60 fps

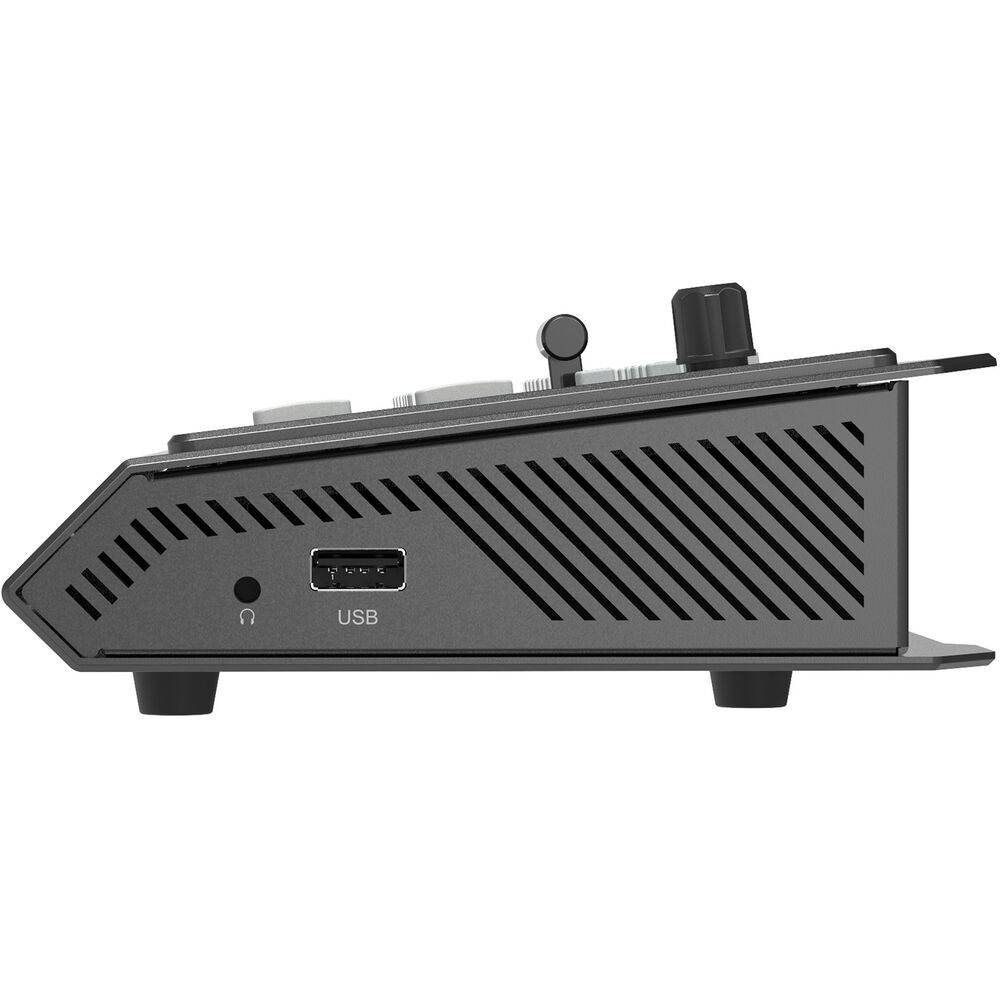

Audio Outputs

1 × 3.5 mm TRS Stereo Analog Female (Loop Output)

Output Audio Format

Analog

Embedded Audio Output

HDMI: 2-Channel (Per Output), USB-C: 2-Channel (Per Output)

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1 × HDMI

Connectivity

Other I/O

1 × DE-15/DB-15 Tally Input, 1 × RJ45 LAN Input/Output, 1 × USB-A Firmware/Service Input

Video Standard Compliance

SMPTE 259M / 292M / 424M

HDCP Support

No

IP Encoding/Decoding

Compatible Services

Facebook Live, Livestream, Skype, Twitch, YouTube Live

Internal Recording

Recording Media

1 × USB-A 2.0 (External Drives)

Hardware

Processor

Not Specified by Manufacturer

Wireless

No

Power

Power I/O

1 × Barrel Connector (7 to 24 VDC) Input

Power Consumption

Device: 12 VDC at 1 A (12 W), Power Supply: 12 VDC at 2 A

General

Operating Conditions

-20°C to 60°C (12°F to 92°F)

Storage Conditions

-30°C to 70°C (-22°F to 158°F)

Dimensions

9.63 × 5.64 × 1.75" / 24.45 × 14.32 × 4.45 cm

Weight

2.3 lb / 1 kg

Packaging Information

Package Weight

3.23 lb

Box Dimensions

13 × 7.7 × 3.5"
