HX-7

1 3

Key Features

High power handling
Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
0° mode facilitates the most effective line array set-up
Easily adjustable vertical dispersion angle

HX-7

HX-7

TOA

₱85,200.00 VAT INC.

₱85,200.00

UNIT: PIECE/S

Product Code: SKU:TOA-HX7-CHN-258

Key Features

High power handling
Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
0° mode facilitates the most effective line array set-up
Easily adjustable vertical dispersion angle

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

Add to Quotation

View full details

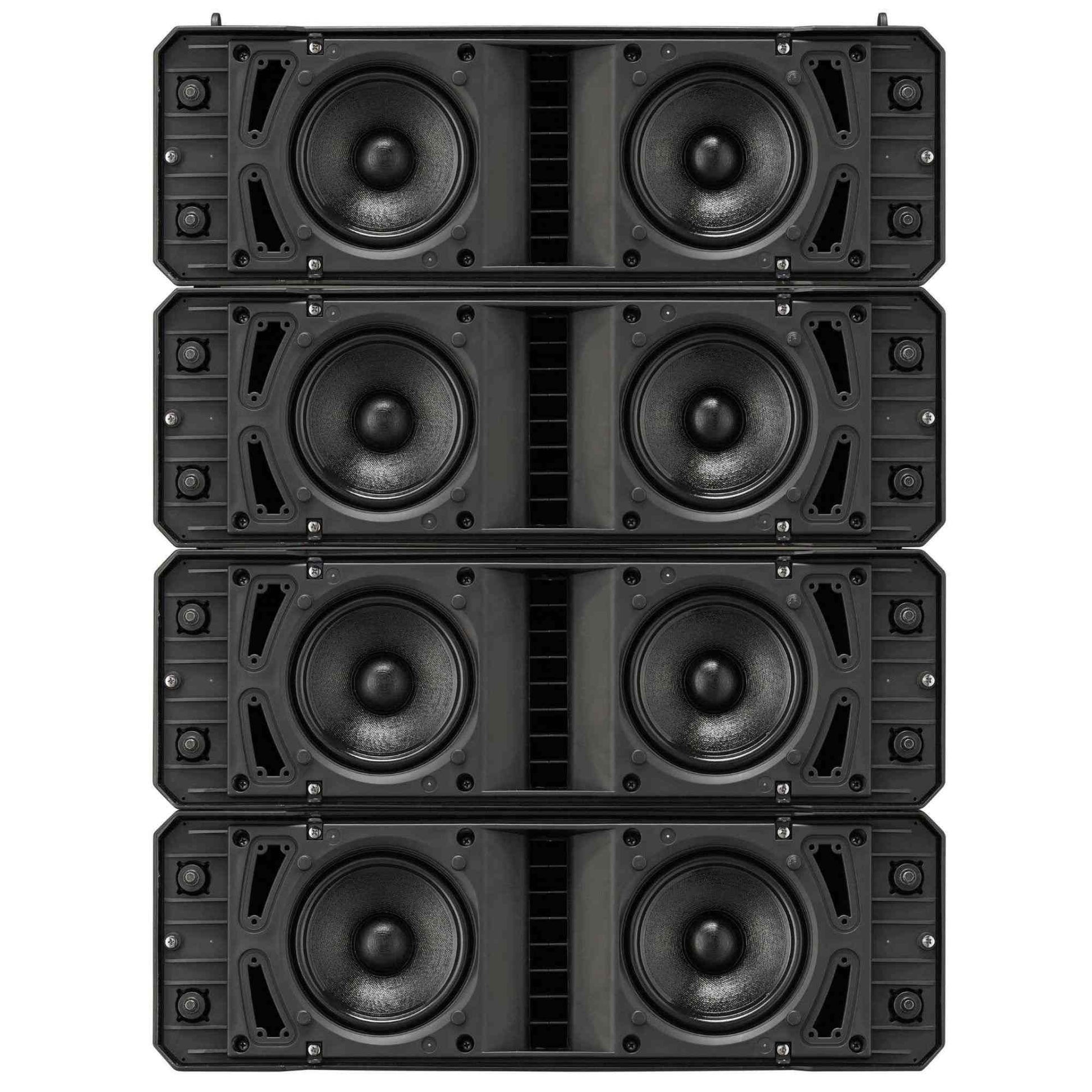

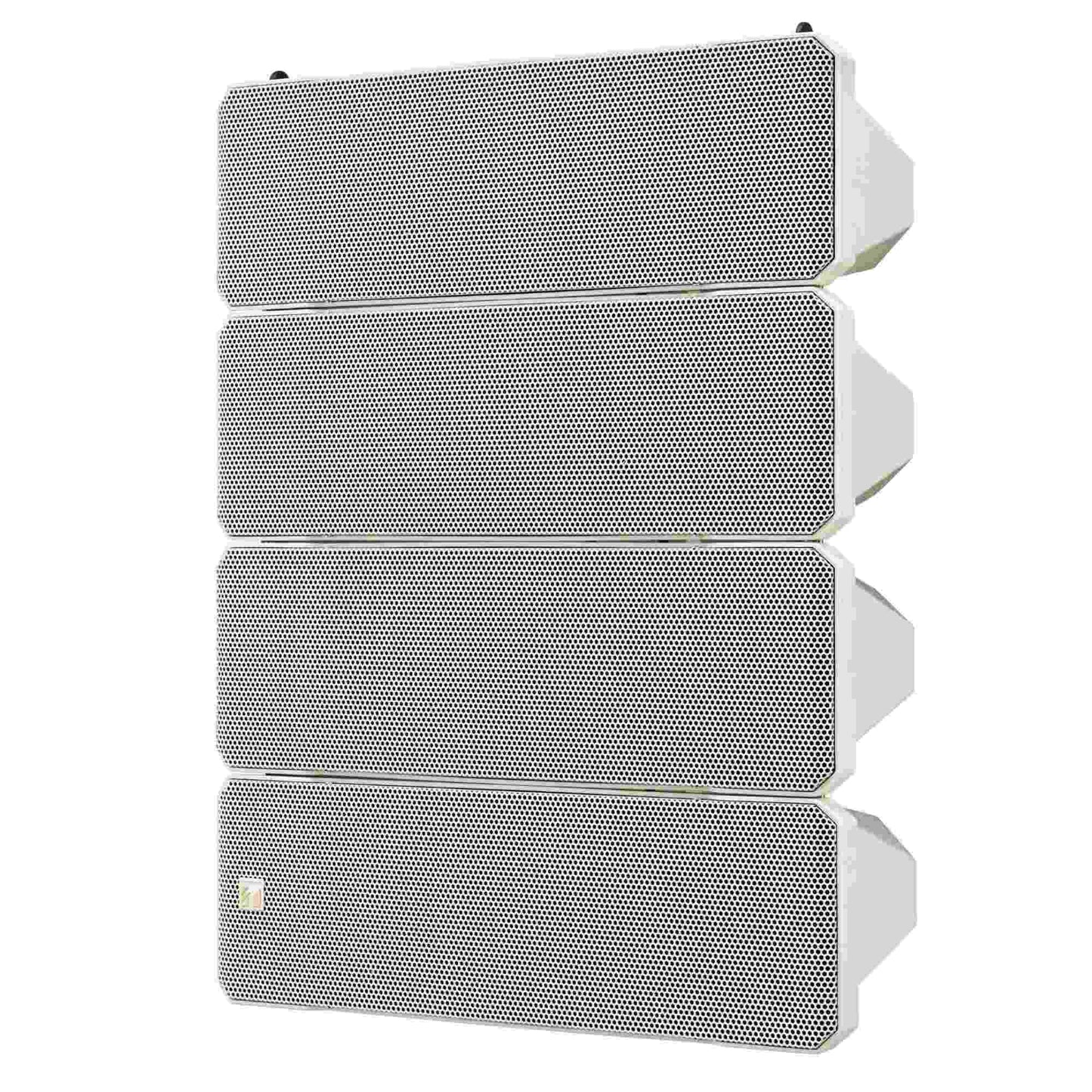

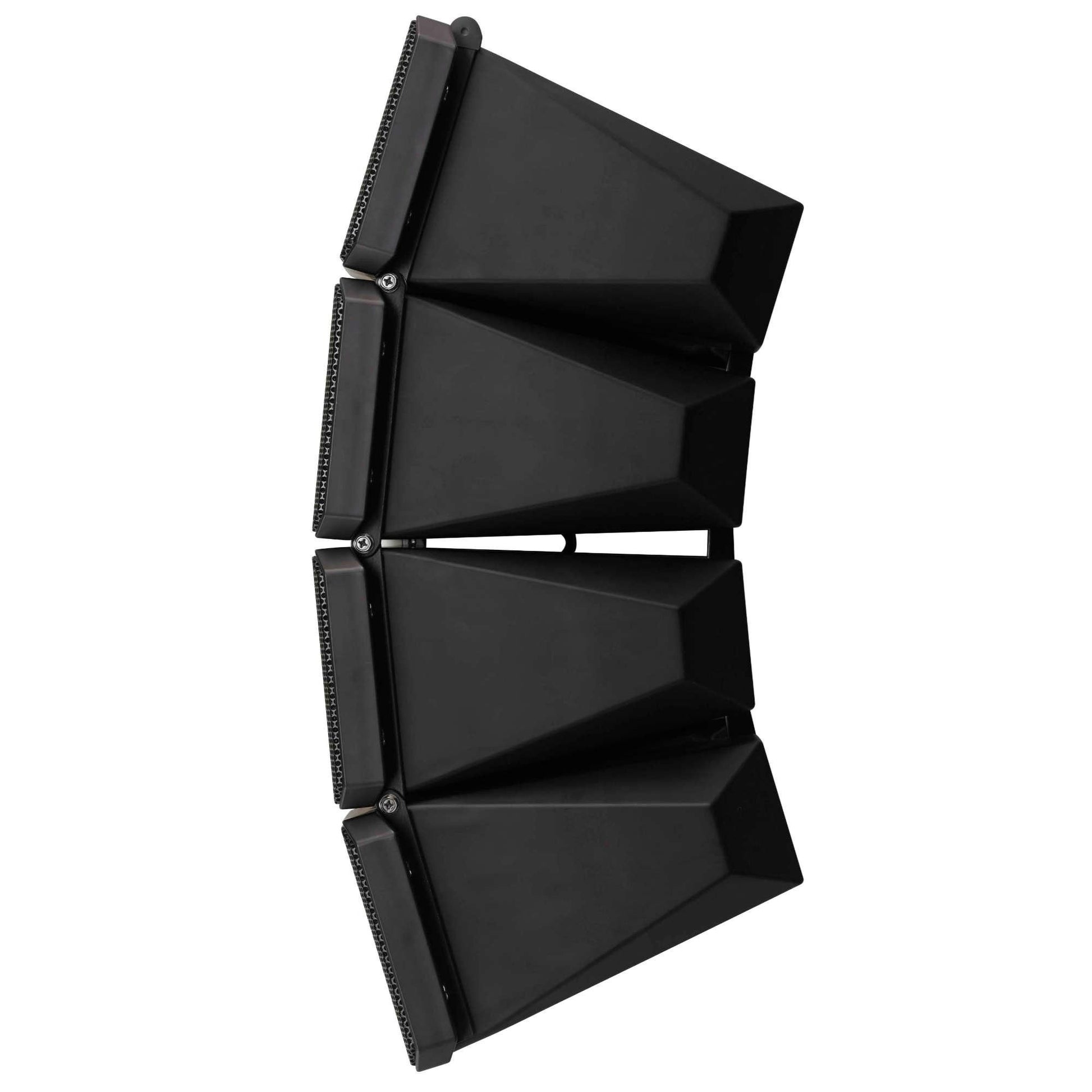

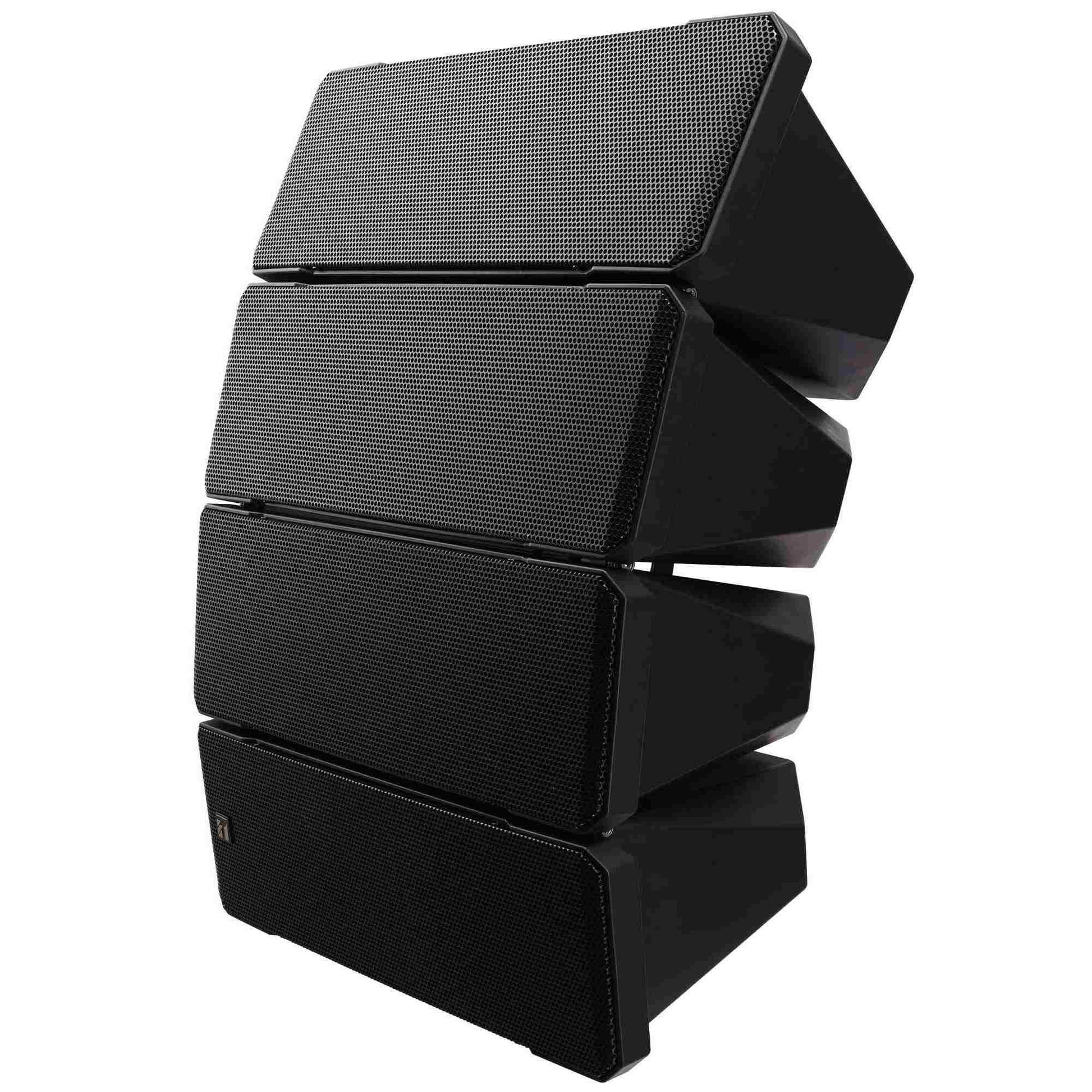

TOA HX-7

TOA HX-7

Key Specifications
Product Model	TOA HX-7B / HX-7W
Product Type	Variable Dispersion Compact Line Array
Power Handling	750 W (Continuous Program) 250 W (Continuous Pink Noise)
Nominal Impedance	8 Ω
Acoustic Performance
Frequency Response	75 Hz to 20,000 Hz
Sensitivity	100 dB (1 W, 1 m)
Speaker Components	LF: 13 cm cone-type x 8 HF: Wavefront control horn with compression driver x 4
Crossover Frequency	2,000 Hz
Physical & Environmental
Dimensions	497 (W) x 664 (H) x 274 (D) mm
Weight	30 kg (66.14 lbs)
Operating Temp	-10°C to +50°C
Material/Finish	Polypropylene resin, signal black (RAL 9004)

TOA HX-7 Accessories

No accessories available.
