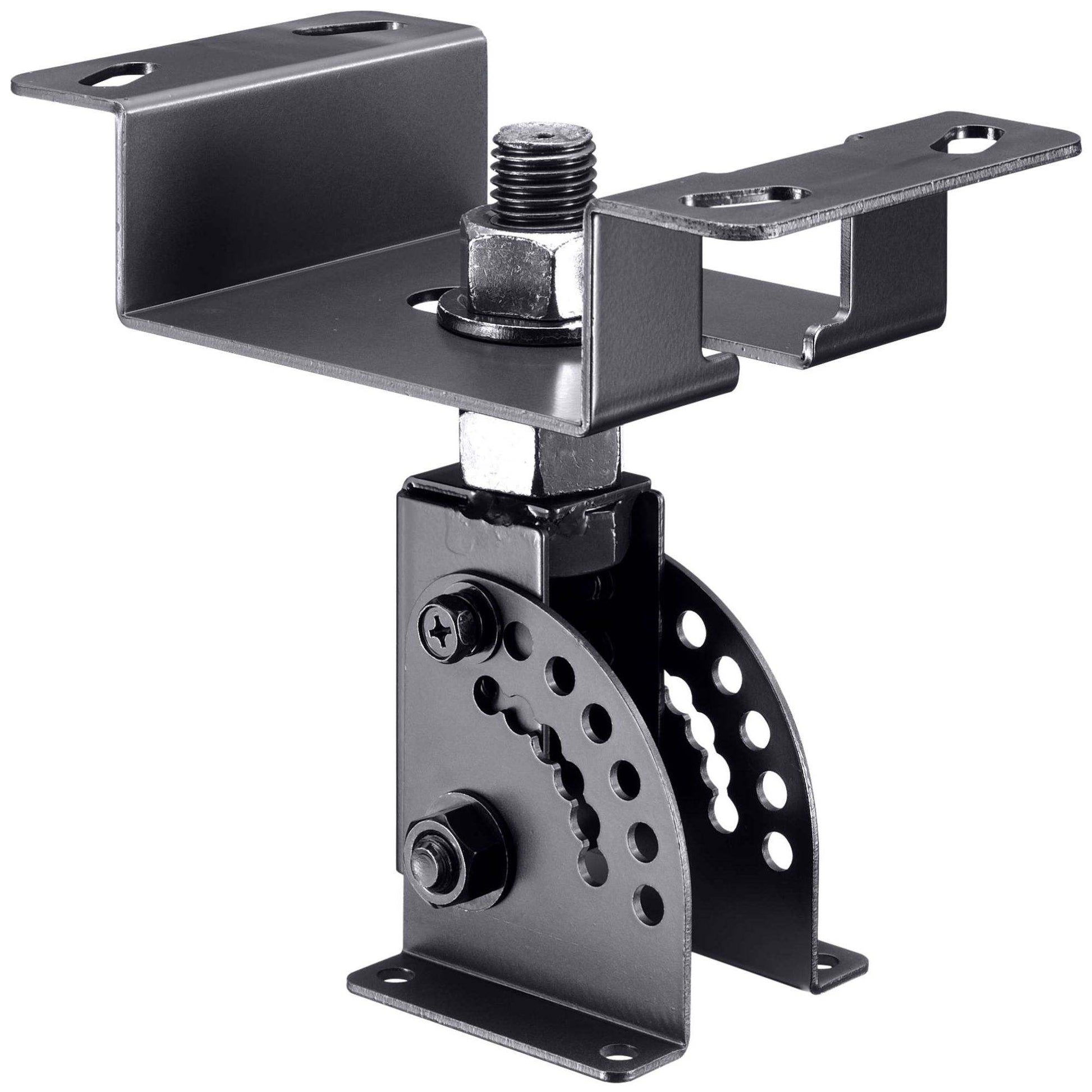

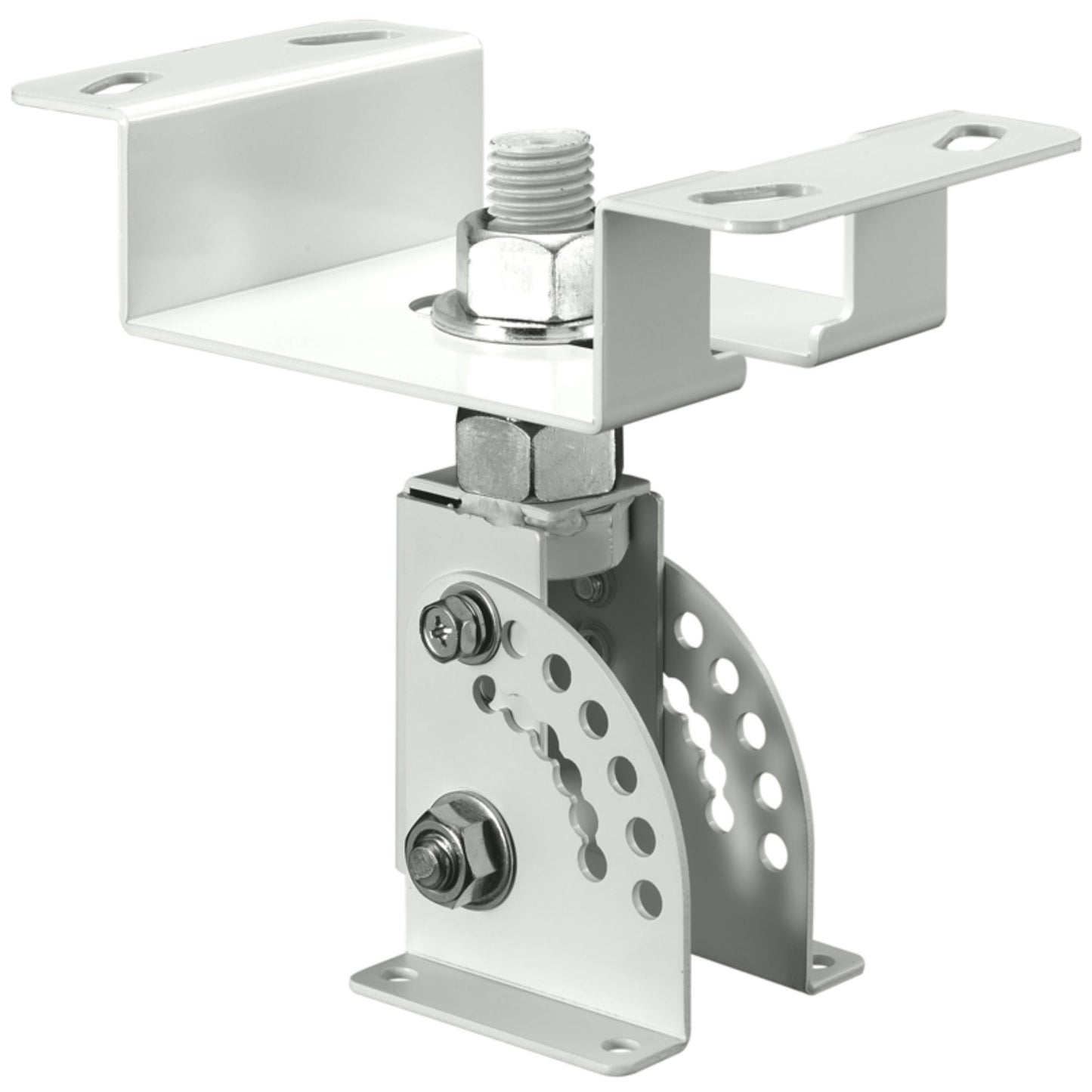

The HY-CW1B is designed to be used exclusively to mount the HX-5 series speaker system to a ceiling. The speaker can be rotated 360゜ horizontally. It can also be tilted vertically up to 82.5゜ when suspended horizontally, and depending on the speaker directivity mode, up to 67.5゜ (for 60゜ mode) or 75゜ (for 15゜, 30゜ or 45゜ mode) when suspended vertically. This bracket is designed for indoor use.
TOA HY-CW1
Key Specifications
Component Type
Acoustic Back Can / Rear Enclosure
Material
Steel Plate
Finish
Black / White, Semi-gloss, Paint
Dimensions
120 (W) × 200 (H) × 220 (D) mm
Weight
2 kg (4.41 lbs)
Included Accessories
M8 Speaker Mounting Bolts × 4 (with washers)
TOA HY-CW1 Accessories
No accessories available.
