Key Specifications

Supported Formats

MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy

Recording Modes

Up to DCI 4K at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps

Max Video Output

4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC up to DCI 4K

Video I/O

12G-SDI / HDMI / SMPTE LEMO Fiber

Audio I/O

1x 1/8" / 3.5 mm TRRS Headphone/Mic

Media Support

Supported Formats

MOV / ProRes 422 / ProRes 422 HQ / ProRes 422 LT / ProRes 422 Proxy

Video

Recording Modes

4096 x 2160 at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps

Video Output

4:2:2 10-Bit via HDMI / RJ45 / SDI/BNC
4096 x 2160 at 24.00/25/29.97/30.00/50/59.94/60.00 fps
3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps

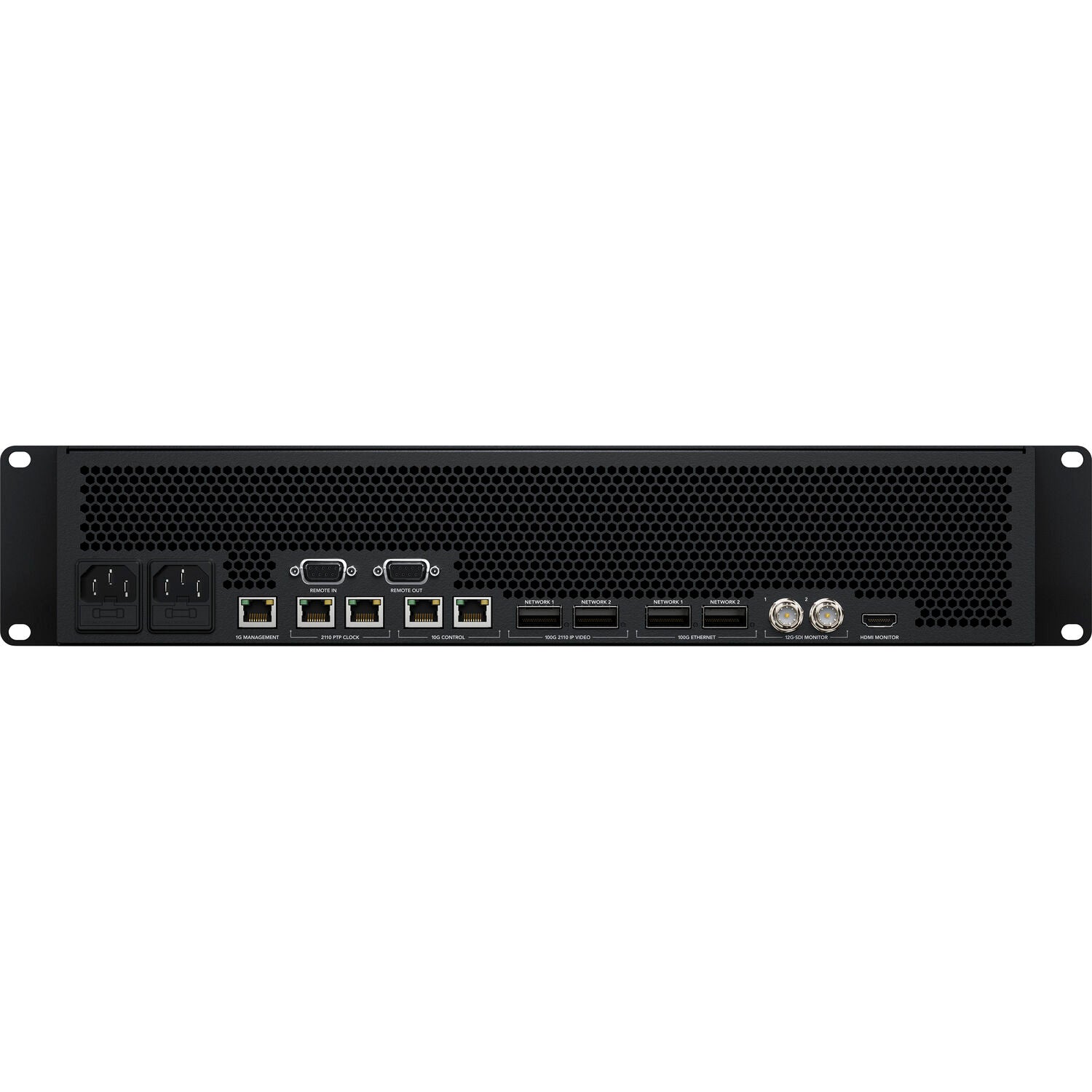

Connectivity

Video I/O

2x SMPTE LEMO Fiber SMPTE 2110 Input
2x SMPTE LEMO Fiber SMPTE 2110 Output
2x BNC (12G-SDI) Monitor Output
1x HDMI Monitor Output

Audio I/O

1x 1/8" / 3.5 mm Stereo Output

Power

Power I/O

2x IEC C13/C14 Input

Input Power

100 to 240 VDC

General

Display

2.2" / 5.6 cm LCD

Rack Mountable

Yes, 2 U

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Storage Conditions

-4 to 113°F / -20 to 45°C up to 90% Humidity

Certifications

IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10

Dimensions (W × D × H)

19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm
