Key Specifications

Media Support

Supported Formats

H.264 / MOV

Recording Modes

4096 × 2160p at 23.98 / 24.00 / 25 / 29.97 / 30.00 fps
3840 × 2160p at 23.98 / 24.00 / 25 / 29.97 / 30.00 fps
2048 × 1080p at 23.98 / 24.00 / 25 / 29.97 / 30.00 fps
1920 × 1080p at 23.98 / 24.00 / 25 / 29.97 / 30.00 / 50 / 59.94 / 60.00 fps
1920 × 1080i at 50 / 59.94 / 60.00 fps
1920 × 1080PsF at 23.98 / 24.00 / 25 / 29.97 / 30.00 fps
1280 × 720 at 50 / 59.94 / 60.00 fps
720 × 576i at 50 fps
720 × 480i at 59.94 fps

Maximum Recording Resolution

Up to DCI 4K

Video Output

Output Resolution

4096 × 2160
3840 × 2160p
1920 × 1080p
1920 × 1080i
1280 × 720
720 × 576i
720 × 480i

Maximum Video Output

Up to DCI 4K via HDMI / SDI/BNC

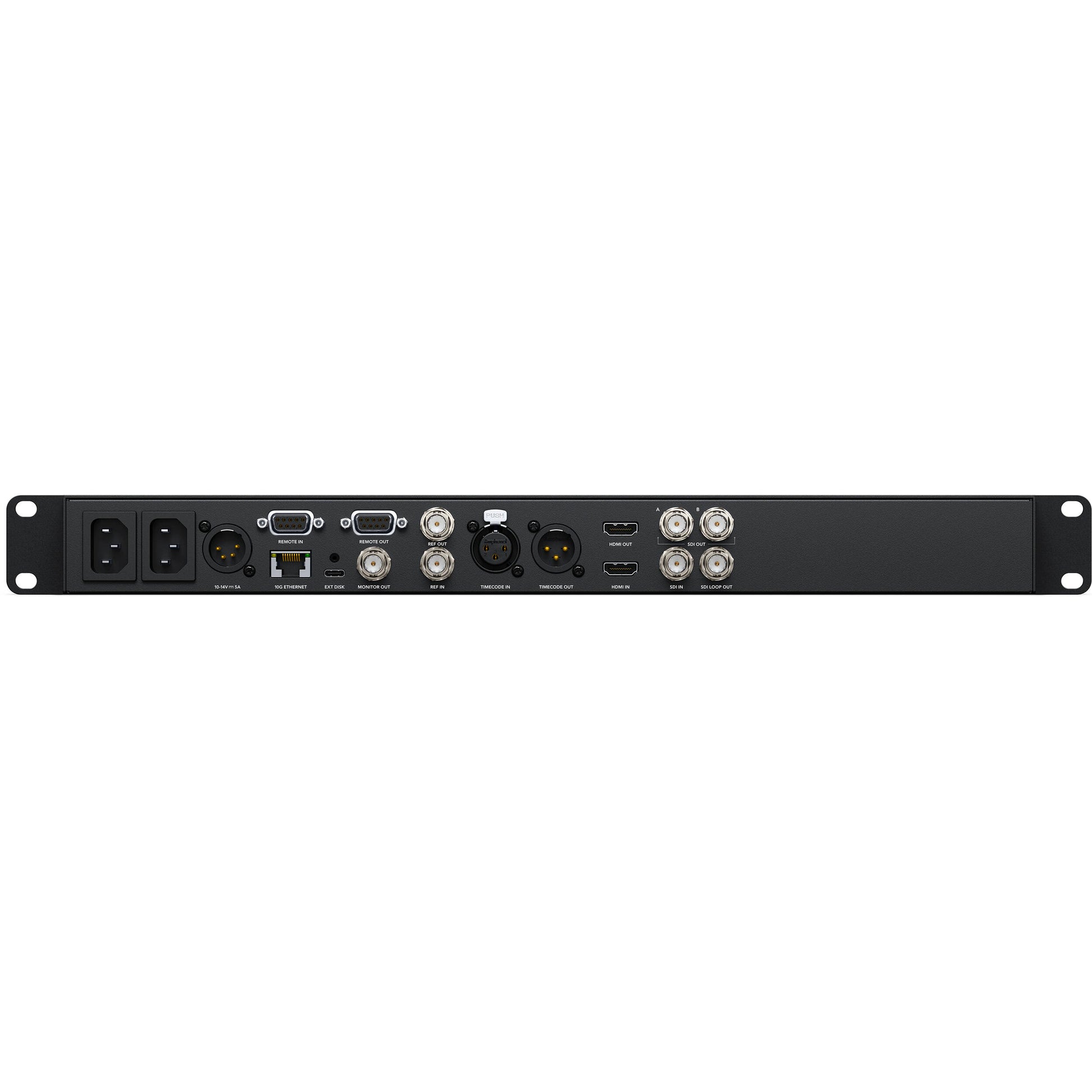

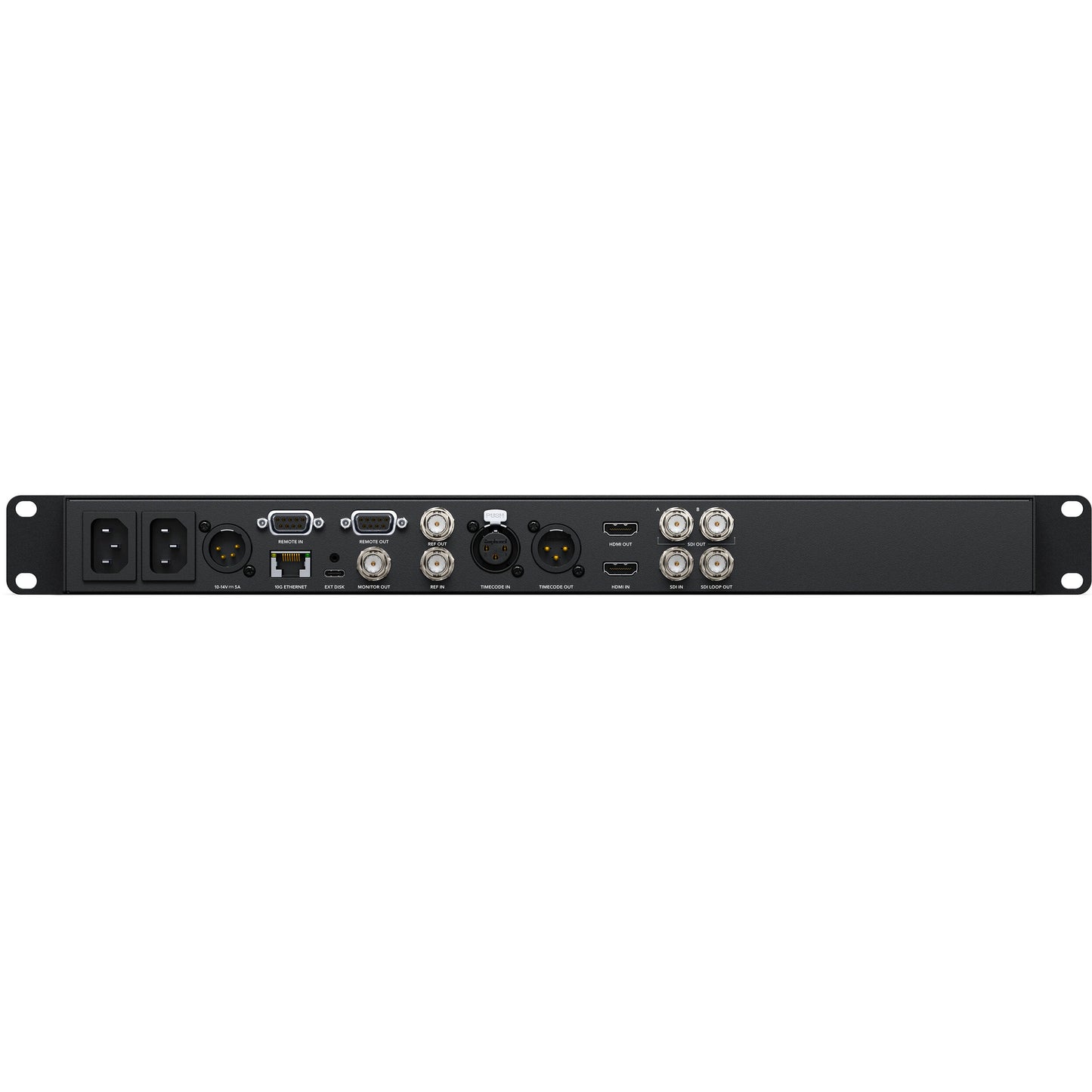

Video Connectivity

Video Inputs

1 × BNC Input
1 × HDMI Input

Video Outputs

2 × BNC Output
1 × BNC Loop Output
1 × HDMI Output

Audio Connectivity

Audio Output

1 × 1/4" Stereo Headphone Output

Audio I/O Type

1/4" TRS Unbalanced Stereo

Control & Networking

RS-422 Control

2 × D-Sub 9-Pin Input/Output

Network Port

1 × RJ45 Input/Output

Wireless

No

Storage Media

Memory Card Slots

Dual Slot: SD / SDHC / SDXC
Dual Slot: NVMe SSD

Power

Power Input

1 × IEC C13/C14 Input
1 × XLR 4-Pin Input

General Specifications

Rack Mountable

Yes, 1U

Dimensions

19 × 9.3 × 1.74 in. (48.3 × 23.6 × 4.42 cm)

Weight

2.11 kg (4.65 lb)

Packaging Information

Package Weight

6.23 lb

Box Dimensions (L × W × H)

20.9 × 10.5 × 3.6 in.
