The Blackmagic Design HyperDeck Studio HD Pro is an updated 1 RU file-based deck that features the same functionality and control of professional tape decks in a digital design. This model updates the previous HyperDeck Studio models with several features including 6G-SDI support, two added SD card slots, USB-C recording output, timecode input and output, Ref input and output, a redesigned jog/shuttle wheel, Gigabit Ethernet, and a speaker on the front.
Mastering Recorder
All models record to H.264, ProRes, and DNx files, so are perfect for recording broadcast masters. You can even use PCM or AAC audio. You get everything you need to send shows to broadcasters and for uploading to YouTube.
Professional Broadcast Deck

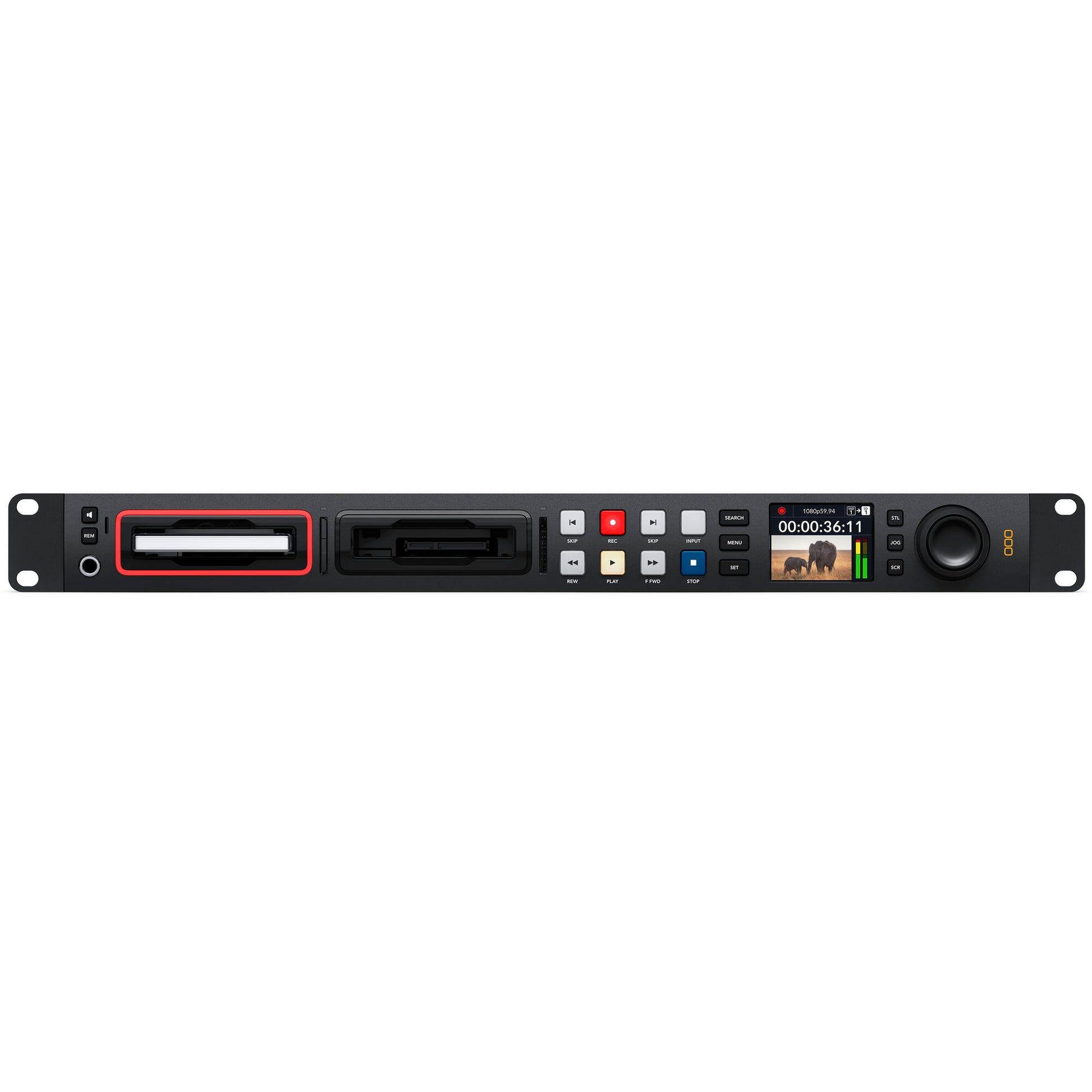

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features. The advanced models have new broadcast-style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast dec. With dual media slots, you can change cards without interrupting the recording. The advanced models even include a front headphone connection and speaker.
BLACKMAGICDESIGN Hyperdeck Studio HD Pro
Key Specifications
Supported Formats
H.264 / MOV
Recording Modes
Up to DCI 4K 23.98/24.00/25/29.97/30.00 fps
Max Video Output
via HDMI / SDI/BNC Up to DCI 4K
Video I/O
BNC / HDMI
Audio I/O
1/4" TRS Unbalanced Stereo
Media / Memory Card Slot
Dual Slot: SD/SDHC/SDXC Dual Slot: NVMe SSD
Media Support
Supported Formats
H.264 / MOV
Recording Modes
4096 x 2160p at 23.98/24.00/25/29.97/30.00 fps 3840 x 2160p at 23.98/24.00/25/29.97/30.00 fps 2048 x 1080p at 23.98/24.00/25/29.97/30.00 fps 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1920 x 1080PsF at 23.98/24.00/25/29.97/30.00 fps 1280 x 720 at 50/59.94/60.00 fps 720 x 576i at 50 fps 720 x 480i at 59.94 fps
Video Output
via HDMI / SDI/BNC 4096 x 2160 3840 x 2160p 1920 x 1080p 1920 x 1080i 1280 x 720 720 x 576i 720 x 480i
