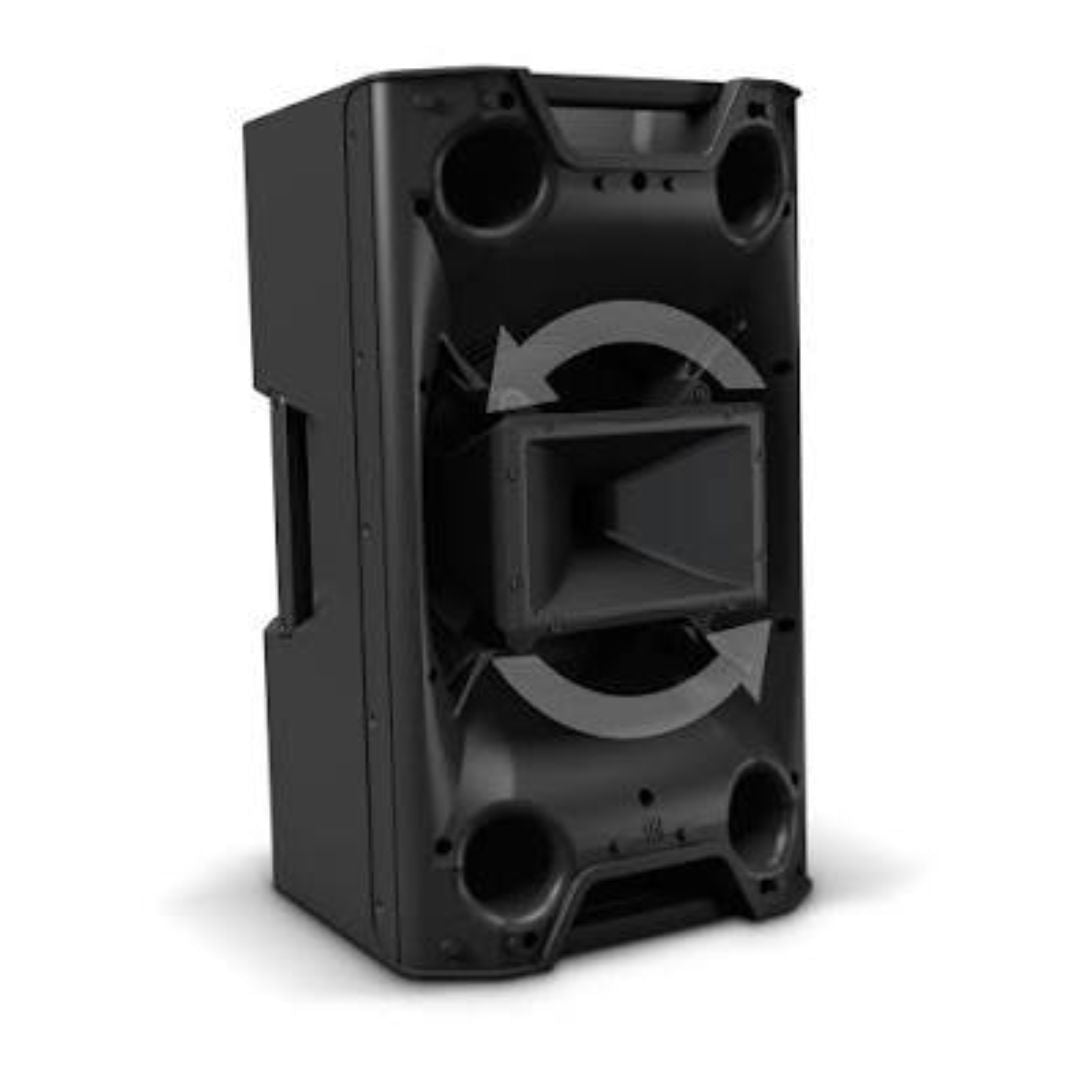

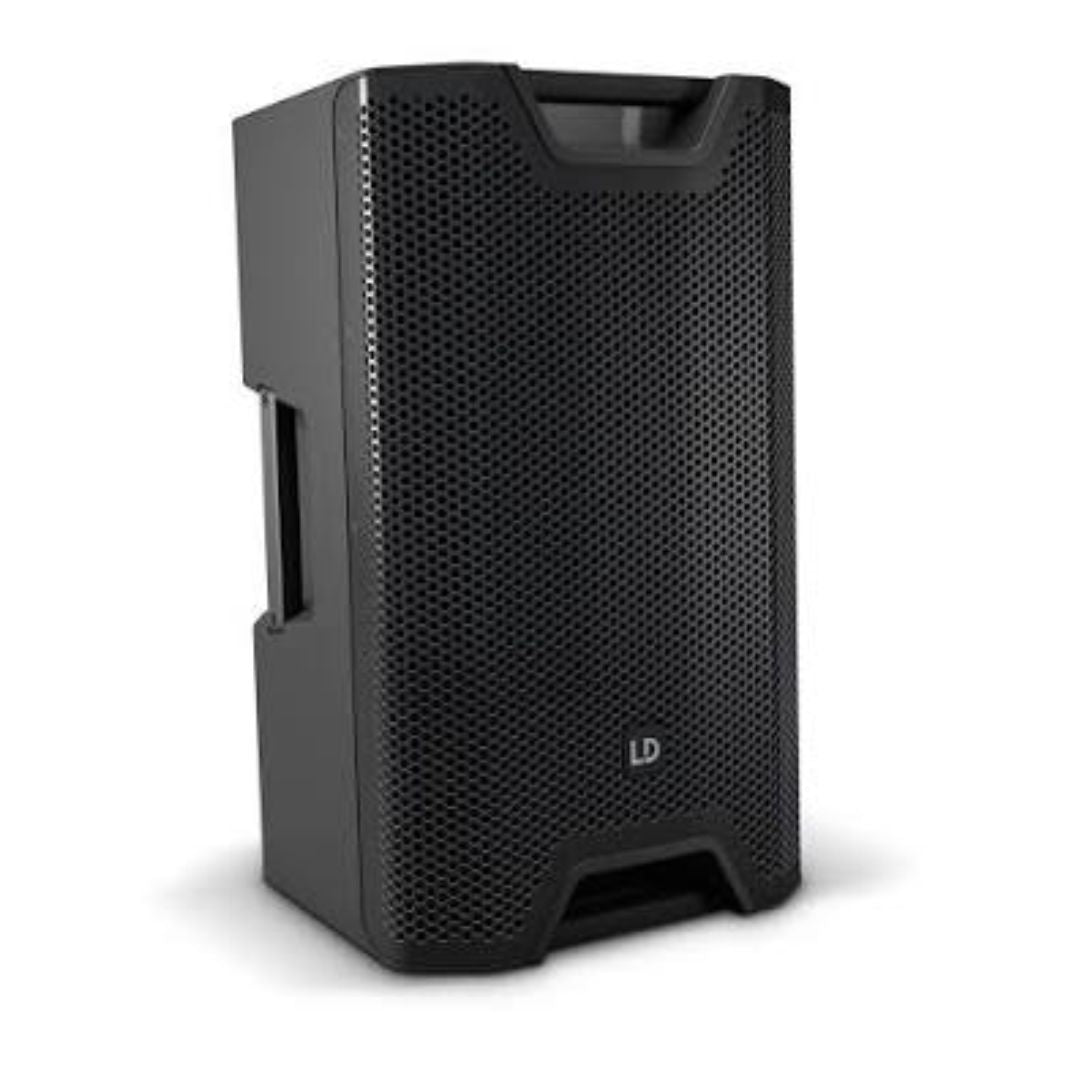

LD SYSTEMS ICOA 12
LD SYSTEMS ICOA 12
|
Key Specifications |
|
|
Product / Accessory Type |
Passive 2-Way Coaxial Loudspeaker / Stage Monitor |
|
Enclosure Material & Construction |
15 mm Polypropylene Cabinet (Bass-Reflex Design with Aluminum Front Grille) |
|
Floor Monitor Angle |
55° Stage Monitor Angle |
|
Mounting & Suspension Hardware |
36 mm Dual-Tilt Pole Socket (0° / 5° Flange), 6x M10 Suspension Flying Points |
|
Transport Handles |
2x Integrated Carrying Handles |
|
Product Color & Finish |
Black Finish |
|
Acoustic & Electrical Performance Specifications |
|
|
Power Handling Capacity |
250 W Continuous RMS / 1,000 W Peak |
|
Nominal System Impedance |
8 Ohms |
|
Sensitivity (1 W / 1 m) |
93 dB SPL |
|
Maximum Sound Pressure Level (SPL) |
123 dB Peak SPL (Sine Burst, Fullspace/1 m, THD ≤10%) |
|
Frequency Response |
55 Hz to 20,000 Hz |
|
Nominal Coverage Dispersion (H×V) |
90° Horizontal x 50° Vertical |
|
Crossover Frequency |
2,000 Hz (2.00 kHz) |
|
Speaker Component Specifications |
|
|
Low-Frequency Transducers (Bass Driver) |
1x 304.80 mm (12.00") Custom Woofer with Ferrite Magnet (Coaxial Configuration) |
|
High-Frequency Transducers (Tweeter) |
1x 25.40 mm (1.00") Compression Driver / Tweeter with 35.56 mm (1.40") Voice Coil & Ferrite Magnet |
|
Connectivity Specifications |
|
|
Audio Input Connectors |
1x Input: SpeakON / Standard 4-Pole Male Connector |
|
Audio Output / Thru Connectors |
1x Output / Link: SpeakON / Standard 2-Pole Male Connector |
|
Environmental Operating Limits |
|
|
Operating Temperature Range |
0 °C to 40 °C (32 °F to 104 °F) |
|
Operating Humidity Limits |
Up to 80% Relative Humidity (Non-Condensing) |
|
Dimensions & Weight Specifications |
|
|
Product Dimensions (W×H×D) |
375 mm x 635 mm x 396 mm (14.76" x 25.00" x 15.59") |
|
Product Net Weight |
19.80 kg (43.65 lbs) |
