Key Specifications

Product / Accessory Type

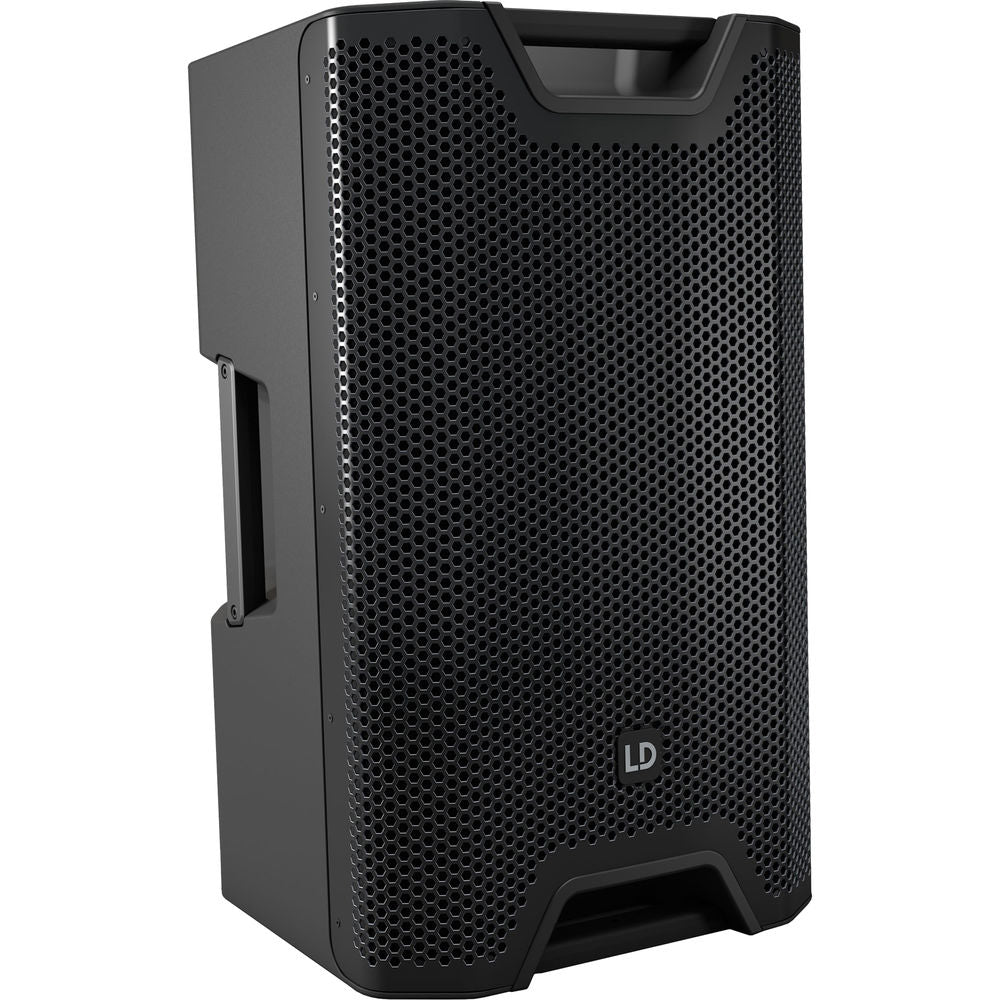

Active 2-Way Coaxial Loudspeaker / Stage Monitor

Enclosure Material & Construction

15 mm Polypropylene Cabinet (Bass-Reflex Design with Aluminum Front Grille)

Floor Monitor Angle

55° Stage Monitor Angle

Mounting & Suspension Hardware

36 mm Dual-Tilt Pole Socket (0° / 5° Flange), 6x M10 Suspension Flying Points

Transport Handles

4x Integrated Carrying Handles

Product Color & Finish

Black Finish

Acoustic & Electrical Performance Specifications

Amplifier Output Power

1,200 W Peak Output / 300 W Continuous RMS

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

126 dB Peak SPL

Frequency Response

50 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

90° Horizontal x 50° Vertical

Crossover Frequency

2,000 Hz (2.00 kHz)

Amplifier Protection Systems

Overheating Protection, Overvoltage Protection, Multiband Limiter, Overload Protection

Speaker Component Specifications

Low-Frequency Transducers (Bass Driver)

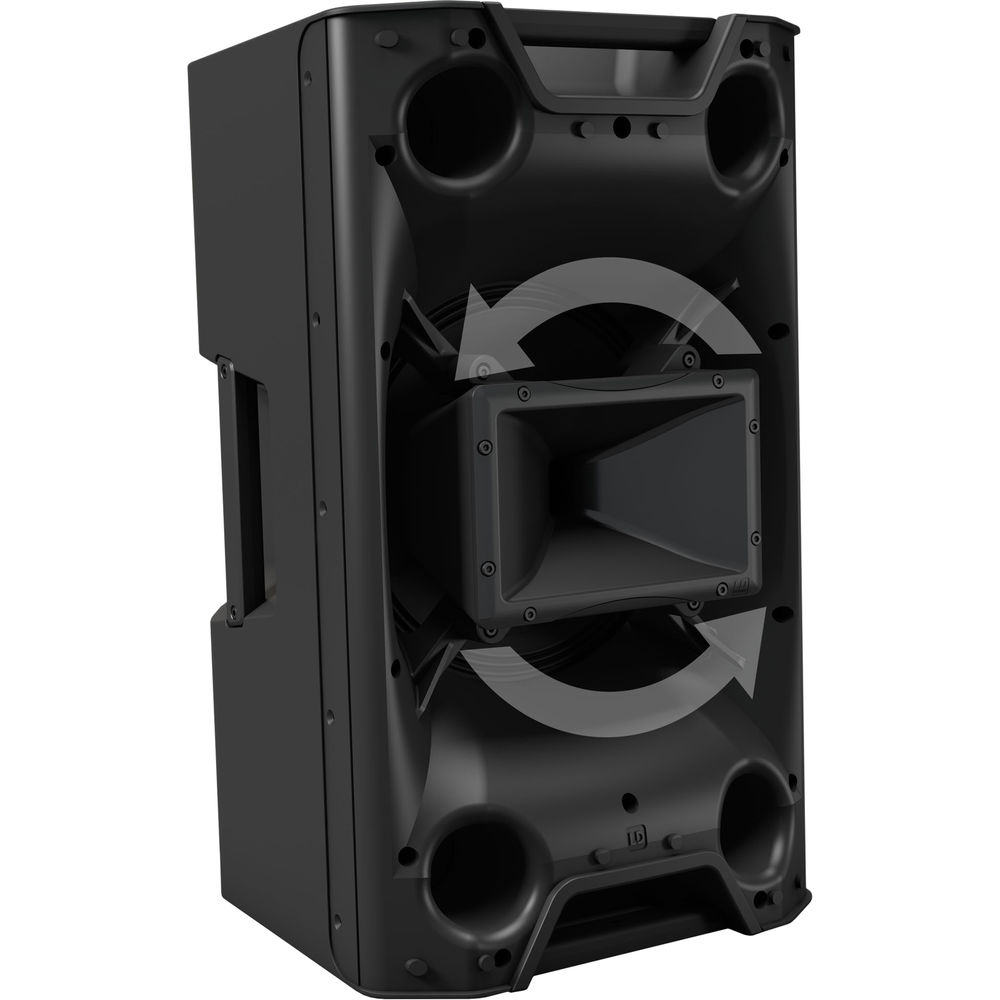

1x 304.80 mm (12.00") Custom Woofer with Ferrite Magnet (Coaxial Configuration)

High-Frequency Transducers (Tweeter)

1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 35.56 mm (1.40") Voice Coil & Ferrite Magnet

Connectivity, Processing & Control Specifications

Integrated Mixer & DSP Processing

Integrated Multi-Channel Mixer; DSP Audio Processing (3-Band EQ: High/Mid/Low, Delay Line Alignment, System Presets)

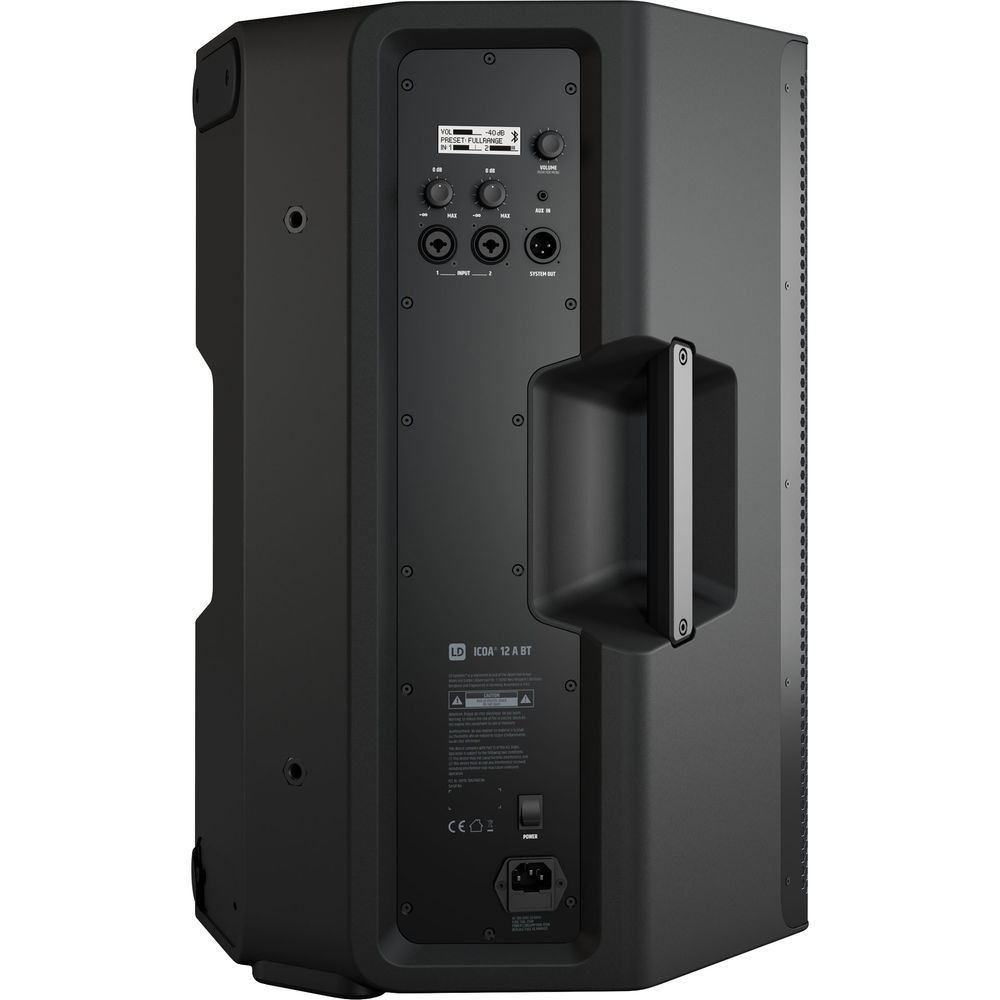

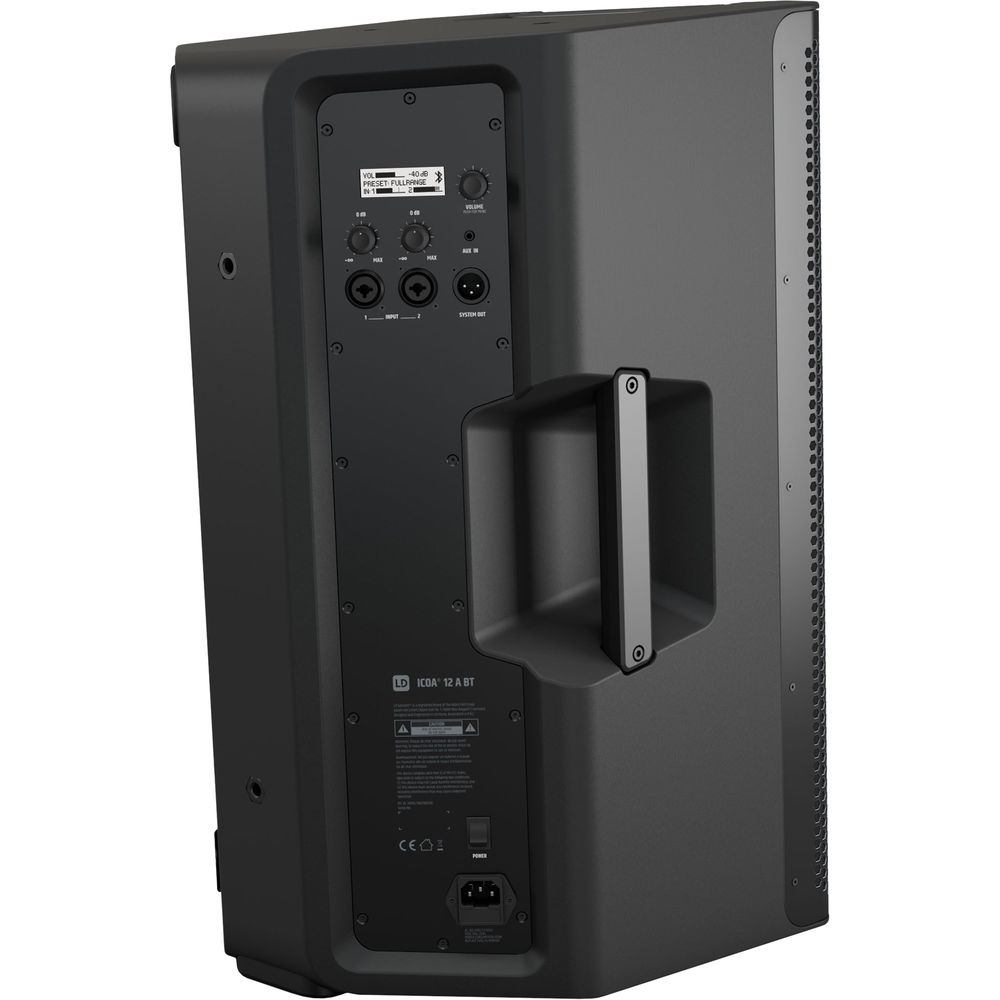

Audio Line Inputs & Outputs

Inputs: 2x XLR / 1/4" TRS Combo Mic/Line Inputs, 1x 3.5 mm (1/8") TRS Female Auxiliary Line Input;
Output: 1x Balanced XLR 3-Pin Female Line Output

Power & Electrical Specifications

Power Supply Unit Type

Switched-Mode Power Supply (SMPS)

Operating AC Mains Voltage

100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V Externally Replaceable Mains Fuse)

Rated Power Consumption

150 W

Mains Connector

IEC C14 Male Inlet Plug Terminal

Environmental Operating Limits

Operating Temperature Range

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity Limits

Up to 80% Relative Humidity (Non-Condensing)

Dimensions & Weight Specifications

Product Dimensions (W×H×D)

375 mm x 635 mm x 396 mm (14.76" x 25.00" x 15.59")

Product Net Weight

19.95 kg (43.98 lbs)
