ICOA 12A

Name: ICOA 12A
Brand: LD SYSTEMS
SKU: LD SYSTEMS-ICOA 12A-CHN-8302
Price: 29995.00 PHP
Availability: InStock

Special Order

1 3

Key Features

A genuine all-rounder for full-range, satellite and monitor applications
126 dB max. SPL and 1200 W peak power

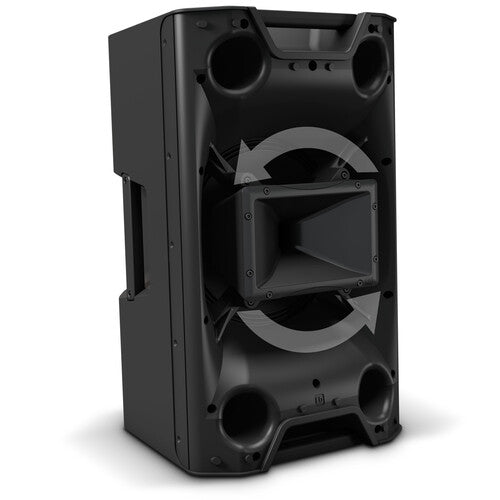

Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points

ICOA 12A

LD SYSTEMS

₱29,995.00 VAT INC.

₱29,995.00

Special Order

SOLD BY: PIECE/S

Product Code: SKU:LD SYSTEMS-ICOA 12A-CHN-8302

Key Features

A genuine all-rounder for full-range, satellite and monitor applications
126 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

Add to Quotation

View full details

LD SYSTEMS ICOA 12A

Key Specifications
Product / Accessory Type	Active 2-Way Coaxial Loudspeaker / Stage Monitor
Enclosure Material & Construction	15 mm Polypropylene Cabinet (Bass-Reflex Design with Aluminum Front Grille)
Floor Monitor Angle	55° Stage Monitor Angle
Mounting & Suspension Hardware	36 mm Dual-Tilt Pole Socket (0° / 5° Flange), 6x M10 Suspension Flying Points
Transport Handles	4x Integrated Carrying Handles
Product Color & Finish	Black Finish
Acoustic & Electrical Performance Specifications
Amplifier Output Power	1,200 W Peak Output / 300 W Continuous RMS
Amplifier Topology Class	Class-D Topology
Maximum Sound Pressure Level (SPL)	126 dB Peak SPL
Frequency Response	50 Hz to 20,000 Hz
Nominal Coverage Dispersion (H×V)	90° Horizontal x 50° Vertical
Crossover Frequency	2,000 Hz (2.00 kHz)
Amplifier Protection Systems	Overheating Protection, Overvoltage Protection, Multiband Limiter, Overload Protection
Speaker Component Specifications
Low-Frequency Transducers (Bass Driver)	1x 304.80 mm (12.00") Custom Woofer with Ferrite Magnet (Coaxial Configuration)
High-Frequency Transducers (Tweeter)	1x 25.40 mm (1.00") Custom Compression Driver / Tweeter with 35.56 mm (1.40") Voice Coil & Ferrite Magnet
Connectivity, Processing & Control Specifications
Integrated Mixer & DSP Processing	Integrated Multi-Channel Mixer; DSP Audio Processing (3-Band EQ: High/Mid/Low, Delay Line Alignment, System Presets)
Audio Line Inputs & Outputs	Inputs: 2x XLR / 1/4" TRS Combo Mic/Line Inputs, 1x 3.5 mm (1/8") TRS Female Auxiliary Line Input; Output: 1x Balanced XLR 3-Pin Female Line Output
Power & Electrical Specifications
Power Supply Unit Type	Switched-Mode Power Supply (SMPS)
Operating AC Mains Voltage	100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V Externally Replaceable Mains Fuse)
Rated Power Consumption	150 W
Mains Connector	IEC C14 Male Inlet Plug Terminal
Environmental Operating Limits
Operating Temperature Range	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Limits	Up to 80% Relative Humidity (Non-Condensing)
Dimensions & Weight Specifications
Product Dimensions (W×H×D)	375 mm x 635 mm x 396 mm (14.76" x 25.00" x 15.59")
Product Net Weight	19.95 kg (43.98 lbs)
