Key Specifications

Product / Accessory Type

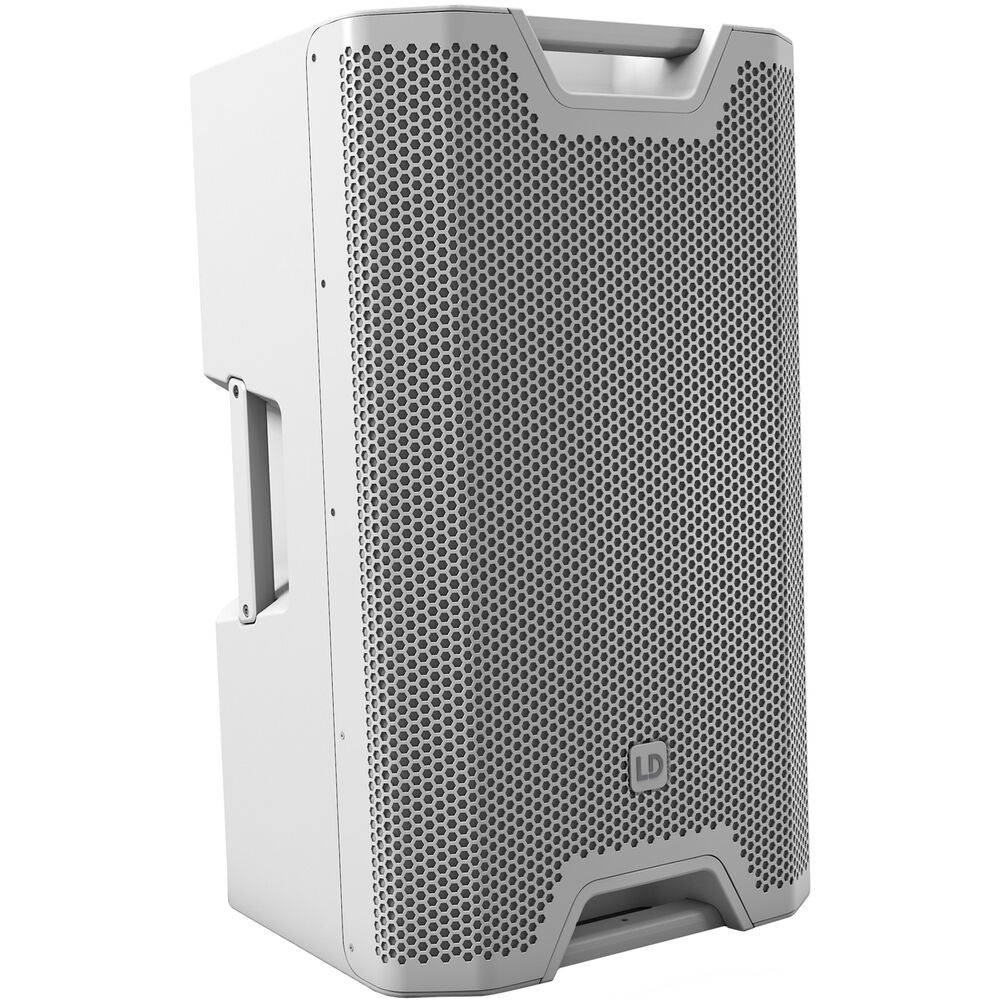

Active 2-Way Full-Range Loudspeaker

Enclosure Material & Construction

Polypropylene Cabinet (Bass-Reflex Design)

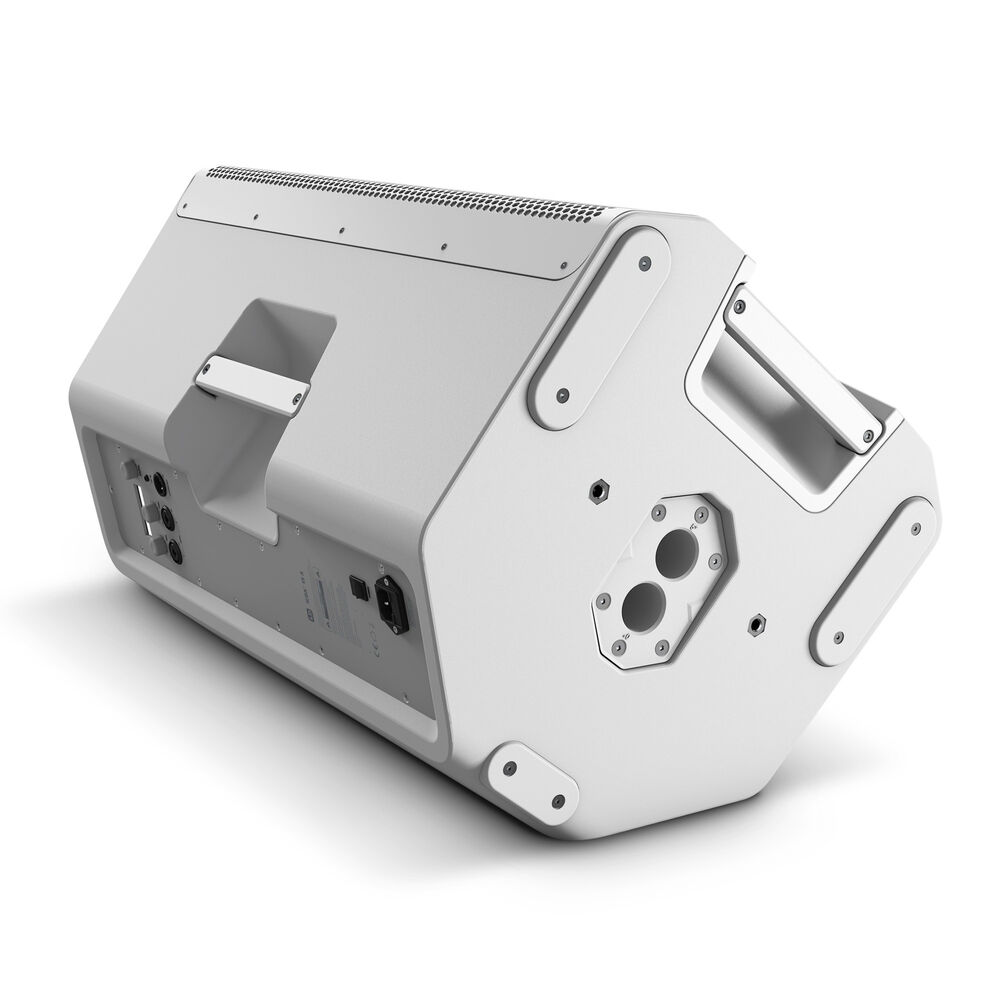

Mounting & Suspension Hardware

2x 36.00 mm (1.42") Dual-Angle Bottom Pole Sockets, 6x M10 Suspension Fly Points

Transport Handles

4x Integrated Carrying Handles

Product Color & Finish

White Finish

Environmental Resistance

None

Acoustic & Electrical Performance Specifications

Amplifier Output Power

300 W RMS / 600 W Program / 1,200 W Peak

Amplifier Topology Class

Class-D Topology

Maximum Sound Pressure Level (SPL)

128 dB Maximum SPL

Frequency Response / Range

48 Hz to 20,000 Hz

Nominal Coverage Dispersion (H×V)

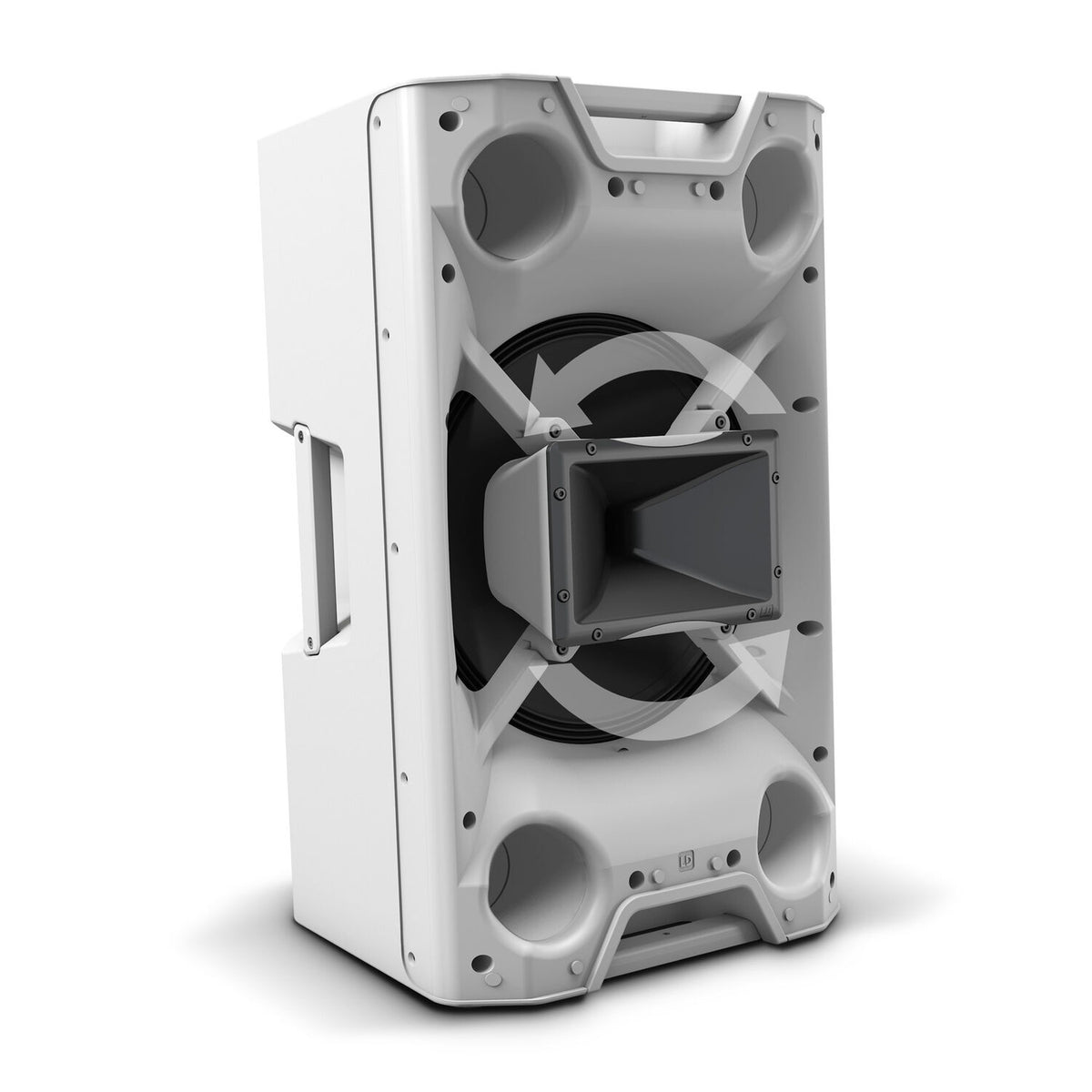

90° Horizontal x 50° Vertical (Rotatable Horn)

Crossover Frequency

2,000 Hz (2.00 kHz)

Amplifier Protection Systems

DC Fault, Output Limiter, Short Circuit Protection, Thermal Protection

Speaker Component Specifications

Low-Frequency Transducers (LF)

1x 381.00 mm (15.00") Woofer with Ferrite Magnet

High-Frequency Transducers (HF)

1x 25.40 mm (1.00") Exit Compression Driver / Tweeter with 35.56 mm (1.40") Voice Coil & Ferrite Magnet

Connectivity, Processing & Control Specifications

Digital Signal Processing (DSP)

24-Bit DSP Engine with Integrated Venue Presets, 3-Band Equalizer & Dynamic Multiband Limiter

Alignment Delay Control

Up to 29 ms (9.80 m / 32.15 ft Alignment Distance)

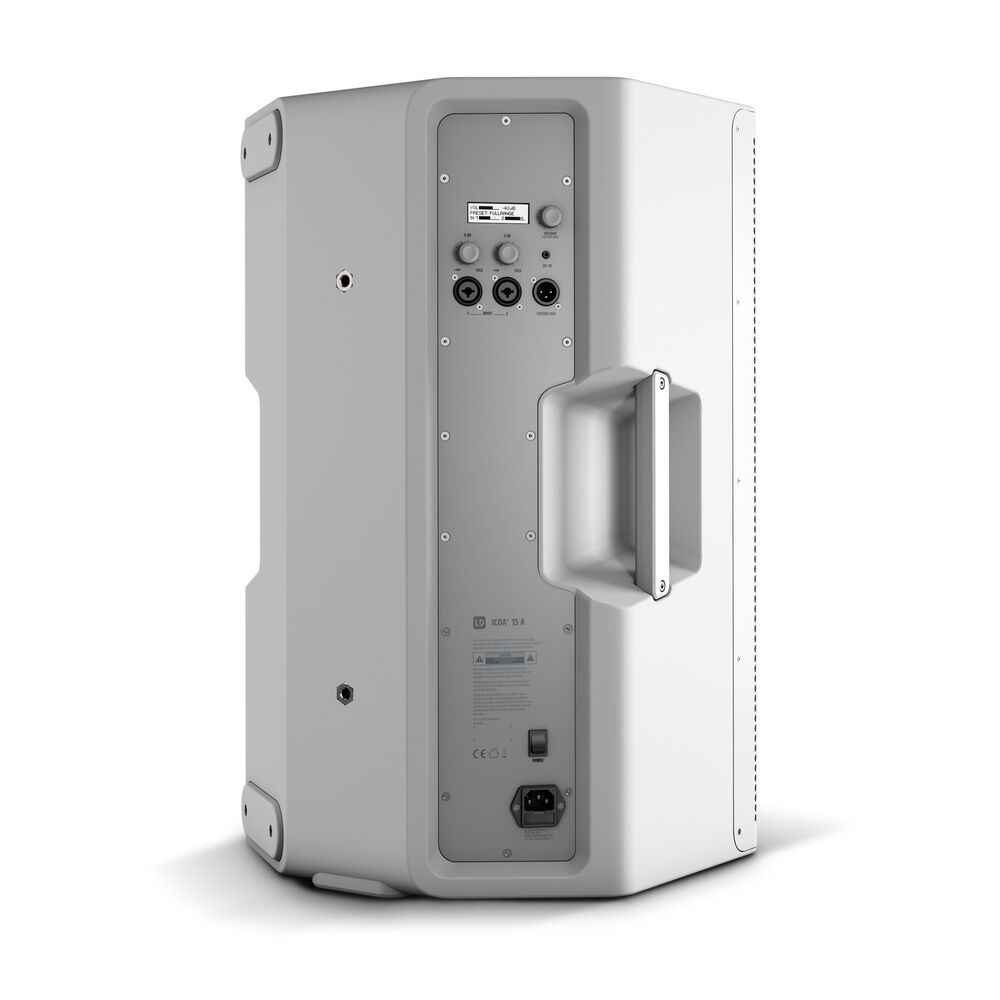

Audio Line Inputs & Outputs

Inputs: 2x XLR / 1/4" TRS Combo Mic/Line Inputs, 1x 3.5 mm (1/8") TRS Auxiliary Line Input;
Output: 1x Balanced XLR 3-Pin Line Output

Power & Electrical Specifications

AC Mains Input Voltage

100 to 240 VAC, 50 / 60 Hz (T 4 A L 250 V Fuse)

Power Consumption

150 W Rated Power Consumption

Mains Connector

1x Standard IEC Mains Input Terminal

Dimensions & Weight Specifications

Product Dimensions (H×W×D)

695.00 mm x 416.00 mm x 415.00 mm (27.40" x 16.40" x 16.30")

Product Net Weight

24.31 kg (53.60 lbs)
