Key Specifications

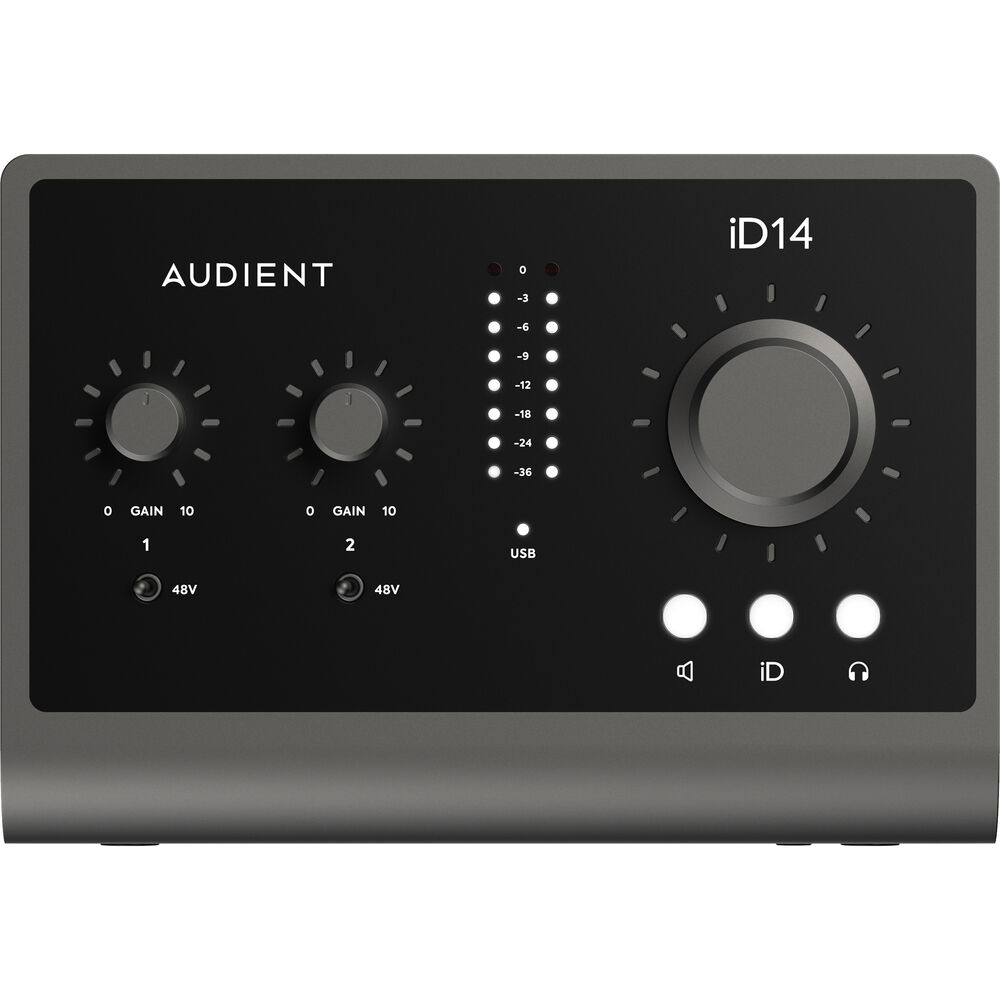

Display

2× Multi-Segment LED Meter

Channels of I/O

Analog: 2 Inputs / 6 Outputs at 96 kHz
Digital: 8 Inputs / 0 Outputs at 48 kHz

Built-In DSP

No

Maximum Sampling Rate

96 kHz / 24-Bit

Number of Microphone Inputs

2

Built-In Microphone

No

Input Level Adjustment

2× Knob

Signal Processing

Pad

No

Gain/Trim Range

Mic/Hi-Z Inputs: 58 dB
Hi-Z Inputs: 40 dB

High-Pass Filter

No

Solo/Mute

No

Connectivity

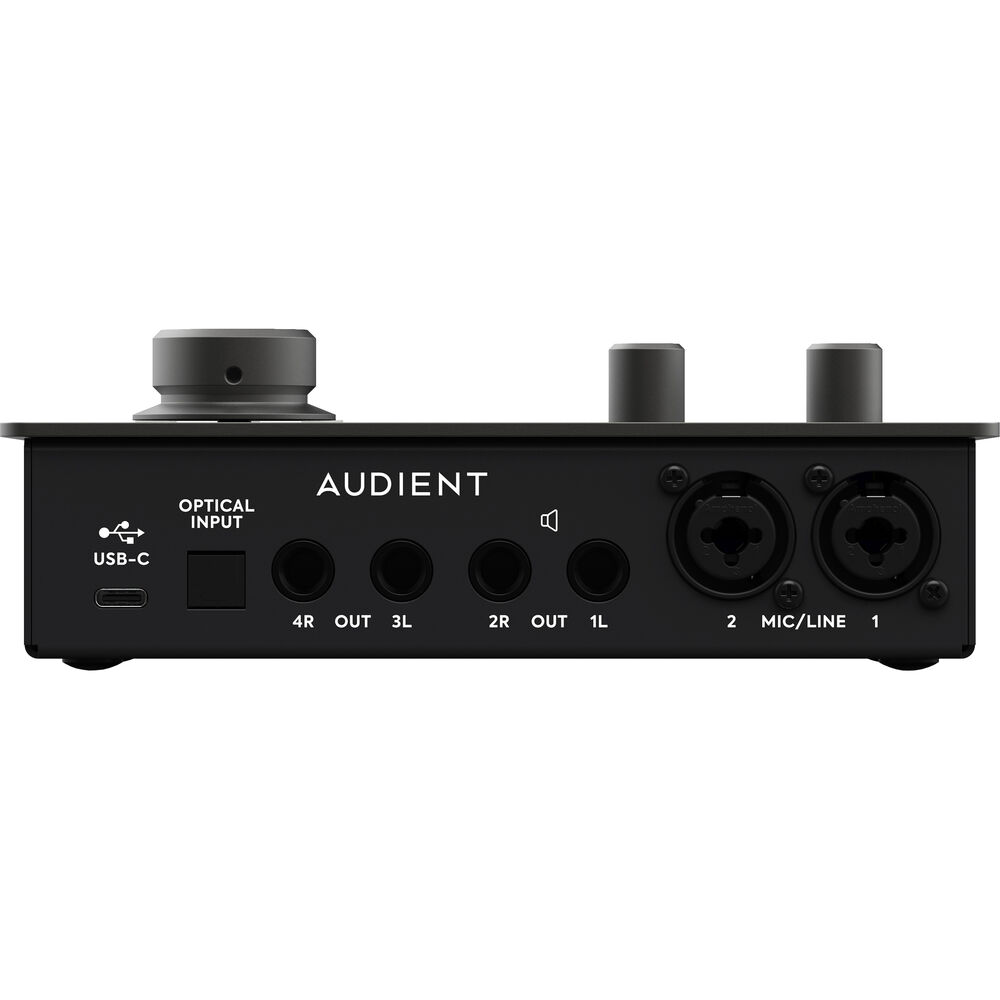

Analog Audio I/O

2× Combo XLR-1/4" TRS Balanced Mic/Line Inputs

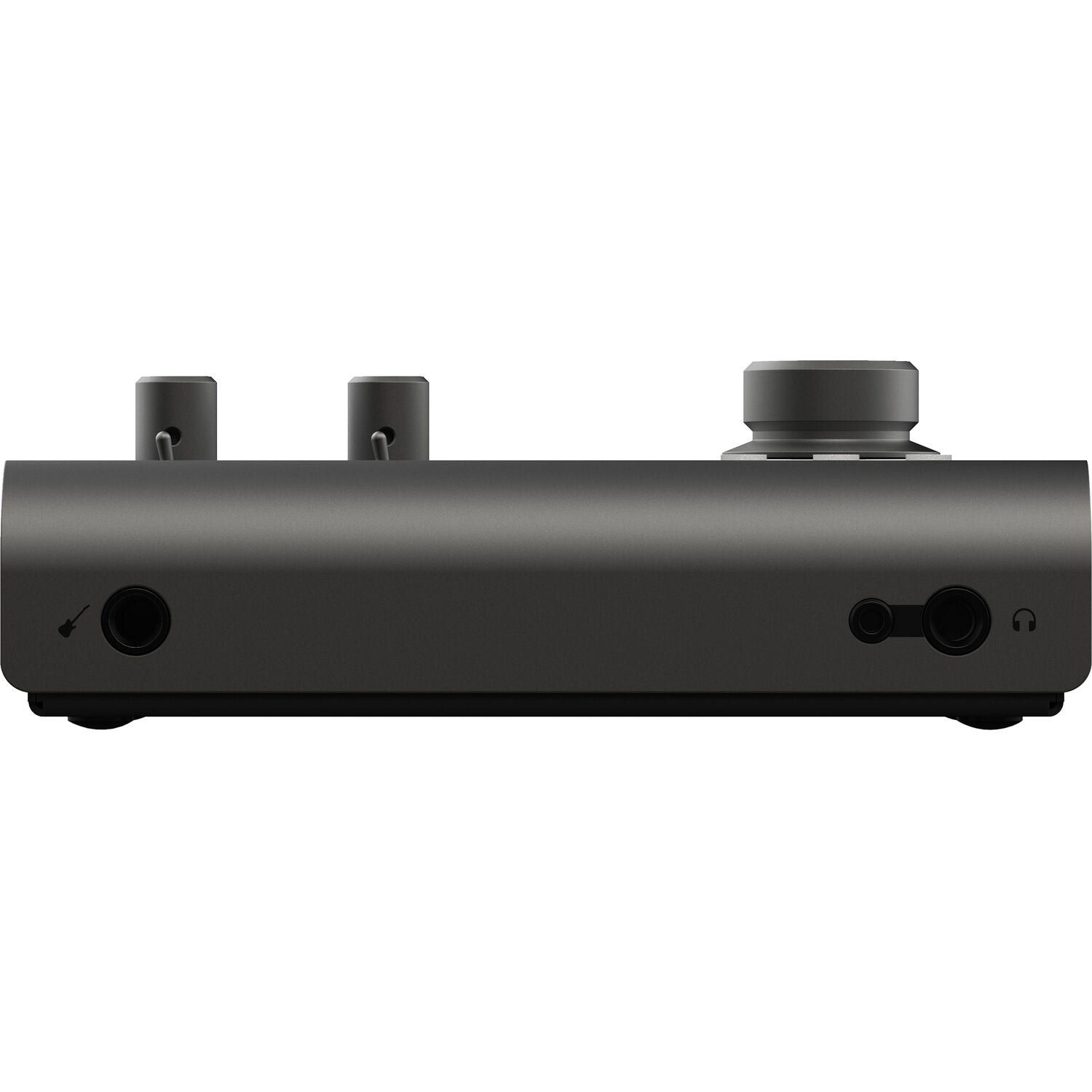

1× 1/4" TRS Unbalanced Hi-Z Input (Front Panel)
4× 1/4" TRS Balanced Line/Monitor Outputs
1× 1/4" TRS Unbalanced Headphone Output (Front Panel)
1× 1/8" / 3.5 mm TRS Unbalanced Headphone Output (Front Panel)

Phantom Power

48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)

Digital Audio I/O

1× TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support)

Host Connection / USB

1× USB-C

Host Connection Protocol

USB 3.0 / 3.1 / 3.2 Gen 1

USB (Non-Host)

No

Sync I/O

No

Network I/O

No

MIDI I/O

No

Expansion Slots

No

Wireless

No

Performance

Frequency Response

A/D Converters: 10 Hz to 40 kHz ±0.5 dB
D/A Converters: 10 Hz to 40 kHz ±0.1 dB
Mic, Line Inputs: 10 Hz to 40 kHz ±0.5 dB (Min Gain), 20 Hz to 22 kHz ±1 dB (Max Gain)
Hi-Z Inputs: 10 Hz to 20 kHz ±0.5 dB
Headphone Outputs: 10 Hz to 40 kHz ±0.25 dB

Maximum Input Level

Mic Inputs: +12 dBu
Line Inputs: +21 dBu
Hi-Z Inputs: +10 dBu

Maximum Output Level

Headphone Outputs: +5.46 Vrms (600-Ohm Load)

Headphone Output Power

223 mW into 30 Ohms (Max)
280 mW into 62 Ohms (Max)
100 mW into 600 Ohms (Max)

Impedance

Mic Inputs: 2.8 Kilohms (Balanced)
Line Inputs: > 8 Kilohms (Balanced)

Dynamic Range

Headphone Outputs: 125.5 dB (A-Weighted)
A/D Converters: 120 dB (A-Weighted)
D/A Converters: 125.5 dB (A-Weighted)

Signal-to-Noise Ratio (SNR)

Mic/Line Inputs: 101 dBu (A-Weighted)
Hi-Z Inputs: 100 dBu (A-Weighted)

THD+N

Mic/Line Inputs: 0.0017% (at 0 dBu)
Hi-Z Inputs: 0.1% (at 0 dBu)
A/D Converters: <0.001% (at -1 dBFS)
D/A Converters: <0.0006% (at -1 dBFS)
Headphone Outputs: <0.0009% (at -1 dBFS)

Equivalent Input Noise (EIN)

Mic/Line Inputs: -129 dBu A-Weighted

Digital Audio

Sample Rates

44.1 to 96 kHz

Sample Rate Conversion

No

Bit Depths

24-Bit

Latency

0.65 ms at 44.1 kHz (Dependent on Buffer Size, Input to Output)
0.31 ms at 96 kHz (Dependent on Buffer Size, Input to Output)

Sync Sources

ADAT, Internal, S/PDIF

Audio Storage & Playback

Media/Memory Card Slot

No

Compatibility

OS Compatibility

macOS 10.11 or Later
Windows 7 or Later

Processor Requirement

Mac: Intel, Apple M1
PC: 1.6 GHz Intel Core 2

RAM Requirements

1 GB

Mobile Device Compatibility

No

Required Hardware

Available USB-C Port
USB Cable (Included)

Power

Power Requirements

USB Bus Power

Physical

Dimensions

6.8 × 4.7 × 2.4" / 17.3 × 12 × 6.2 cm (Including Controls and Protrusions)

Packaging Information

Package Weight

2.33 lb

Box Dimensions (L × W × H)

9 × 6 × 3.6"
