Key Specifications

Display

1× LED
1× Color Multi-Segment LED Meter

Channels of I/O

10 Inputs / 14 Outputs

Built-In DSP

Yes

Maximum Sampling Rate

96 kHz / 32-Bit

Number of Microphone Inputs

2

Built-In Microphone

No

Input Level Adjustment

2× Knob

Signal Processing

Pad

Mic/Line: -10 dB (Switchable per Channel)

Gain/Trim Range

0 to +58 dB

High-Pass Filter

100 Hz

Solo/Mute

Mute per Master

Connectivity

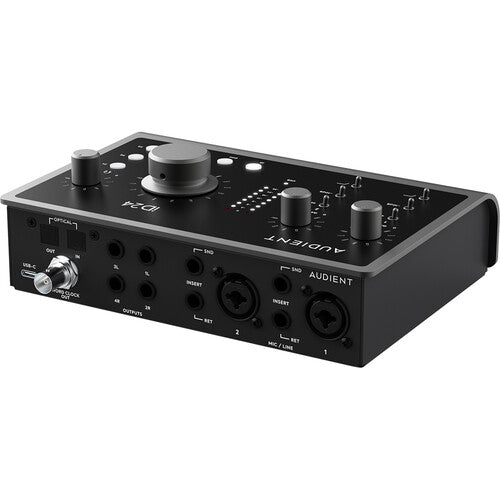

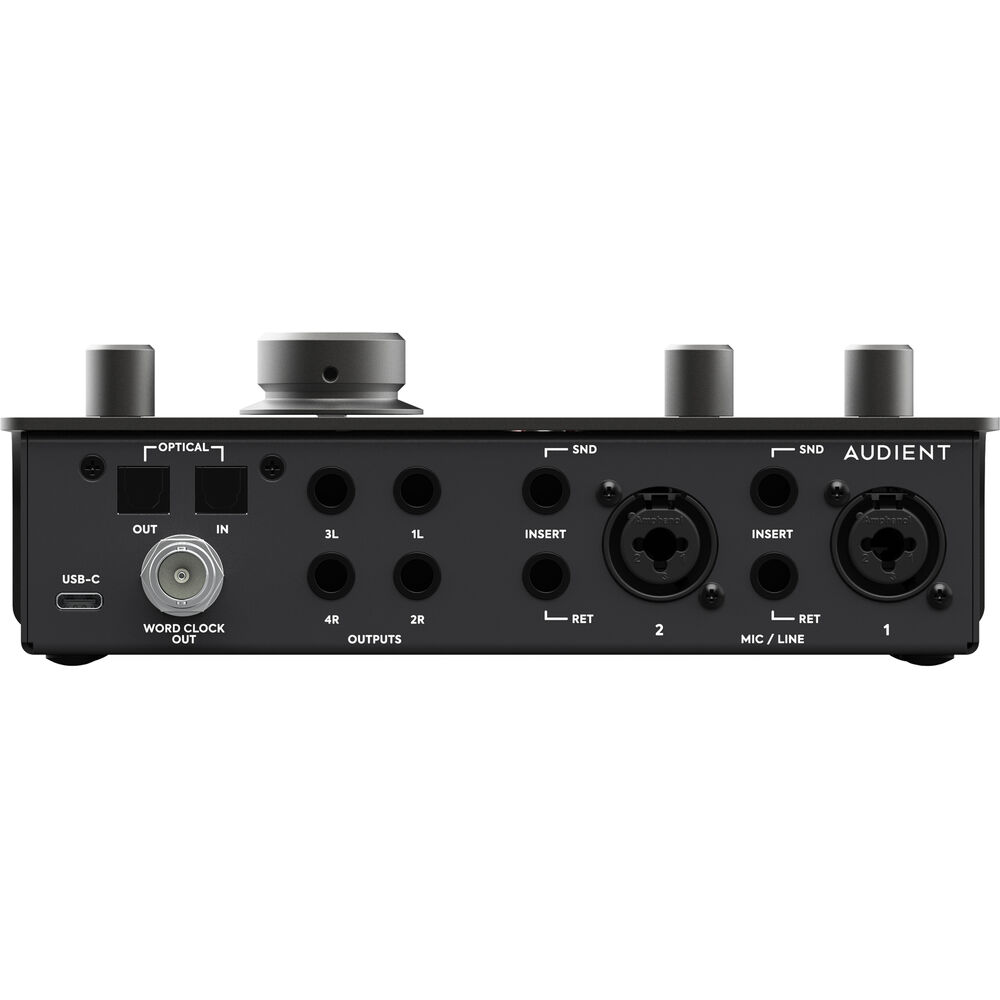

Analog Audio I/O

2× Combo XLR-1/4" TRS Mic/Line Inputs

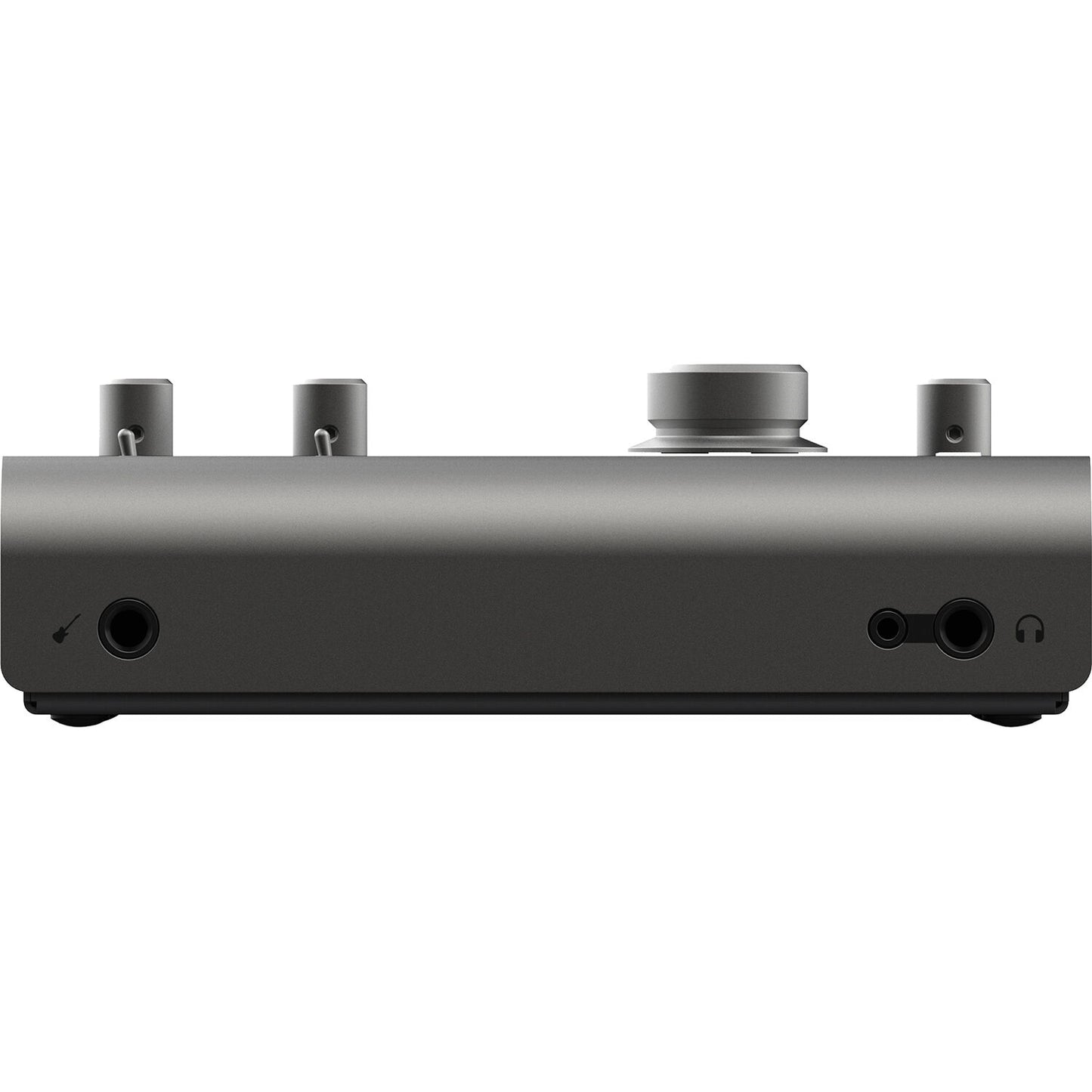

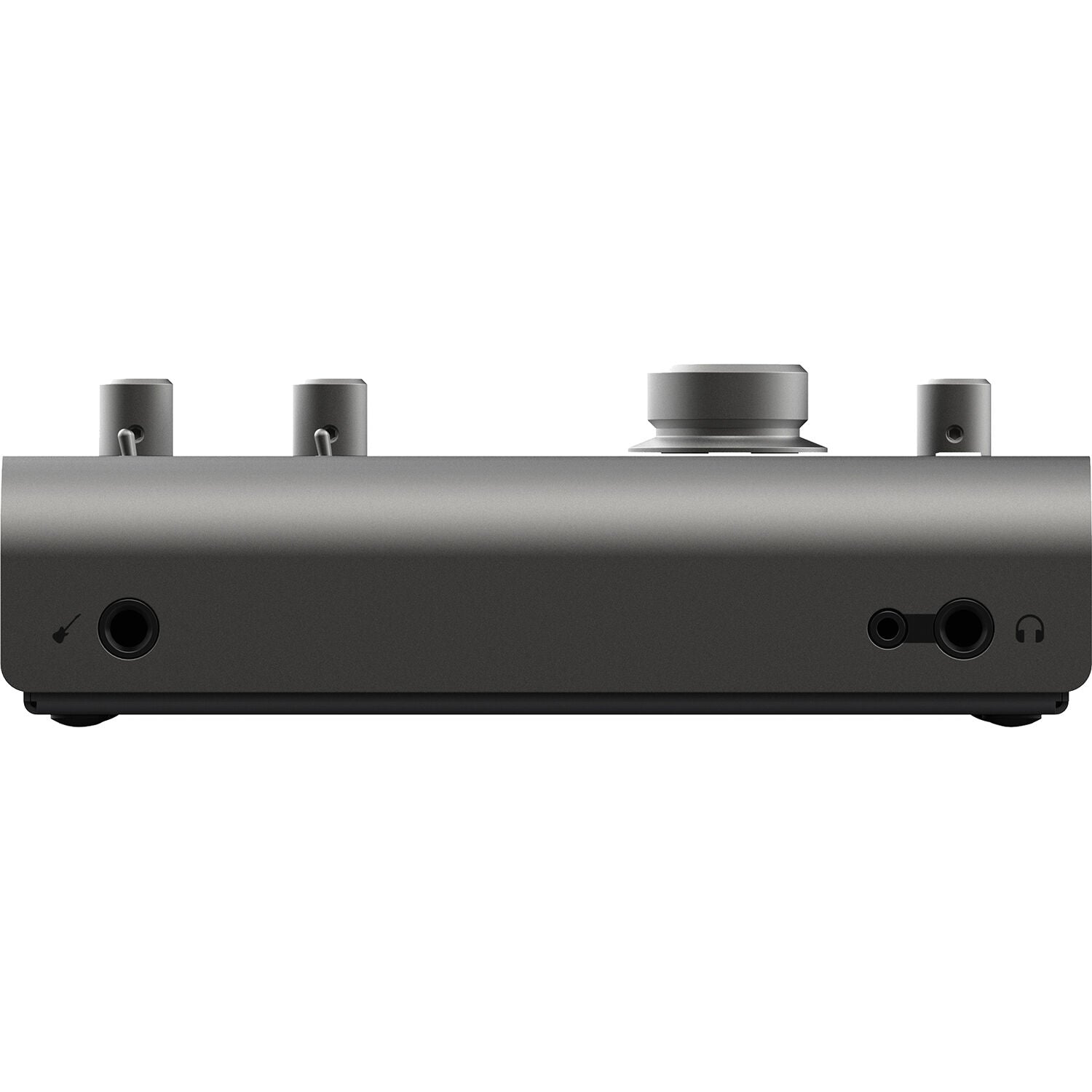

1× 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1× 1/4" TRS Headphone Output (Front Panel)
4× 1/4" TRS Balanced Monitor Outputs
1× 1/8" / 3.5 mm TRS Headphone Output (Front Panel)
2× 1/4" TRS Balanced Insert Sends
2× 1/4" TRS Balanced Insert Returns

Phantom Power

48 V ± 4 V, Selectable On/Off (Selectable on Individual Inputs)

Digital Audio I/O

1× TOSLINK Optical ADAT / S/PDIF Input
1× TOSLINK Optical ADAT / S/PDIF Output

Host Connection / USB

1× USB-C

Host Connection Protocol

USB 2.0, USB 3.0 / 3.1 / 3.2 Gen 1

USB (Non-Host)

No

Sync I/O

1× BNC Word Clock Output

Network I/O

No

MIDI I/O

No

Expansion Slots

No

Wireless

No

Performance

Frequency Response

10 Hz to 40 kHz

Maximum Input Level

A/D Converters: +12.5 dBu for 0 dBFS
Line: +12 dBu

Maximum Output Level

D/A Converters: +12 dBu at 0 dBFS

Headphone Output Power

1/4": 232 mW into 50 Ohms (Max)

Impedance

Mic: > 2.8 Kilohms
Line: > 8 Kilohms
Hi-Z: > 500 Kilohms

Dynamic Range

Headphone: 124 dBA
A/D Converters: 122 dBA
D/A Converters: 126.5 dBA

Signal-to-Noise Ratio (SNR)

Mic: 97.5 dB (Unweighted), 100 dBA

THD+N

Mic: -96 dB / 0.0015%
Line: -97 dB / 0.0013%
A/D Converters: -108 dB / 0.0004%
D/A Converters: -110 dB / 0.0003%

Equivalent Input Noise (EIN)

129 dB A-Weighted

Digital Audio

Sample Rates

Up to 96 kHz

Sample Rate Conversion

No

Bit Depths

32-Bit

Latency

0.344 ms at 44.1 kHz
0.312 ms at 48 kHz
0.188 ms at 88.2 kHz
0.177 ms at 96 kHz

Sync Sources

Word Clock

Clocking

Internal

Audio Storage & Playback

Media/Memory Card Slot

No

Compatibility

OS Compatibility

Windows / macOS

Mobile Device Compatibility

No

Required Hardware

USB-C Port

Power

Power Requirements

USB Bus Power

Physical

Dimensions

7.8 × 5.3 × 2.6" / 198 × 134 × 66 mm

Packaging Information

Package Weight

3.18 lb

Box Dimensions (L × W × H)

9.5 × 7.6 × 3.9"
