Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

350 W

System Programme Power

700 W

System Peak Power

1400 W

Max SPL @ 1m

130 dB

Freq Range (-10 dB)

45 Hz - 20 KHz

Freq Response (+/-3 dB)

50 Hz - 18 KHz

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

15"

LF Voice Coil Size

2.5"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

350 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

No

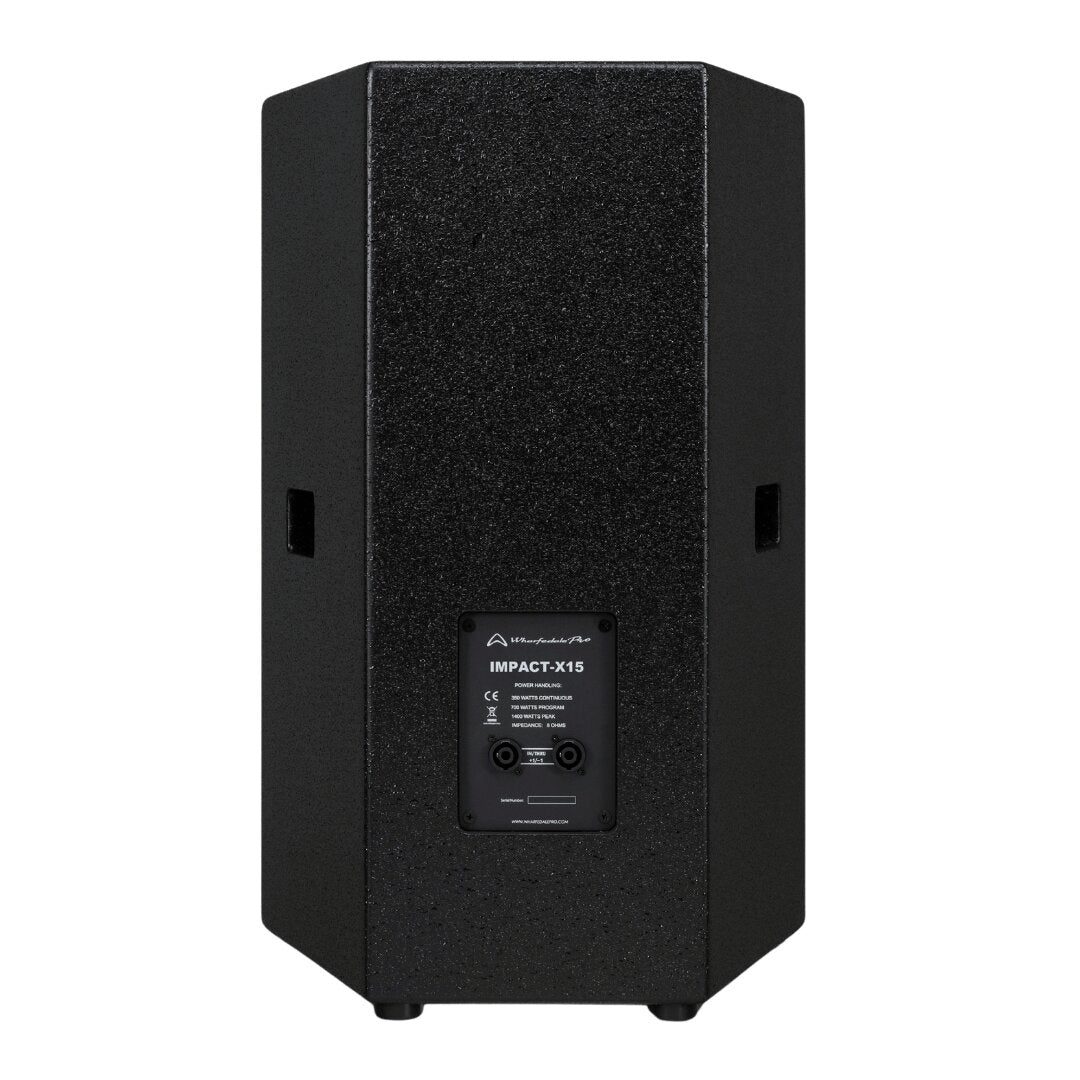

Input Connector

2 × 4 Pole Speaker Connector + 1/4" Jack Combo

Waveguide Type

Elliptical

Enclosure Material

MDF

Grille Material and Finish

Steel Black

Finish

Black Tough-Tone

Handles

2

Deployment

Ground, Pole

Pole Mount

Dual Angle (0° / 10°) 35 mm

Brackets Included

No

Rigging

No

Sensitivity 2.83v / 1m

98 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.2 KHz

Recommended HPF = BW 18 dB/OCT.

45 Hz

Transformer (T)

No

Unpacked - Height (mm)

680

Unpacked - Width Front (mm)

444.5

Unpacked - Width Rear (mm)

250

Unpacked - Depth (mm)

429

Packed - Height (mm)

750

Packed - Width Front (mm)

520

Packed - Width Rear (mm)

290

Packed - Depth (mm)

485

Weight - Nett (kg)

22.8

Weight - Gross (kg)

25.8
