Key Specifications

Display System

1-Chip 0.47" DMD DLP

Resolution

Native: 1920 x 1080

Maximum Brightness

4000 Lumens (ANSI)

Throw Ratio

1.47 to 1.62:1 (100" Screen Size @ 11' / 3.4 m)

Projection Size

30 to 300" / 0.8 to 7.6 m

HDR Support

No

Audio/Video I/O

3.5 mm / HDMI / S-Video / VGA

Light Source

Lamp (1 x UHP)

Image Display

Display System

1-Chip 0.47" DMD DLP

Resolution

Native: 1920 x 1080

Maximum Brightness

4000 Lumens (ANSI)

Uniformity

80%

Offset

116%

Aspect Ratio

Native: 16:9

3D Support

Yes: Frame Sequential, Frame Packing, Side by Side, Top Bottom, DLP Link 3D Glasses Supported

Scan

Horizontal: 15 to 97.55 kHz
Vertical: 54 to 85 Hz

Lens

Includes Lens

Yes

Focus

Manual

Aperture

f/2.1

Focal Length

21.85 to 24.01 mm

Lens Shift

No

Throw Distance

Standard Throw: 3.3 to 32.2' / 1 to 9.8 m

Throw Ratio

1.47 to 1.62:1 (100" Screen Size @ 11' / 3.4 m)

Projection Size

30 to 300" / 0.8 to 7.6 m

Features

Keystone Correction

Auto/Manual: Vertical ±40°

HDR Support

No

Zoom

Yes: 2x Digital / 1.1x Optical

Multi-Input Support (PIP/PBP)

No

Ceiling Mountable

Yes

Front/Rear Projection

Front and Rear

Built-In Speakers

Yes: 1x 10 W

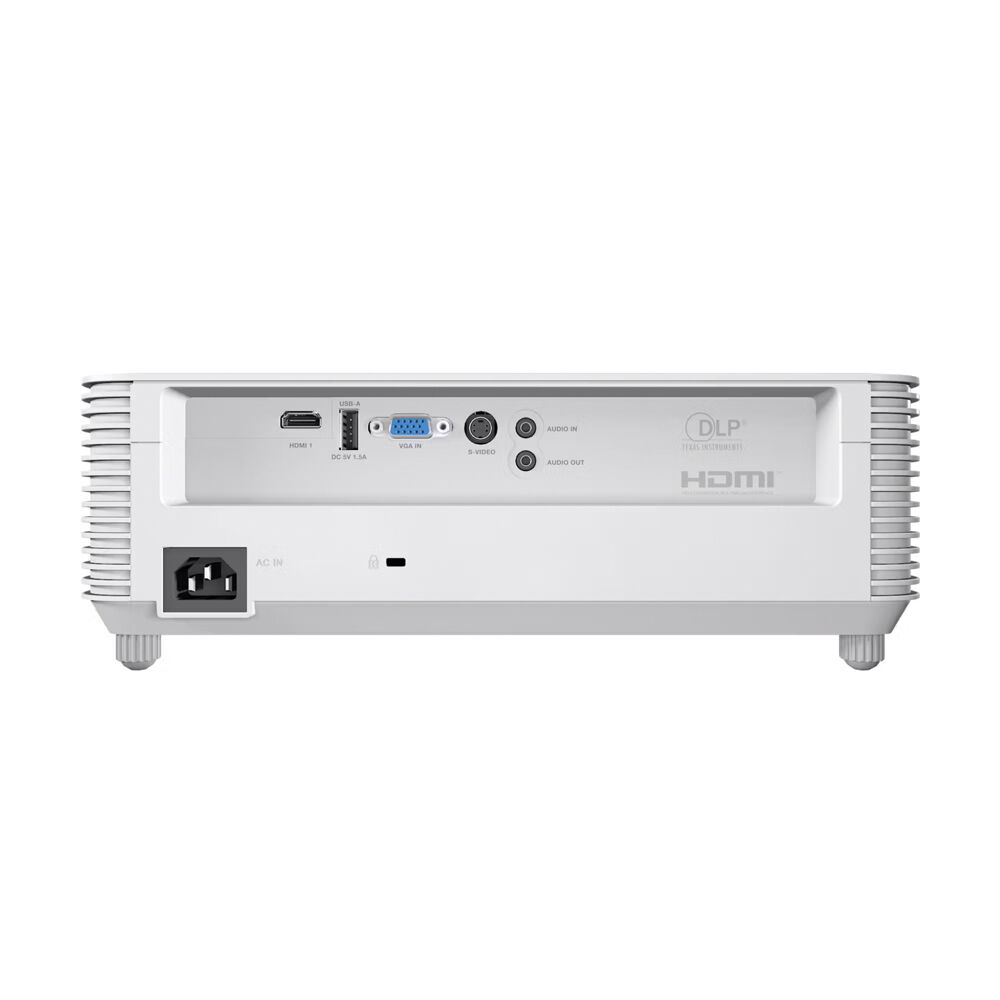

Input/Output Connectors

Audio/Video I/O

2x HDMI 1.4 Audio/Video Input
1x VGA Video Input
1x 4-Pin DIN (S-Video) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x VGA Video Output
1x 1/8" / 3.5 mm Mini Audio Output

Other I/O

1x USB-A (Service)
1x DE-9/DB-9 (RS-232) Input

HDCP Support

Yes

Media/Memory Card Slot

No

Hardware

Mobile App Compatible

No

Wireless

Wi-Fi (via Optional Adapter)

General

Light Source

Lamp (1 x UHP)

Expected Lamp Life

Low Brightness: 15,000 Hours

Fan Noise

Low Brightness: 27 dB

Security

Cable Lock Slot
Keypad Lock

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

Full Brightness: 267 W
Low Brightness: 210 W
Standby Mode (Lamp Off): < 0.5 W

Certifications

BIS, CB, CCC, CE, EAC, FCC, NOM, PSB, RoHS EU/China, UKCA, WEEE, cTUVus

Operating Conditions

41 to 104°F / 5 to 40°C at 10 to 85% Humidity

Dimensions (W x H x D)

12.3 x 3.8 x 9.3" / 313.0 x 96.4 x 236.0 mm

Weight

6.4 lb / 2.9 kg
