Key Specifications

Projection Technology

Texas Instruments DLP®

Panel Size

0.65" DMD

Native Resolution

WXGA

Pixels

1280 x 800

Aspect Ratio

16:10

Contrast Ratio

30000:1

Brightness

4300 Lumens

Light Source

UHP Lamp

Light Source Life

Up to 15,000 Hours

Maximum Supported Resolution

1920 x 1200

Horizontal Sync Range

15 ~ 97.55 kHz

Vertical Sync Range

54 ~ 85 Hz

Uniformity

80%

Lens

Lens

1:1 Fixed

Lens Zoom Adjustment

-

Optional Lenses

-

Image Offset

112.4%

Focal Length

7.15 mm

F-Stop

f/2.8

Vertical Lens Shift

-

Horizontal Lens Shift

-

Keystone Adjustment

Manual

Vertical Keystone Correction

±20°

Horizontal Keystone Correction

-

Projection Factor

0.521

Projection Distance

0.4 ~ 3.4 m / 1.31 ~ 11.15 ft

Optical Zoom

1:1 Fixed

Digital Zoom

0.8x ~ 2.0x

Focus Adjustment

Manual

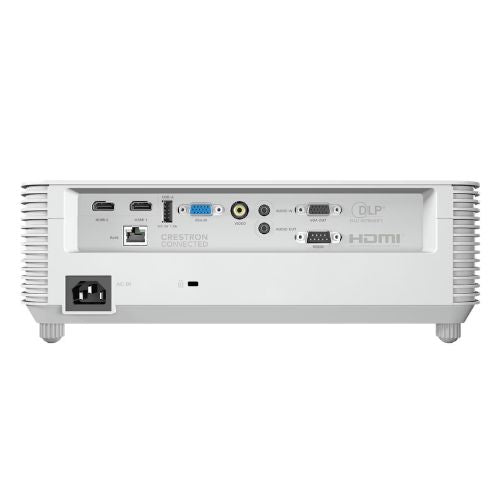

Inputs / Outputs

Inputs

Mini D-sub 15-pin (VGA)
Composite Video
2x HDMI™ 1.4
3.5 mm Stereo Mini Jack
USB-A for Service

Outputs

3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
Mini D-sub 15-pin (VGA)

Networking & Control

RJ45, RS232

Embedded System

-

3D Support

Full 3D All Major Formats

Power

Power Supply

100 ~ 240 V AC; 50 ~ 60 Hz

Power Consumption (Max)

267 W

Power Consumption (Min)

210 W

Network Standby Power

<2.0 W

Standby Power

<0.5 W

Physical Specifications

Product Dimensions (L × W × H)

313 x 236 x 96.4 mm / 12.4 x 9.3 x 3.8"

Product Weight

2.9 kg / 6.4 lb

Packaged Dimensions (L × W × H)

395 x 337 x 166 mm / 15.6 x 13.3 x 6.5"

Packaged Weight

4.1 kg / 9.0 lb

Fan Noise

27 dB

Audio

1 x 10 W Speaker

Environmental

Operating Temperature

5 ~ 40°C / 41 ~ 104°F

Operating Humidity

10 ~ 85%

Max Operating Altitude

3048 m / 10,000 ft

Storage Temperature

-10 ~ 60°C / 14 ~ 140°F

Storage Humidity

10 ~ 85%

Security

Security Features

Kensington Security Slot™, PIN Code Lock & Timer

Compliance

Safety & Regulatory

CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS

Environmental Compliance

WEEE, EU RoHS, China RoHS, CEL, CECP

Accessories

Remote Control

HW-NAVIGATOR-5

Replacement Lamp

-

Replaces EOL Product

IN136ST
