Key Specifications

Display System

1-Chip 0.47" DMD DLP

Resolution

On-Screen (Pixel-Shift): 3840 x 2160

Maximum Brightness

4000 Lumens (ISO)

Throw Ratio

1.21 to 1.59:1 (100" Screen Size @ 11.5' / 3.5 m)

Projection Size

30 to 300" / 0.8 to 7.6 m

HDR Support

Yes: HDR10 / Hybrid Log Gamma

Audio/Video I/O

3.5 mm / HDMI / Optical / VGA

Light Source

Lamp (1 x UHP)

Image Display

Display System

1-Chip 0.47" DMD DLP

Resolution

On-Screen (Pixel-Shift): 3840 x 2160

Maximum Brightness

4000 Lumens (ISO)

Uniformity

80%

Offset

115%

Aspect Ratio

Native: 16:9

3D Support

Yes: DLP Link 3D Glasses Supported

Scan

Horizontal: 15 to 100 kHz
Vertical: 24 to 240 Hz

Lens

Includes Lens

Yes

Focus

Manual

Aperture

f/2.43

Focal Length

12.81 to 16.74 mm

Lens Shift

No

Throw Distance

Standard Throw: 3.3 to 26.6' / 1 to 8.1 m

Throw Ratio

1.21 to 1.59:1 (100" Screen Size @ 11.5' / 3.5 m)

Projection Size

30 to 300" / 0.8 to 7.6 m

Features

Keystone Correction

Auto/Manual: Vertical/Horizontal ±30°

HDR Support

Yes: HDR10 / Hybrid Log Gamma

Zoom

Yes: 2x Digital / Manual 1.3x Optical

Multi-Input Support (PIP/PBP)

No

Ceiling Mountable

Yes

Front/Rear Projection

Front and Rear

Built-In Speakers

Yes: 1x 10 W

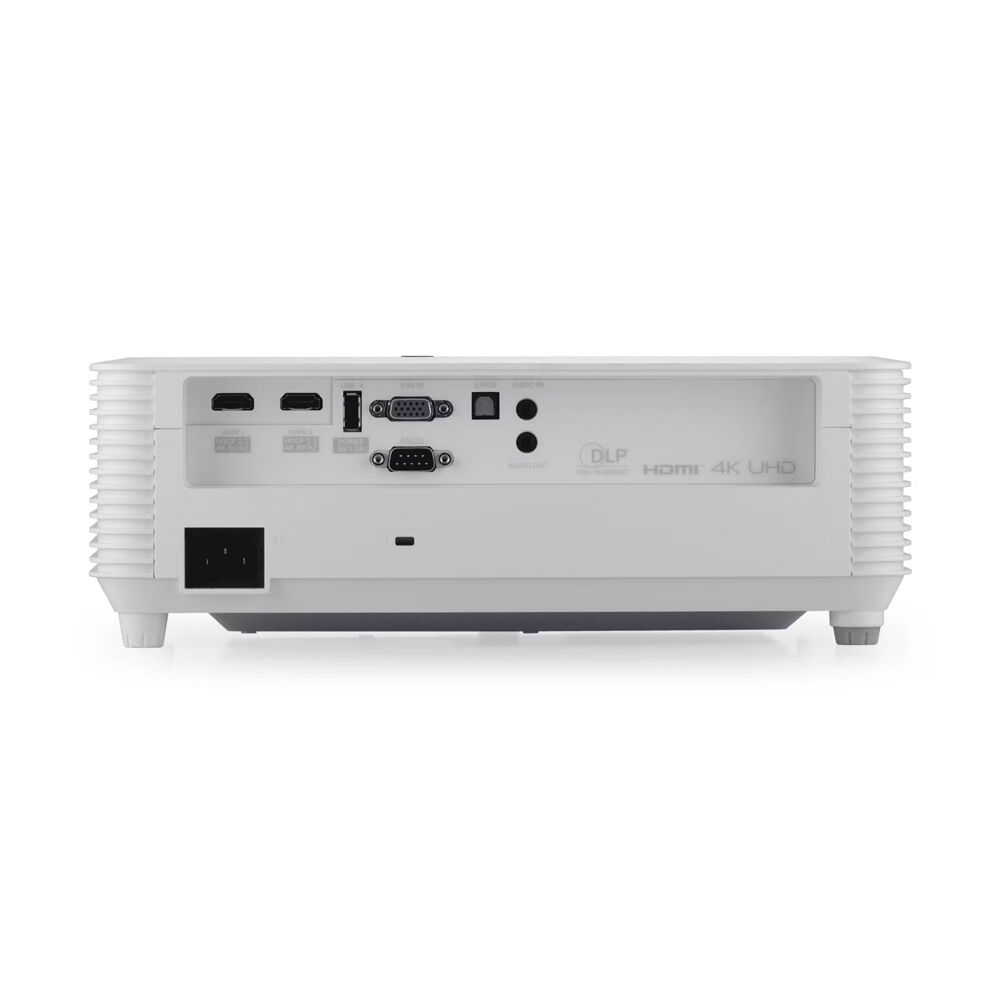

Input/Output Connectors

Audio/Video I/O

2x HDMI 2.0 Audio/Video Input
1x VGA Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x TOSLINK (Optical) Audio Output
1x 1/8" / 3.5 mm Mini Audio Output

Other I/O

1x USB-A (Power)
1x DE-9/DB-9 (RS-232) Input

HDCP Support

Yes: Version 2.2

Media/Memory Card Slot

No

Hardware

Mobile App Compatible

No

Wireless

Wi-Fi (via Optional Adapter)

General

Light Source

Lamp (1 x UHP)

Expected Lamp Life

Low Brightness: 15,000 Hours

Fan Noise

Low Brightness: 27 dB

Security

Cable Lock Slot
Keypad Lock

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

Full Brightness: 300 W
Low Brightness: 210 W
Standby Mode (Lamp Off): < 0.5 W

Certifications

CB, CCC, CE, EAC, FCC, UKCA, cTUVus

Operating Conditions

32 to 104°F / 0 to 40°C at 10 to 80% Humidity

Dimensions (W x H x D)

12.3 x 3.8 x 9.2" / 313.0 x 96.4 x 234.0 mm

Weight

9.7 lb / 4.4 kg

Packaging Info

Package Weight

9.72 lb

Box Dimensions (L x W x H)

16.2 x 13.7 x 6.4"
