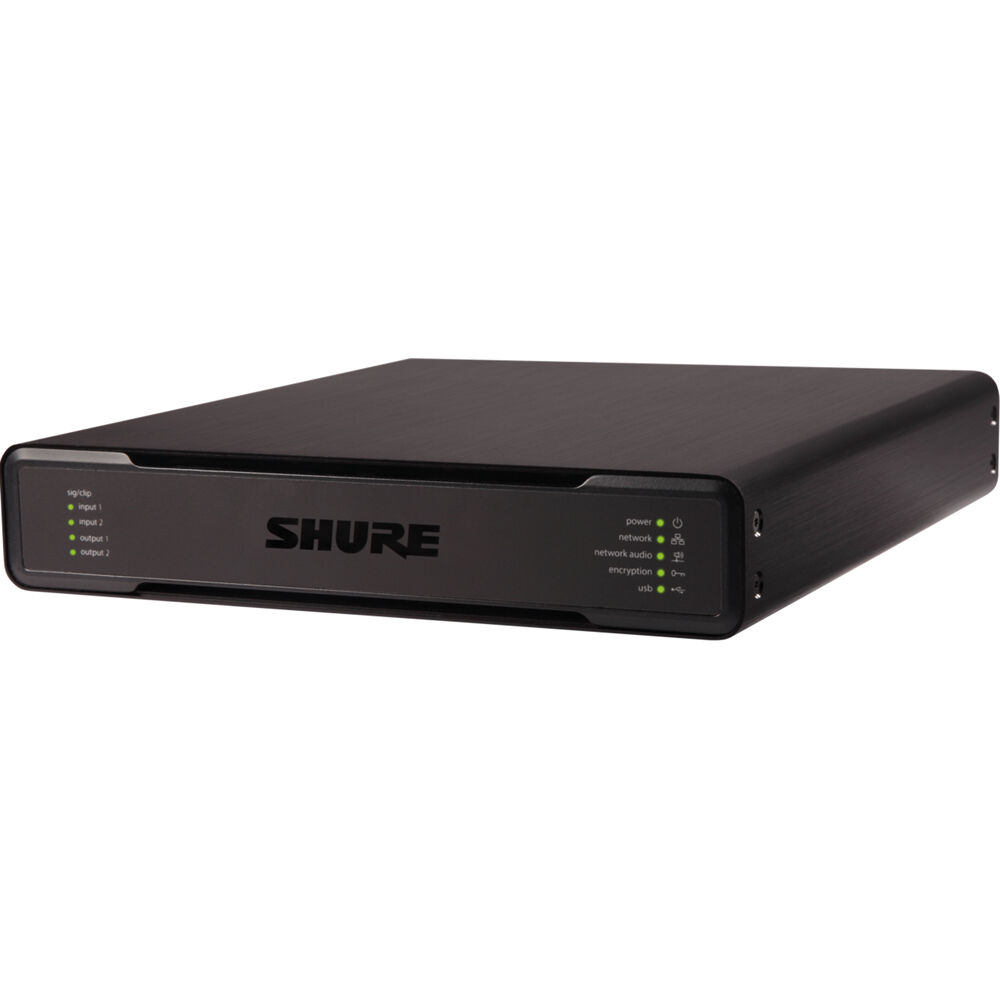

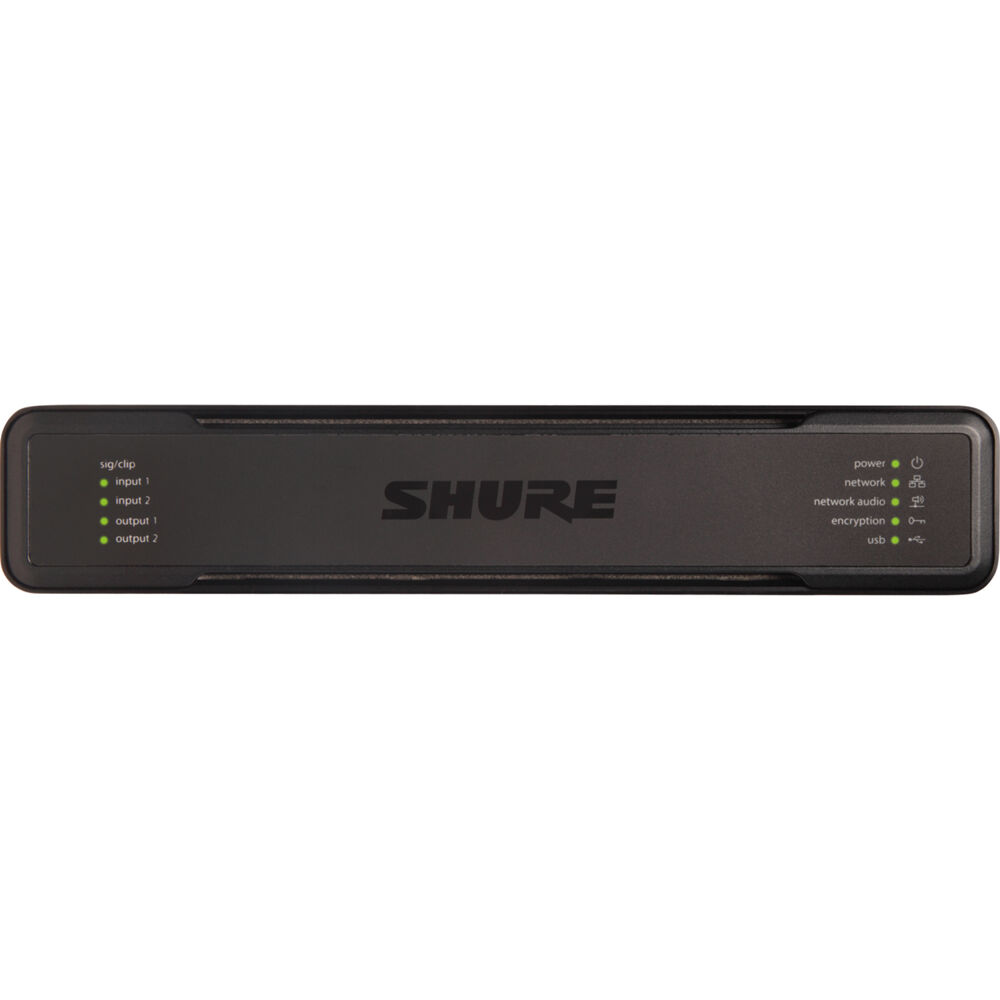

Key Specifications |
Audio |
Frequency Response |
20 Hz to 20 kHz (+1, -1.5 dB) |
Dante Digital Audio |
Sampling Rate: 48 kHz
Bit Rate: 24 Bit |
USB Audio |
Sampling Rate: 48 kHz
Bit Rate: 24 / 16 Bit |
Latency |
Firmware 4.1 and Newer:
Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms
Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms
Dante 9-10 In to Dante Out: 3.4 ms
Analog In to Analog Out: 3.8 ms
Firmware 3.1 and Older:
Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms
Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms
Dante 9-10 In to Dante Out: 1.8 ms
Analog In to Analog Out: 2.2 ms
|
Acoustic Echo Cancelling |
Tail Length: Up to 300 ms |
Analog Connections |
Block Connectors:
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 113 dB, Dante to Analog: 117 dB
Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):
Line -86 dBV, Aux -98 dBV
Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%
Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB
Input Impedance: 9.6 Kilohms
Input Clipping Level: Line +27 dBV, Aux+15 dBV
Output Impedance: 80 Ohms
Output Clipping Level: Line +20 dBV, Aux +0 dBV, Mic -26 dBV
|
Mobile |
Connector: 1/8" / 3.5 mm
Pin Assignments: Tip: Audio Input (Left), Ring 1: Audio Input (Right), Ring 2: Ground, Sleeve: Audio Output (To Phone)
Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog: 90 dB
Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%
Input Impedance: 3.7 Kilohms
Input Clipping Level: +4 dBV
Output Impedance: 1.4 Kilohms
Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV
|

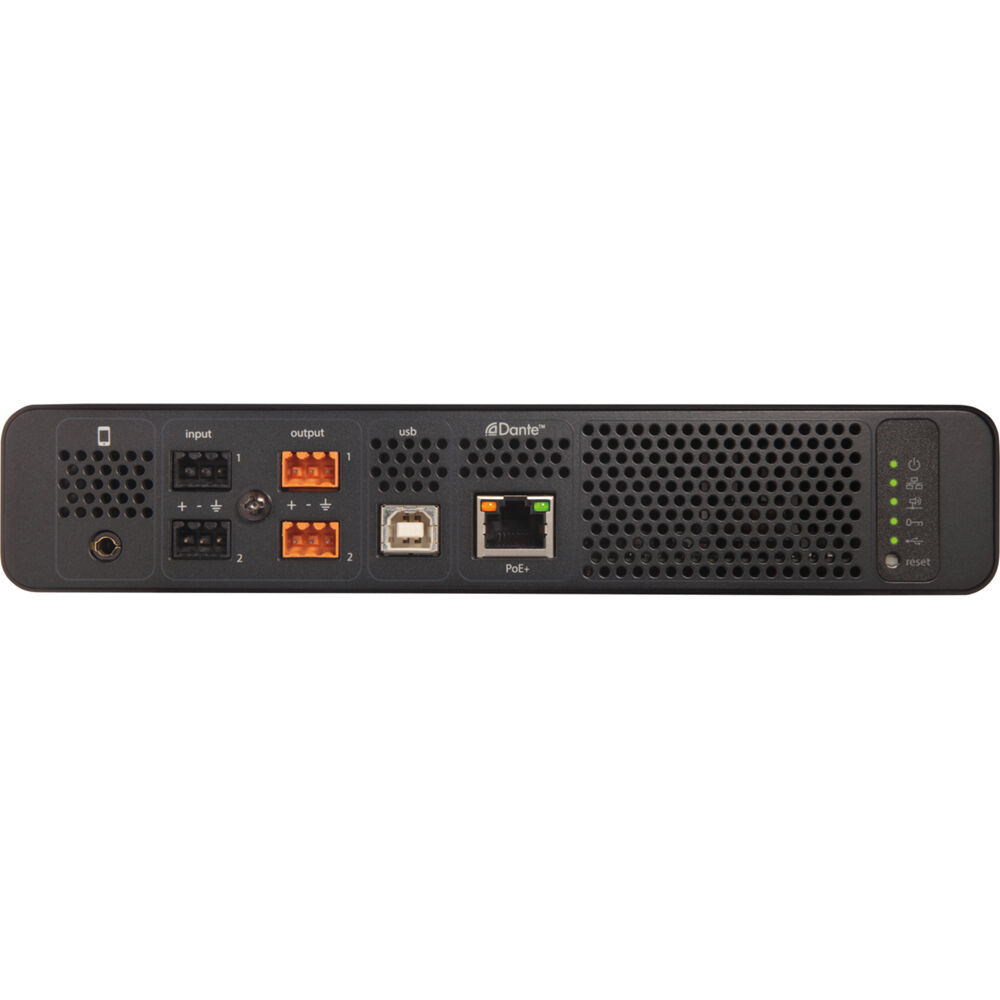

Analog Input |
2 x 3-Pin Block Connector (Active Balanced)
1 x 1/8" / 3.5mm TRRS Input |
Control Software |
Shure Designer |
Analog Output |
2 x 3-Pin Block Connector (Impedance Balanced) |
USB |
USB 2.0, Type B
Single Port Carries 2 Input and 2 Output Channels (Summed Mono) |
Network Connection |
1 x RJ45
10 x Dante Inputs
8 x Dante Outputs |
Networking |
Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended) |
Polarity |
Non-Inverting, Any Input to Any Output |
Power Requirements |
802.3 at Type 2 (PoE Plus), Class 4 |
Power Consumption |
17.5 W, Maximum |
Thermal Dissipation |
Maximum: 17.5 W (60 BTU/Hr)
Typical: 14.6 W (50 BTU/Hr)
|
Operating Temperature Range |
20 to 122° F / -6.7 to 50° C |
Storage Temperature Range |
-20 to 165° F / -29 to 74° C |
Dimensions |
1.6 x 8.3 x 8.9" / 4 x 21 x 22.6 cm |
Weight |
3.8 lb / 1.71 kg |
Packaging Info |
Package Weight |
5.6 lb |
Box Dimensions (LxWxH) |
12.6 x 11.9 x 3.3" |
