Key Specifications

Power & Amplification

Form Factor

Tabletop (1U Rackmount with optional hardware)

Rated Output

12 W × 1 Channel

Output Voltage/Impedance

25 V / 70 V / 100 V (Switchable)

Power Consumption

25 W

Audio Processing & DSP

Integrated DSP

Yes (Compressor, Limiter, Crossover)

Audio Delay

Adjustable up to 100 ms

Frequency Response

100 Hz to 20 kHz

Connectivity & Control

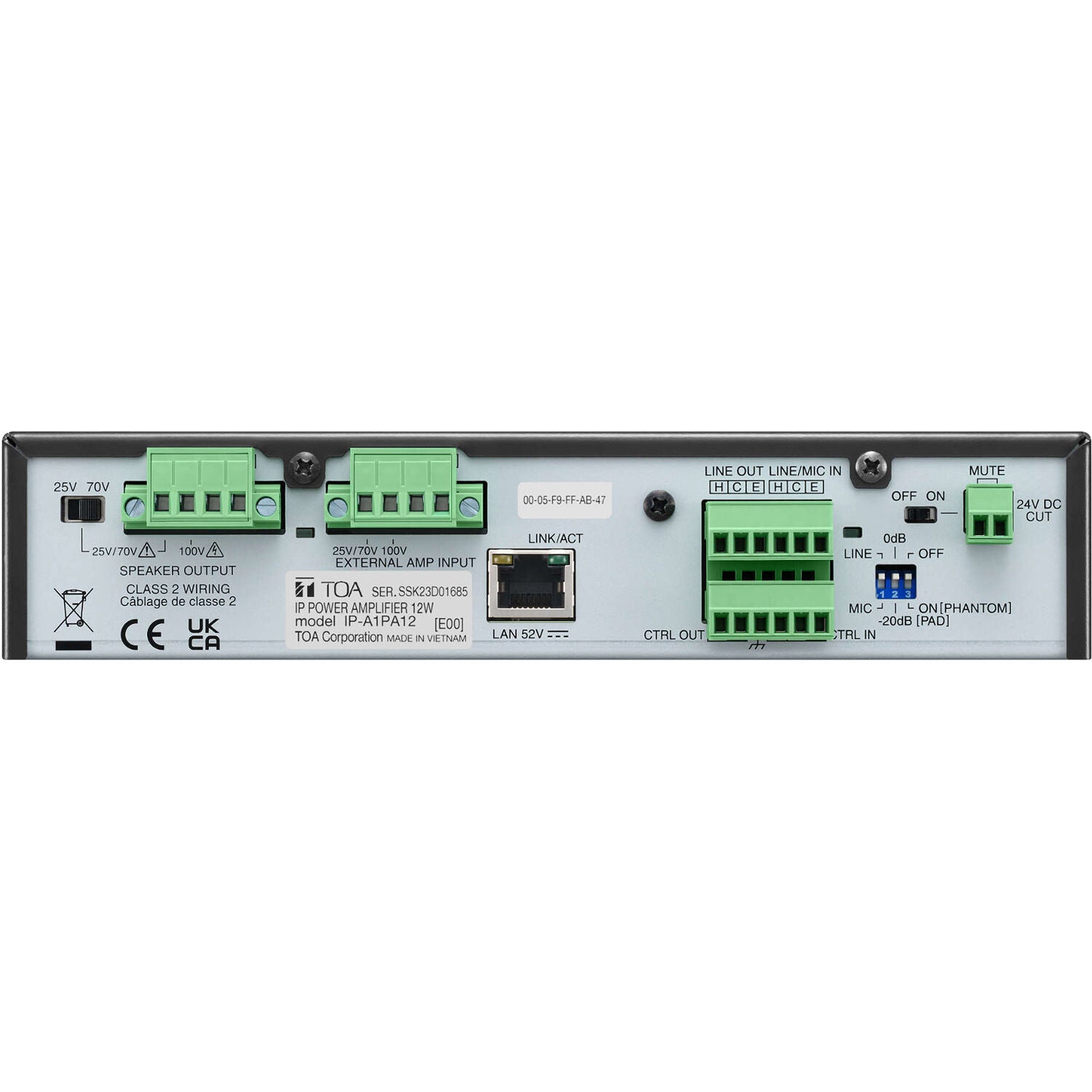

Analog Inputs

1x Line/Mic (6-pin), 1x Line (6-pin)

Speaker Output

1x 4-pin Block Terminal

Network Port

1x RJ45 (100BASE-TX)

Phantom Power

+12 V DC

Physical & Environmental

Dimensions (W x H x D)

20.8 x 4.3 x 8.1 cm (8.2 x 1.7 x 3.2")

Weight

1 kg (2.1 lb)

Operating Temperature

-30 to 55 °C (-22 to 131 °F)

Certifications

UL Rated
