Key Specifications

Network & Power

Power Source

PoE (IEEE802.3af Class 3)

Power Consumption

2.5 W

Network Interface

100BASE-TX, RJ45, Auto MDI/MDI-X

Audio Codecs

Opus, G.711u/a, G.722

Network Protocols

SIP, HTTPS, SRTP, RTSP, ONVIF, IGMPv3, NTP

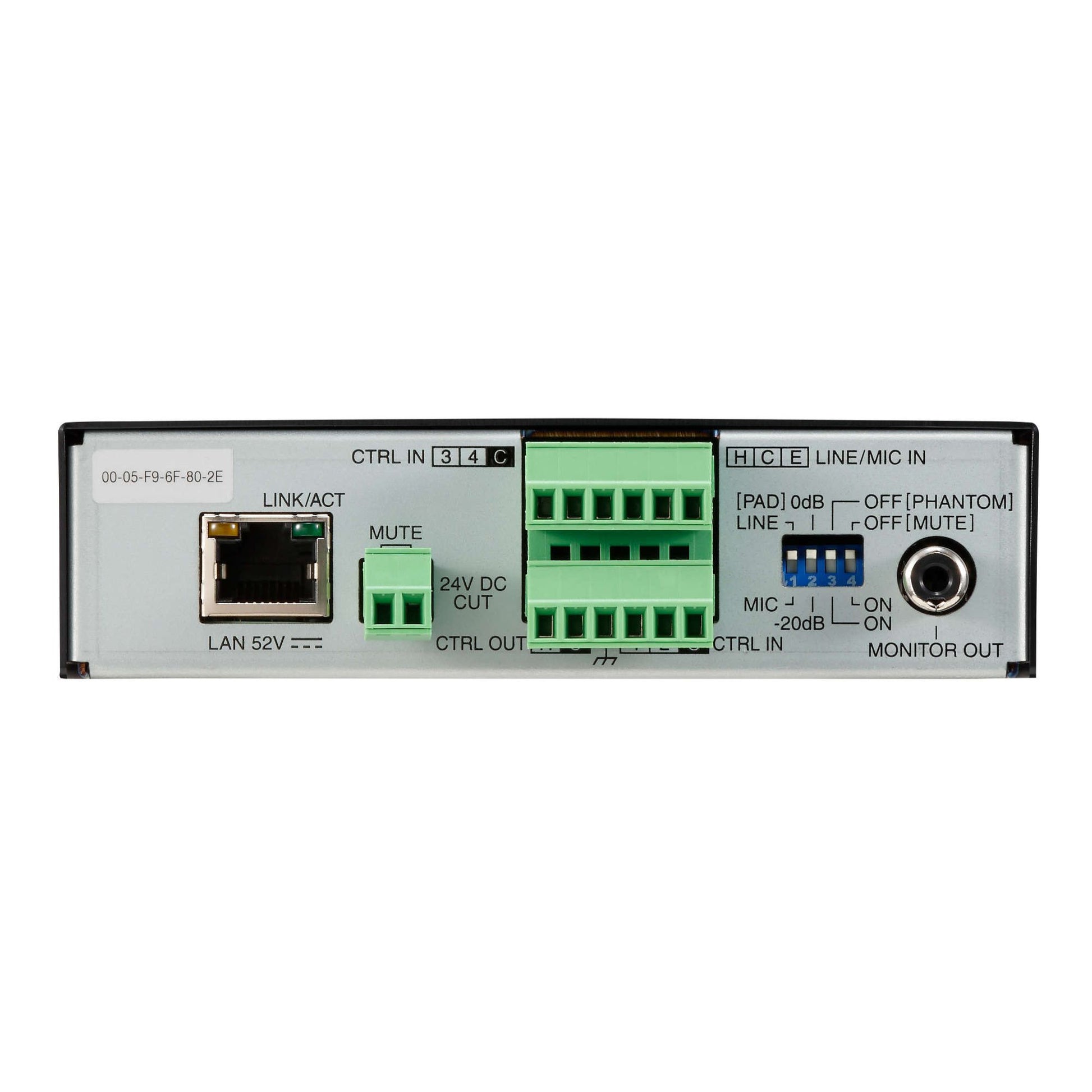

Audio I/O & Interface

Audio Input

1x Balanced (LINE/MIC Selectable), 12V Phantom

Input Functions

-20 dB PAD, Volume Adjustable (6-pin Terminal)

Monitor Output

1x RCA Pin Jack (Unbalanced, 600 Ω or less)

Audio Delay Time

Minimum 100 ms

Control & Logic

Control Inputs

4 Channels (No-voltage make contact)

Control Output

1 Channel (Open collector, 30V DC / 150mA)

Mute Control Input

1 Channel (24V DC cut-off signal)

Scheduler / Events

Max. 2000 settings / Triggered via Control Input

Physical & Environmental

Dimensions (W x H x D)

126 × 33 × 80 mm (4.96 × 1.3 × 3.15")

Weight

390 g (0.86 lb)

Operating Temp

-30 °C to +55 °C (-22 °F to 131 °F)

Finish

Surface-treated Steel Plate, Black Paint
