IP-A1SC15

124 dB max. SPL
15 W (PoE+) / 8 W (PoE) built-in amplifier
Operating temperature from -30 °C to +55 °C
IP66 rating for outdoor installations
API (HTTP commands)
Audio file storage (20 files, total 80 MB, WAV/MP3)
Individual volume level adjustment to each audio source to ensure uniform and harmonized output
Different playback programs (repeat, duration, weekly timer)

₱37,000.00 VAT INC.

₱37,000.00

UNIT: PIECE/S

Product Code: SKU:TOA-IPA1SC15-CHN-344

124 dB max. SPL
15 W (PoE+) / 8 W (PoE) built-in amplifier
Operating temperature from -30 °C to +55 °C
IP66 rating for outdoor installations
API (HTTP commands)
Audio file storage (20 files, total 80 MB, WAV/MP3)
Individual volume level adjustment to each audio source to ensure uniform and harmonized output
Different playback programs (repeat, duration, weekly timer)

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

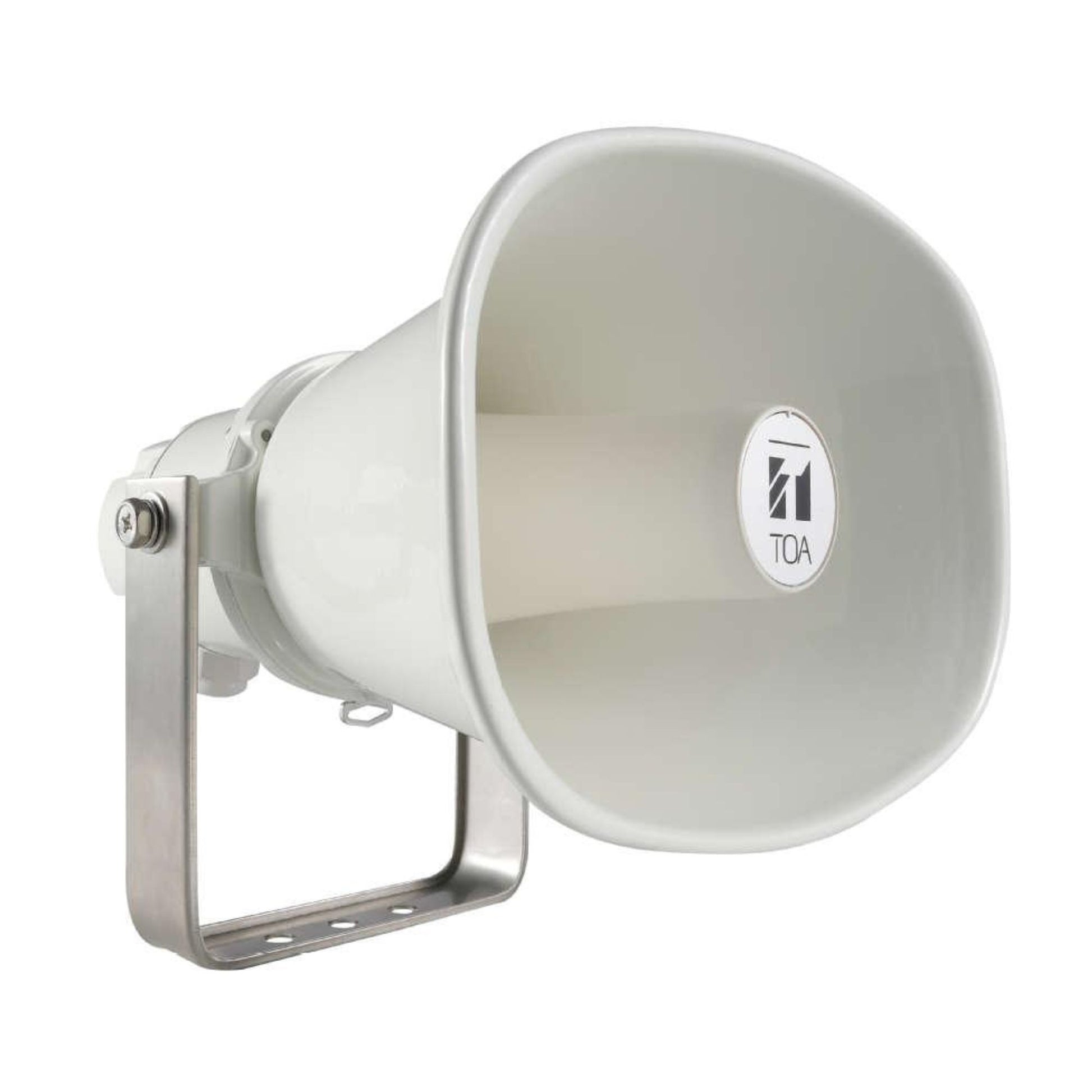

TOA IP-A1SC15

Key Specifications
Product Model	TOA Electronics IP-A1SC15
Product Type	IP Horn Speaker (PoE+ Powered)
Power Source	PoE+ (IEEE802.3at) or PoE (IEEE802.3af)
Rated Output	15 W (PoE+) / 8 W (PoE)
Acoustic & Network Performance
Sound Pressure Level	112 dB (1W, 1m) \| 124 dB Max SPL
Frequency Response	280 Hz to 12.5 kHz
Network Protocols	SIP (RFC3261), HTTP, RTP/RTSP, TCP/IP, UDP
I/O & Connectivity
Network Interface	1x 100BASE-TX (RJ-45)
Control I/O	2x Inputs (No-voltage) \| 1x Output (Open collector)
Audio Input	1x Input (Line/Mic selectable)
Physical & Environmental
Protection Rating	IP66 (Dust/Waterproof)
Operating Temp	-30 °C to +55 °C (-22 °F to 131 °F)
Dimensions (WxHxD)	222 x 211 x 276 mm
Net Weight	1.4 kg (3.09 lbs)
