Key Specifications

Number of Supported Cameras

255 Channels

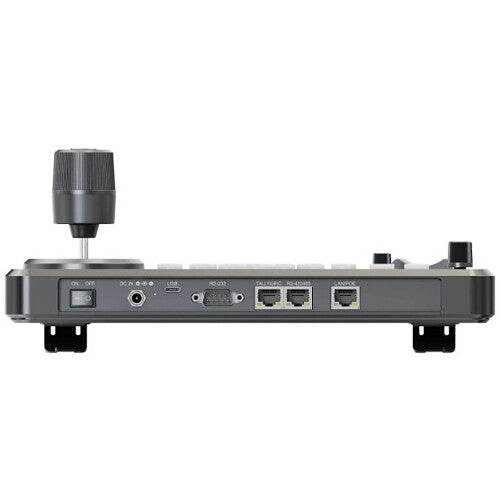

Control I/O

1x RJ45 (IP Control, LAN, Pelco-D, Pelco-P, VISCA) Input/Output

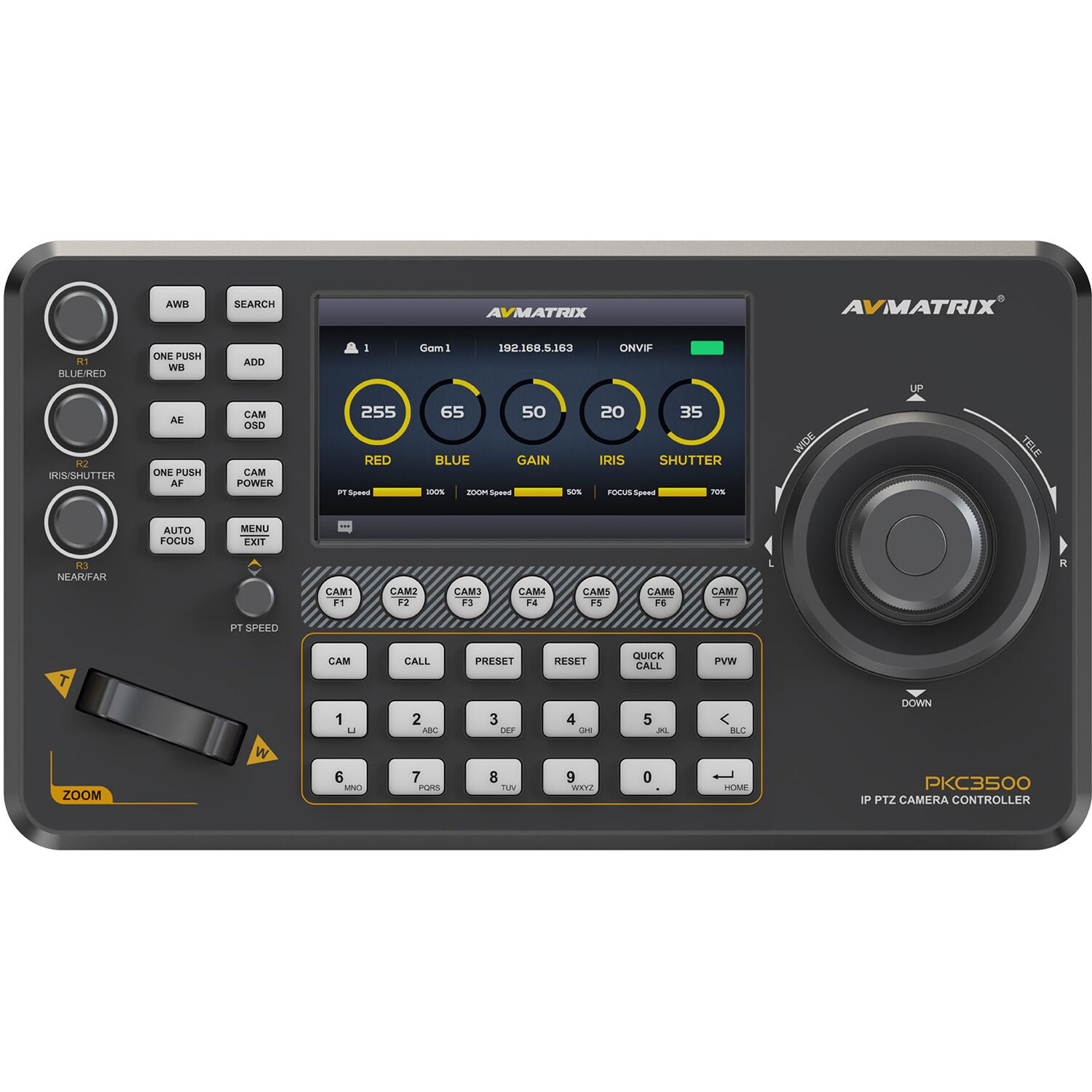

Controls

28x Buttons
3x Knobs
1x Zoom Rocker
1x 3-Axis, Pan/Tilt, Zoom Joystick

Touchscreen

No

PoE Support

Yes

Power Consumption

8 W

Security Lock Support

No

General

Number of Supported Cameras

255 Channels

Supported Control Protocols

IP

Control I/O

1x RJ45 (IP Control, LAN, Pelco-D, Pelco-P, VISCA) Input/Output

Controls

28x Buttons
3x Knobs
1x Zoom Rocker
1x 3-Axis, Pan/Tilt, Zoom Joystick

Presets

255 via IP

Display

Panel Type

LCD

Size

5"

Touchscreen

No

Power

PoE Support

Yes

Power Connectors

1x Barrel / Coaxial

Power Consumption

8 W

Input Power

7 to 24 VDC

Physical

Operating Conditions

-4 to 140°F / -20 to 60°C

Storage Conditions

-4 to 158°F / -20 to 70°C

Security Lock Support

No

Dimensions

11.1 x 6.2 x 1.9" / 282 x 158 x 47 mm
11.1 x 6.2 x 4" / 282 x 158 x 100.5 mm (Including Joystick)

Weight

2.4 lb / 1.09 kg
