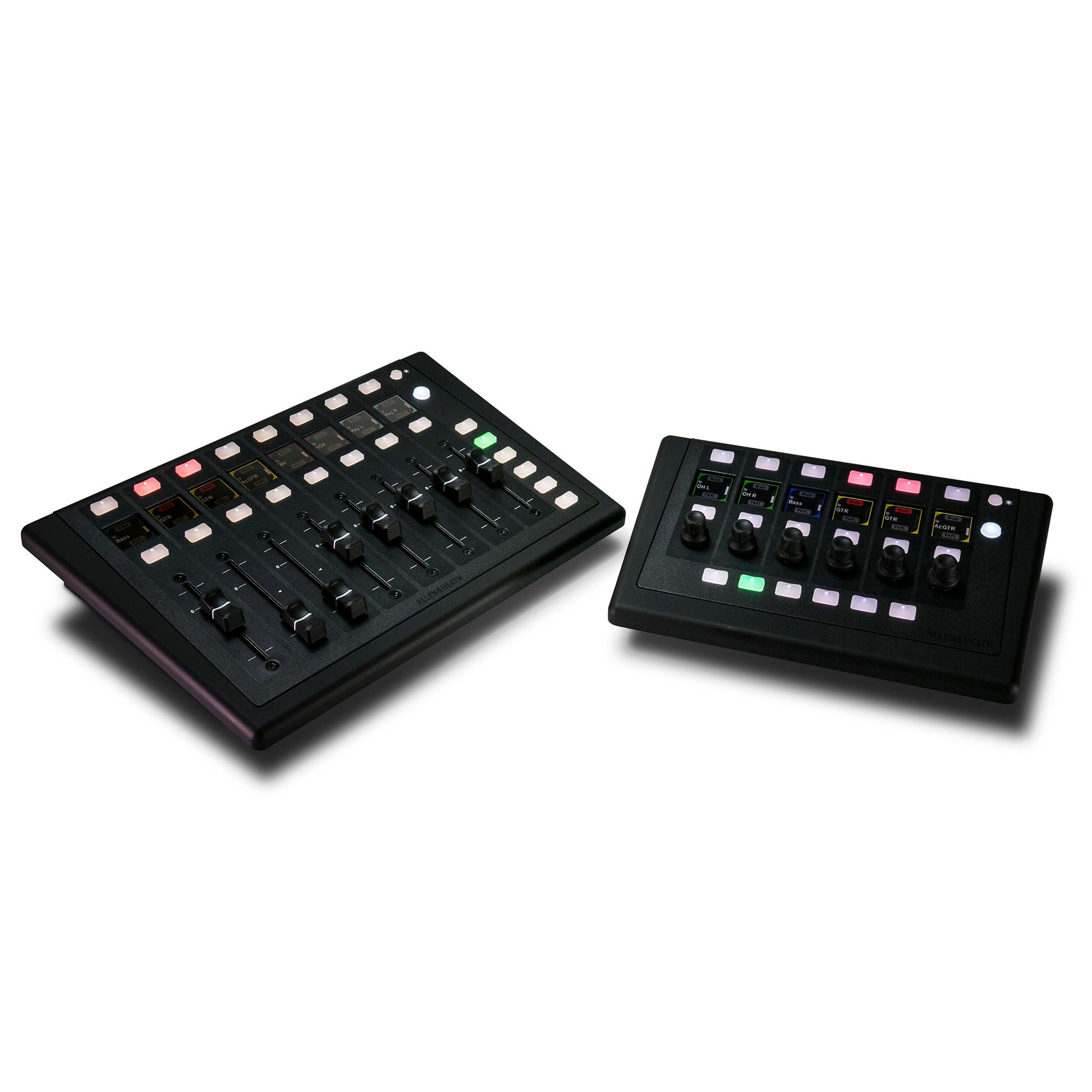

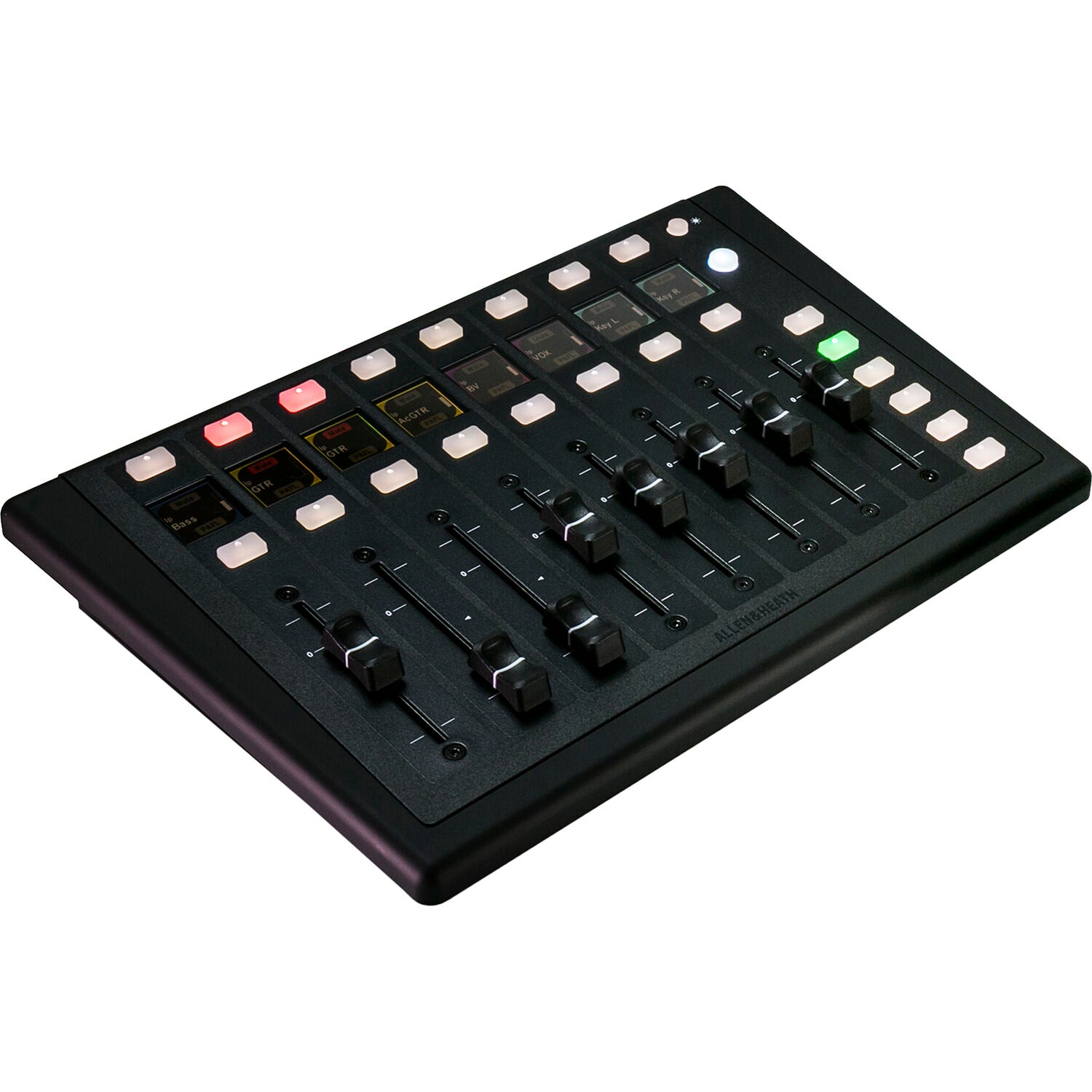

The Allen & Heath IP8 is a compact and portable remote controller for AHM matrix processors or dLive and Avantis mixing systems—ideal for many install and live sound applications. It features 8 motorized faders, 8 LCD displays, 23 backlit softkeys and a dimmable preset control for all displays. The faders are fully assignable, configured individually, or part of a vertical strip. There are 6 layers of control accessed via softkeys, allowing control of 48 individual channels.

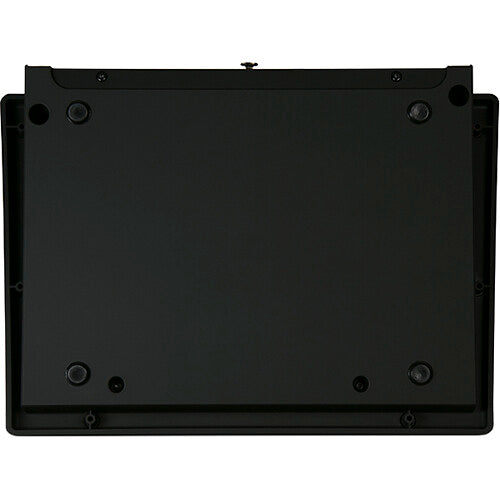

Fast Ethernet connection is via a locking Neutrik EtherCon connector on the back panel. The IP8 can be connected directly to the dLive Mixrack/Surface, Avantis mixer, or AHM-64 Matrix Processor via standard Cat 5 data infrastructure. Alternatively, the controller can be networked with other controllers, computers, and third-party devices using an Ethernet switch. The IP8 controls and functions are programmed using the AHM System Manager or dLive Director software (Mac/Windows), or via an Avantis mixer or dLive Surface. The unit is powered by an external 12 VDC PSU or over Ethernet (PoE+).
ALLEN&HEATH IP8/X
Key Specifications
Compatibility
dLive
Avantis
AHM-64
Network
Fast Ethernet 100 MB/s
Power
Power Adapter: +12 VDC, 2.5 A (Included)
PoE+: 802.3at (25.5 W at Source)
Maximum Power Consumption: 25 W
Operating Temperature Range
32 to 95°F / 0 to 35°C
Dimensions (W x D x H)
11.4 x 8 x 2.4" / 291 x 205 x 61 mm
Weight
5.5 lb / 2.5 kg
Packaging Info
Package Weight: 7 lb
Box Dimensions (L x W x H): 14.3 x 13.7 x 5.7"
