Key Specifications

Power

Rated Watts (2 Channels at 2 Ohms)

1100 W 20 ms repetitive burst / 900 W 1% THD, both channels driven at 1 kHz

Rated Watts (2 Channels at 4 Ohms)

600 W 20 ms repetitive burst / 570 W 1% THD / 530 W 0.15% THD, both channels driven at 1 kHz

Rated Watts (2 Channels at 8 Ohms)

370 W 20 ms repetitive burst / 325 W 1% THD / 300 W 0.15% THD, both channels driven at 1 kHz

Minimum Load Impedance

2 Ohms

Frequency Response

10 Hz to 30 kHz; ±3 dB at 1 W, 8 Ohms
20 Hz to 20 kHz (2 Channels × 2 Ohms): <0.25% at 650 W 20 Hz to 4 kHz, decreasing to 530 W at 20 kHz, both channels driven
20 Hz to 20 kHz (2 Channels × 4 Ohms): <0.15% at 470 W 20 Hz to 10 kHz, both channels driven
20 Hz to 20 kHz (2 Channels × 8 Ohms): <0.15% at 260 W 20 Hz to 10 kHz, both channels driven

Input CMRR

> -69 dB at 1 kHz

Voltage Gain

× 60 (+35 dB)

Crossover

100 Hz switchable 2nd order high pass and 3rd low pass per channel

Crosstalk

> -70 dB at 1 kHz at 250 W power at 8 Ohms

Hum and Noise

> -105 dB, "A" weighted referenced to rated power at 4 Ohms

Slew Rate

> 12 V/μs

Damping Factor

> 170:1 at 20 Hz to 1 kHz at 8 Ohms

Input Sensitivity

.775 V ±3% for 1 kHz 4-Ohm rated power
.68 V ±3% for 1 kHz 2-Ohm rated power

Input Impedance

15 kOhms balanced
7.5 kOhms unbalanced

Current Draw

At 1/8 Power in VA (W): 540 (315) at 2 Ohms, 370 (185) at 4 Ohms, 240 (115) at 8 Ohms
At 1/3 Power in VA (W): 1250 (760) at 2 Ohms, 750 (425) at 4 Ohms, 460 (240) at 8 Ohms

Idle Consumption

90 VA, 40 W

Cooling

Temperature dependent variable speed 3.1" / 80.0 mm DC fan

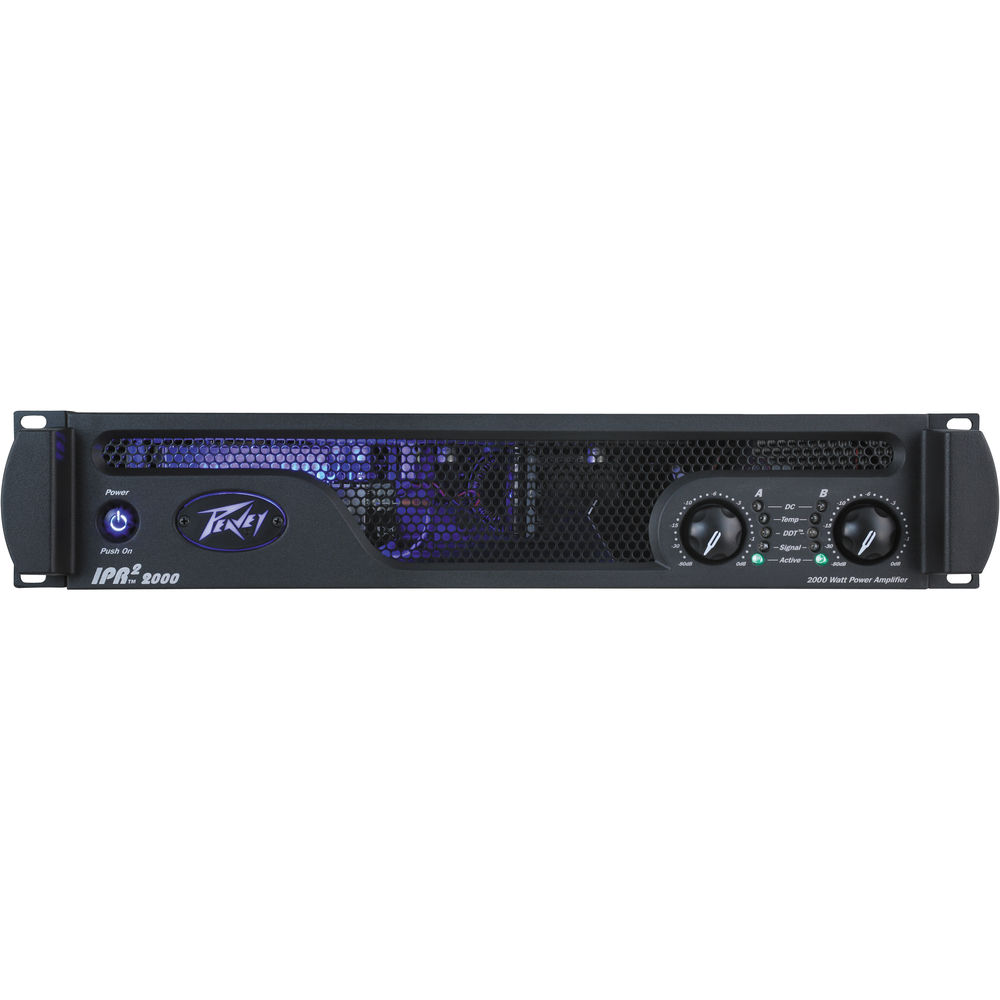

Controls

2 × front panel attenuators
Crossover select switch for HPF, Normal, and LPF

Indicator LEDs

5 × LED Indicators per Channel: Active, Signal, DDT, Temperature, and DC

Protection

Thermal, DC, subsonic, incorrect loads, under voltage, and over voltage

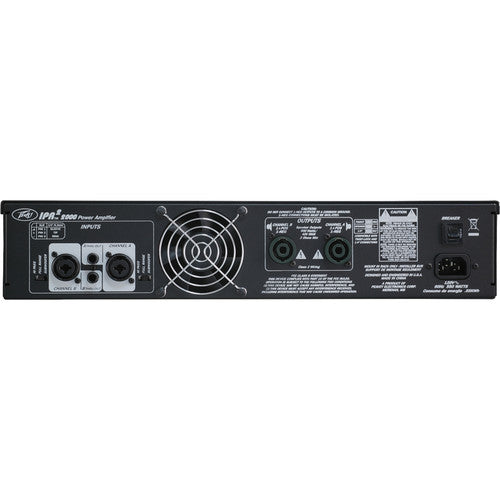

Connectors

Inputs: Dual Combination XLR-1/4" / 6.35 mm
Outputs: Dual 1/4" / 6.35 mm signal patch, dual twist lock connectors

Construction

0.062" / 1.575 mm thick aluminum

Dimensions

19.0 × 3.5 × 10.5" / 482.6 × 88.9 × 266.7 mm
Handle: 0.6" / 15.2 mm

Weight

7.12 lb / 3.23 kg

Packaging Info

Package Weight

12.2 lb

Box Dimensions (LxWxH)

22 × 15 × 7"
