Key Specifications

Power

Rated Power

2ch × 2 Ω: 3,230 W 20ms repetitive burst / 2,530 W 1% THD both channels driven @ 1 kHz
2ch × 4 Ω: 1,985 W 20ms repetitive burst / 1,700 W 1% THD / 1,470 W 0.15% THD, both channels driven @ 1 kHz
2ch × 8 Ω: 1,175 W 20ms repetitive burst / 1,025 W 1% THD / 880 W 0.15% THD, both channels driven @ 1 kHz

RMS Power

1 × 2,900 W at 2 Ω
1 × 1,780 W at 4 Ω
1 × 975 W at 8 Ω
2 × 2,525 W at 2 Ω
2 × 1,510 W at 4 Ω
2 × 890 W at 8 Ω

Minimum Load Impedance

2 Ω

RMS Voltage Swing

105 V (maximum)

Frequency Response

20 Hz to 22 kHz; +/- 0.5 dB at 1 W
20 Hz to 20 kHz 2ch × 2 Ω: <0.5% @ 2,250 W 20 Hz to 4 kHz, decreasing to 1,640 W @ 20 kHz, both channels driven
20 Hz to 20 kHz 2ch × 4 Ω: <0.15% @ 1,400 W 20 Hz to 10 kHz, decreasing to 1,350 W @ 20 kHz, both channels driven
20 Hz to 20 kHz 2ch × 8 Ω: <0.15% @ 860 W 20 Hz to 4 kHz, increasing to 1,000 W @ 20 kHz, both channels driven

CMRR

Input: > -75 dB @ 1 kHz

Voltage Gain

× 40 (+32 dB)

Crossover

100 Hz switchable 2nd order high pass and 3rd low pass per channel

Crosstalk

> -60 dB @ 1 kHz @ 700 W power @ 8 Ω

Hum and Noise

> -105 dB, "A" weighted referenced to rated power @ 4 Ω

Slew Rate

> 12 V / μs

Damping Factor

> 210:1 @ 20 Hz to 1 kHz @ 8 Ω

Input Sensitivity

1.95 V +/- 3% for 1 kHz 4 Ω rated power
1.83 V +/- 3% for 1 kHz 2 Ω rated power

Input Impedance

20 kΩ, balanced
10 kΩ, unbalanced

Current Draw

@ 1/8: 1,435 VA (890 W) @ 2 Ω, 920 VA (525 W) @ 4 Ω, 625 VA (335 W) @ 8 Ω
@ 1/3: 3,050 VA (2,155 W) @ 2 Ω, 1,880 VA (1,200 W) @ 4 Ω, 1,200 VA (715 W) @ 8 Ω

Idle Consumption

195 VA, 90 W

Cooling

3 temperature-dependent variable speed fans

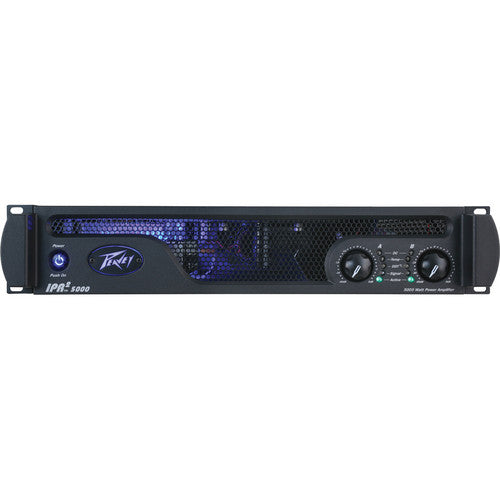

Controls

2 front-panel attenuators
Crossover select switch for HPF, Normal and LPF

LED Indicators

5 LED indicators per channel: Active, Signal, DDT, Temperature and DC

Protection

Thermal, DC, subsonic, incorrect loads, under and over voltage

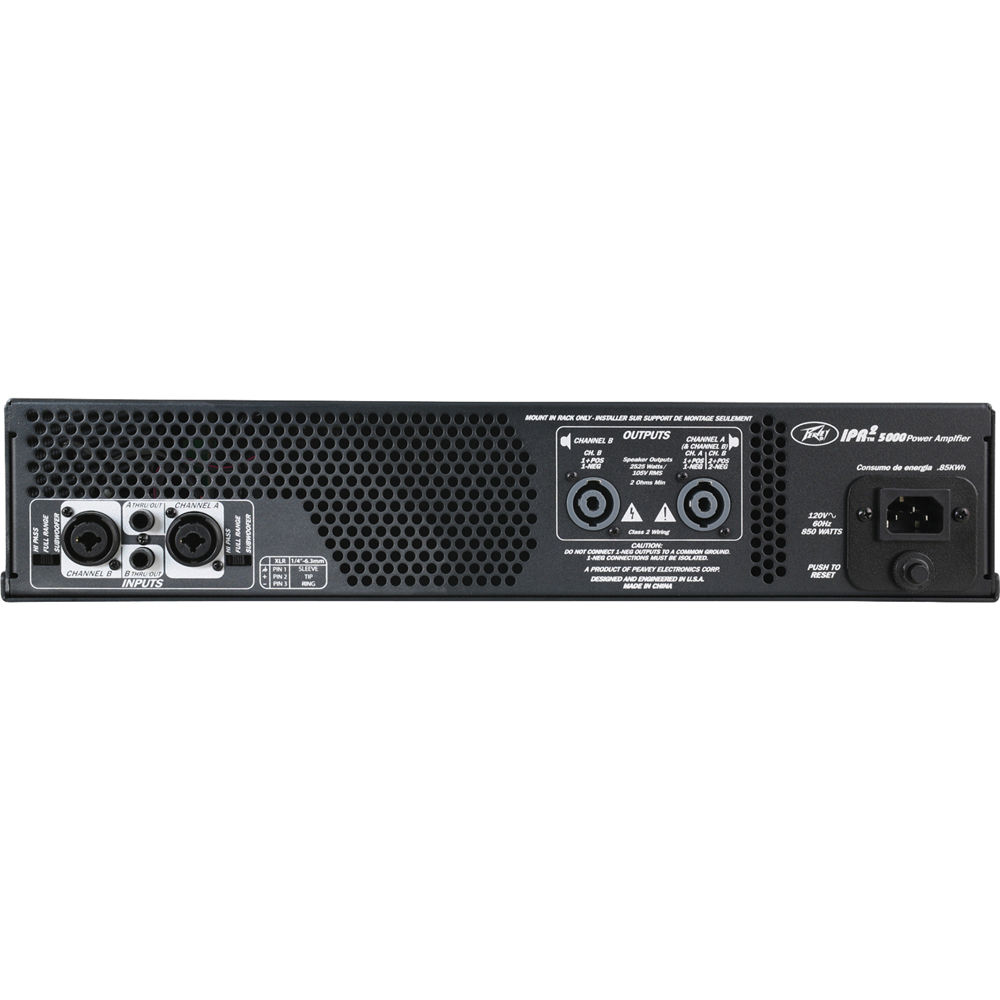

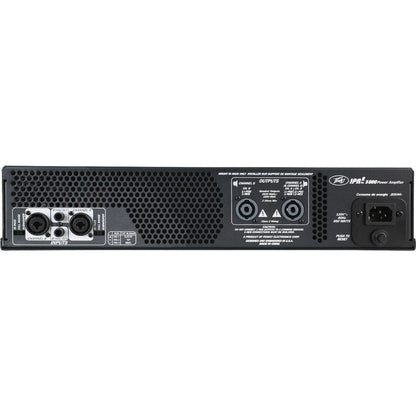

Connectors

Inputs: Dual combination 1/4" XLR
Outputs: 2 × 1/4" thru, 1 × 2-pin & 1 × 4-pin twist-lock connector

Construction

0.062" (0.16 cm) thick aluminum

Dimensions

3.5 × 19.0 × 17.0" (9.0 × 48.3 × 43.2 cm)
Handle: 0.6" (1.5 cm)

Weight

13.6 lb (6.2 kg) (without power cord)

Packaging Info

Package Weight

21 lb

Box Dimensions (LxWxH)

21.6 × 20.9 × 7.1"
